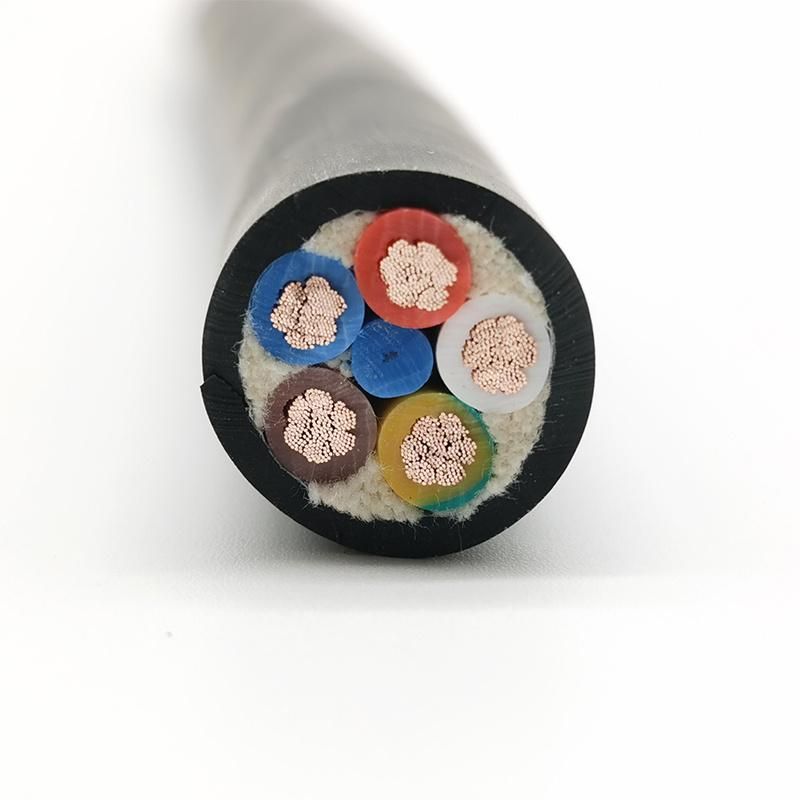

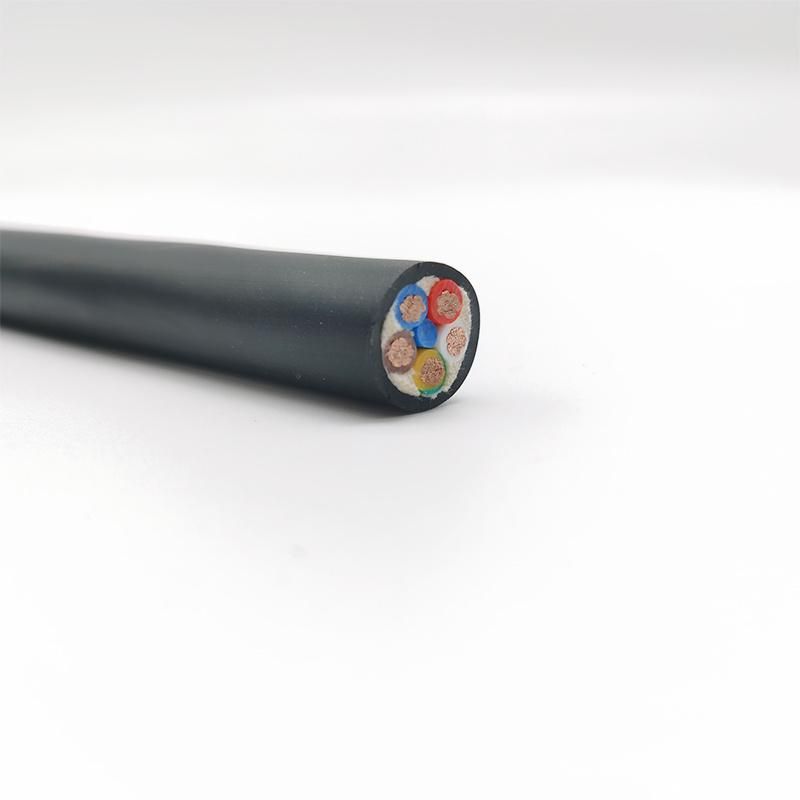

TUV Certified N2xrh Lsoh Multi Core Power Cable

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：Lsoh
  • Insulation Material：XLPE
  • Material Shape：Round Wire

Base Info

  • Model NO.：N2XRH
  • Range of Application：LSOH
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multi Core
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemN2XRHConductorClass 2 stranded copper conductorInsulationXLPEBeddingLSZHArmourSWAOuter SheathLSZHVoltage Rating Uo/U 0.6/1kVMinimum Bending Radius1.5mm2 to 16mm2 - Fixed: 6 x overall diameter
25mm2 and above - Fixed: 8 x overall diameterTemperature Rangefixed  -20°C up to +90 °C ColorOptionalCertificationCE TUVApplicationEuropean reference for a low voltage multi-core LSZH power cable with steel wire armour (SWA). Same construction as the British Standard BS6724 cable. Power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting. For installation where fire, smoke emission and toxicfumes create a potential threat to life and equipment.
