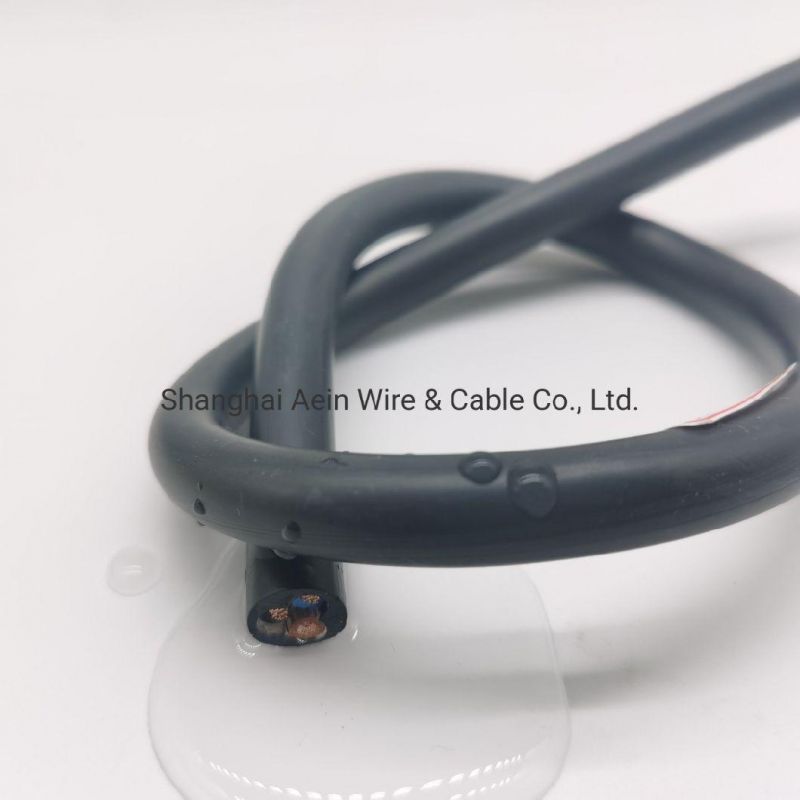

H07rn-8-F Flexible Rubber Cable Water-Proof 3X4mm2 450/750V

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Submersed Pumps
  • Conductor Material：Copper
  • Sheath Material：Rubber
  • Insulation Material：Rubber

Base Info

  • Model NO.：H07RN-8-F Flexible Rubber Cable
  • Material Shape：Round Wire
  • Range of Application：Submersed Pumps
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemH07RN-8-F Flexible Rubber CableConductorCopper wire bareInsulationRubberOuter sheathRubberVoltage Rating450/750VTemperatureFixed: -40°C to +60°C Flexed: -15°C to +60°CColorOptionalApplicationFor installation in dry, damp or wet environments, in workshops with explosive atmospheres: it can be immersed in fresh water up to 10m depth and it could be used as energy supply cable for submersed pumps. Not suitable for underwater power transmission or installation in a waterway or where mechanical damage might occur and cause hazard. For connections liable to moderate mechanical stresses, i.e. industrial or agricultural workshop apparatus, large boilers, heater plates, electric tools such as drills and disk saws, electric appliances, portable motors and generators on building sites; also for fixed installations along floors or shelving on temporary job sites, for connecting structural elements in lifting apparatus, machinery, etc. Suitable for applications up to 1kV for adequately protected fixed installations (i.e. inside pipes or equipment) as well as for rotor connections to lifting equipment motors.
