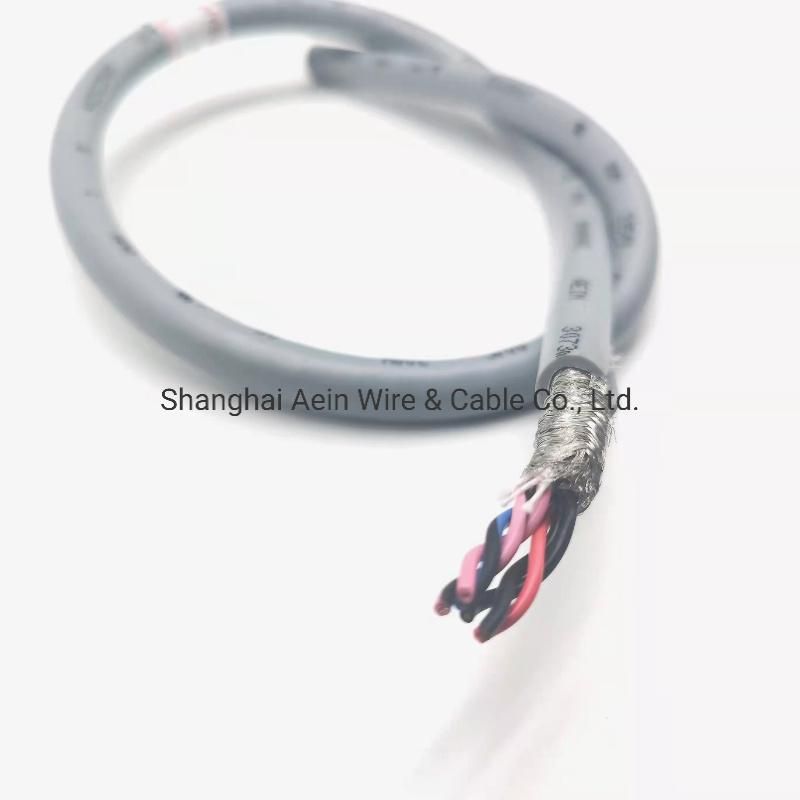

Fire Alarm Cable Halogen-Free with Electrical Function

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Signal Transmission
  • Conductor Material：Copper
  • Sheath Material：Special Halogen-Free
  • Insulation Material：Special Halogen-Free

Base Info

  • Model NO.：Fire Alarm Cable
  • Material Shape：Round Wire
  • Range of Application：Signal Transmission
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemFire Alarm CableConductorCopper wire bareInsulationSpecial halogen-free polymerOuter sheathSpecial halogen-free polymerVoltage Rating 150VTest Voltagecore/core: 500 V
core/shield: 2000 VTemperaturefixed installation: -30°C to +80°CColorOptionalApplicationFire alarm and emergency cable JE-H(St)H...Bd-484 is used for signal transmission in fire alarms and ELA equipment where there is a particular need for the function and insulation performance requirements of this cable. The halogen-free and flame retardant insulation and sheath mixture comforms to the EC-/DIN norms. The cable is preferably used for signal transmission in dry and damp rooms as well as on protected walls outdoors.
