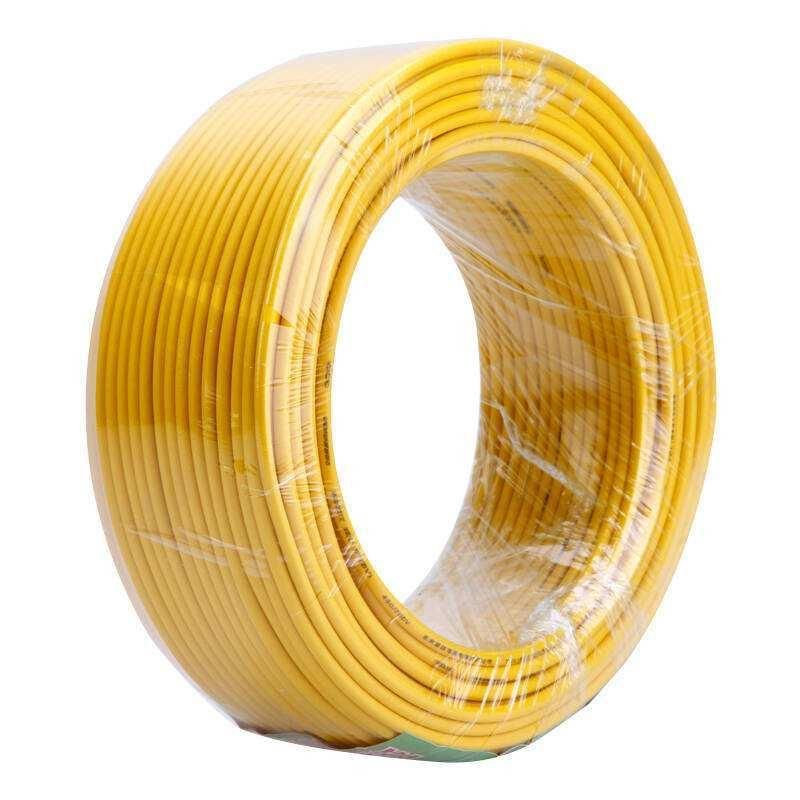

• Model NO.：cable thw
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CCC
• Brand：Hongda Cable
• Dielectric Strength：2.5kv
• Transport Package：100m,Roll, 305m,Roll
• Specification：2.5mm2, 4mm2, 6mm2, 10mm2
• Trademark：Hongda or OEM
• Origin：China(Mainland)
• HS Code：8544492900
• Production Capacity：80km,Day

Nominal operating voltage Uo / U (Um)450/750 VDielectric strength2.5kVDielectric Rigidity Time Vac to insulation5min
CHARACTERISTICS OF USEMaximum operating temperature90 ° CEmergency overload temperature130 ° CMaximum short-circuit conductor temperature250 ° C
cable thw DIMENSIONNameSectionDiam. Conductor (mm)Insulation Thickness (mm)Cable Diameter (mm)Approx. Weight (kg/km)THW-90 2,5 mm22.51.90.83.632THW-90 4 mm242.40.84.147THW-90 6 mm263.00.84.767THW-90 10 mm2103.71.16.0111
