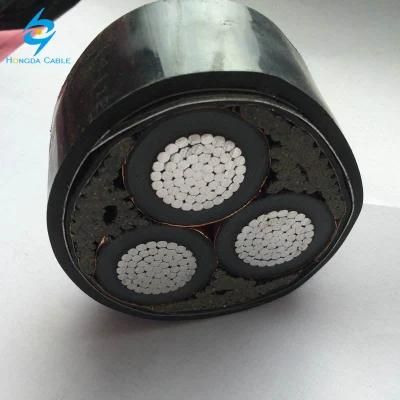

• Model NO.：0.6,1kv 3core Cooper core XLPE insulation PVC jac
• Material Shape：Round Wire
• Range of Application：Underground
• Certification：ISO9001, CE, CCC, RoHS
• Brand：Hongda
• Relate Voltage：0.6,1kv
• Key Word：Power Cable
• Transport Package：Wooden Drum and Steel Wooden Drum
• Specification：XLPE power cable
• Trademark：hongda cable
• Origin：Henan China
• Production Capacity：500000

U-1000 R2V - Technical data and testsStandards: NF C 32-321 C32-321/A1; IEC 60502-1 NF EN 60332-1-2; NF C 15-100Nominal voltage U0/U: 0,6/1 kVTest voltage (50 Hz): 4 kVMaximun voltage Um: 1,2 kVMaximun operating temperature: +90° CMaximun short circuit temperature: +250° CMin. operating temperature
(without mechanical shocks): -25° CMinimum installation and use temp.: -10° CMinimum bending radius per
D cable diameter (in mm): 6 x DMaximum pulling stress: 5 kg/mm² (of copper cross section)Core colourssingle core : black
two cores : blue-brown
three  cores : brown-black-blue  (1,5/2,5 mmq); brown-black-gray (4 mmq)  or Y/G-blue-brown)
four cores : blue-brown-black-gray (or Y/G instead blue)
five cores : blue-brown-black-gray-Y/G (or black instead Y/G)Sheath colour: blackMulticores7x1.51.40.71.4313.512.122015227x2.51.80.71.43157.4131020.52810x1.51.40.71.4316.512.13101318.510x2.51.80.71.43197.414401824.512x1.51.40.71.431712.137012.51812x2.51.80.71.4319.57.41525172414x1.51.40.71.431812.1430121714x2.51.80.71.4320.57.41610162219x1.51.40.71.4319.512.156010.51519x2.51.80.71.4322.57.4174514.519.524x1.51.40.71.4322.512.1710101424x2.51.80.71.4325.57.411000131830x1.51.40.71.432412.1806912.530x2.51.80.71.4327.57.4111351216.537x1.51.40.71.4325.512.197281237x2.51.80.71.4329.57.4113501115.5
