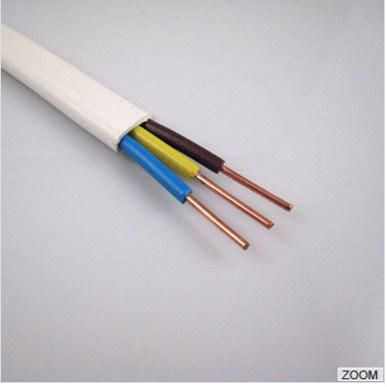

Multi-Core Flexible Cables-6241y/6242y/ 6243y to BS 6004
YIFANG ELECTRIC GROUP INC.- Type：Insulated
- Conductor Type：Stranded
- Application：Connecting
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：PVC
Base Info
- Model NO.：6241Y BM66
- Material Shape：Round Wire
- Range of Application：Flame Retardant
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE
- Brand：Yifang
- Insulation Option：Lshf
- Sheath Option：Lshf
- Transport Package：Roll
- Specification：1.5mm2 2.5mm2 4.0mm2
- Trademark：Yifang Cable
- Origin：Zhengzhou, China
- HS Code：8544492100
- Production Capacity：300km,Month
Description
AWG (No of Strands/ Strand Diameter)
No. of Cores x Nominal Cross Sectional Area Nominal thickness of insulation Nominal thickness of sheath Nominal overall dimensions
Circuit protective conductor AWG
Nominal Weight kg/km
lower limit 6241Y
17
1 × 1.0
0.6
0.9
4x5.1
5.2x6.4
17
45
16
1 × 1.5
0.7
0.9
4.4x5.4
5.8x7.0
17
55

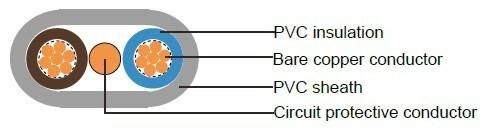

6242Y
17
2 × 1.0
0.6
0.9
4 × 7.2
4.7 × 8.6
17
68
17(7/26)
2 × 1.0
0.7
0.9
4.2 × 7.8
5.1 × 9.4
17
73
16
2 × 1.5
0.7
0.9
4.4x8.2
5.4x9.6
17
85
16(7/24)
2 × 1.5
0.7
0.9
4.5x8.4
5.6x10
17
90
14
2 × 2.5
0.8
1
5.2x9.8
6.2x11.5
16
120
14(7/22)
2 × 2.5
0.8
1
5.2x9.8
6.6x12.0
16
125
12(7/20)
2 × 4
0.8
1
5.6x10.5
7.2x13.0
16
175
10(7/18)
2 × 6
0.8
1.1
6.4x12.5
8.0x15.0
14
240
8(7/16)
2 × 10
1
1.2
7.8x15.5
9.6x19.0
12(7/20)
390
6(7/14)
2 × 16
1
1.3
9.0x18.0
11.0x22.5
10(7/18)
560

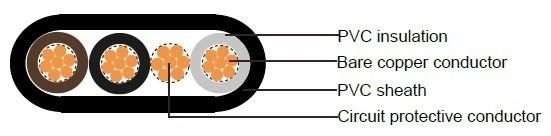

6243Y
17
3 × 1.0
0.6
0.9
4x9.6
4.7x11.0
17
91
16
3 × 1.5
0.7
0.9
4.4x10.5
5.4x12.5
17
115
14
3 × 2.5
0.8
1
5.2x12.5
6.2x14.5
17
170
12(7/20)
3 × 4
0.8
1.1
5.8x14.5
7.4x18.0
16
250
10(7/18)
3 × 6
0.8
1.1
6.4x16.5
8.0x20.0
14
340
8(7/16)
3 × 10
1
1.2
7.8x21.0
9.6x25.5
12(7/20)
540
6(7/14)
3 × 16
1
1.3
9.0x24.5
11.0x29.5
10(7/18)
790
