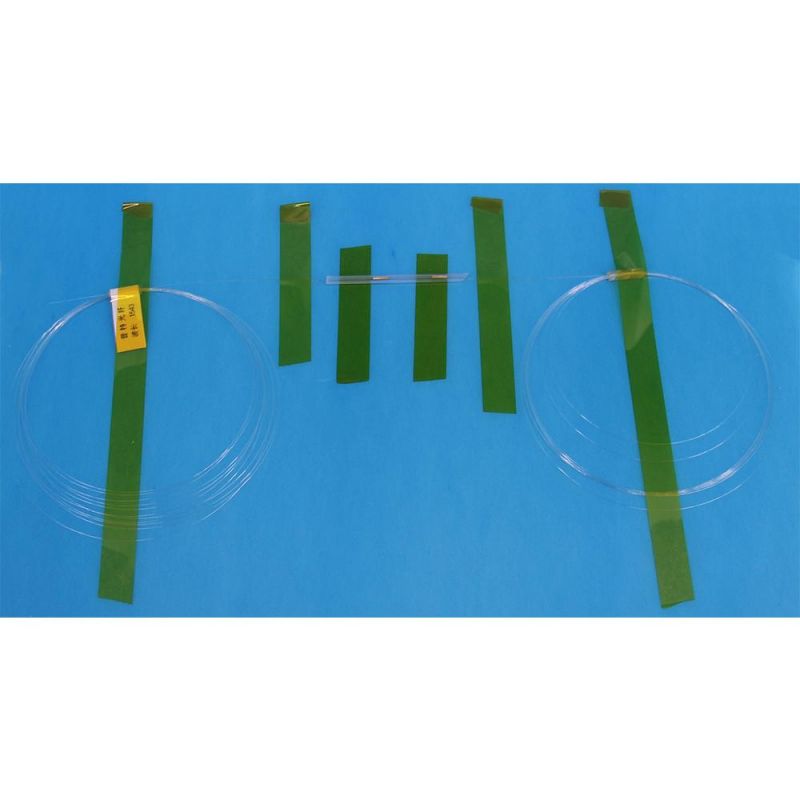

Communication Fiber Bragg Grating Chirped Fbg

Beijing Samyon Instruments Co., Ltd.
  • Type：Single-mode Fiber
  • Connection Structure：LC

Base Info

  • Model NO.：chirped fbg
  • Core：Single Core
  • Certification：ISO9001
  • Brand：OEM
  • Wavelength：1526.5~1568nm
  • Wavelength Tolerance：≤ ±0.2nm
  • Reflectivity：≥85%
  • Fbg Length：10mm
  • Tube Length：5mm
  • Total Length：28mm, 24mm
  • Wavelength Change Value：≥5nm

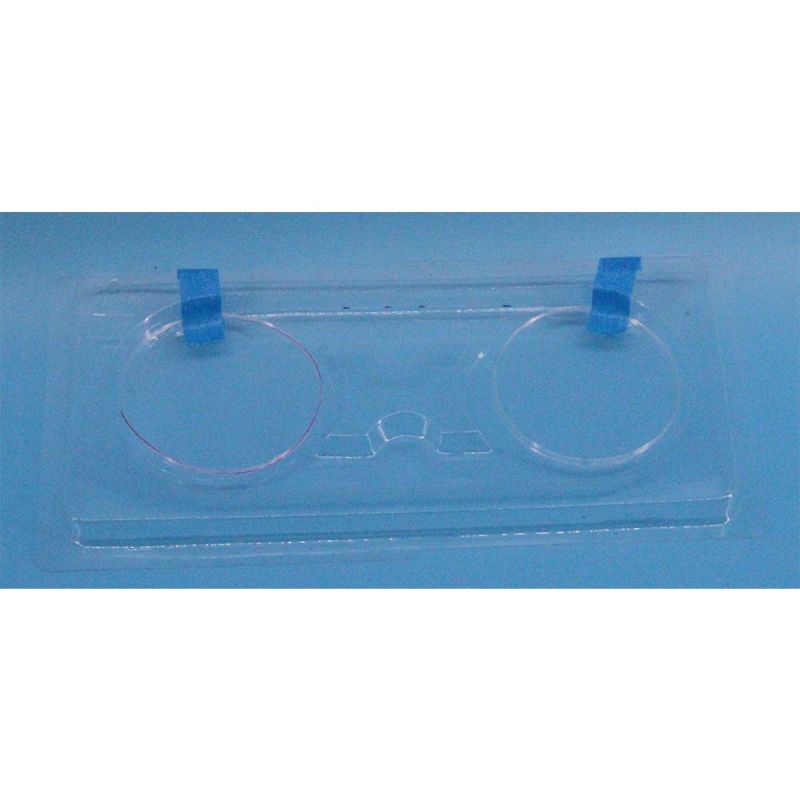

  • Transport Package：Plastic Bag and Carton
  • Trademark：SAMYON
  • Origin：Cn
  • HS Code：9031809090
  • Production Capacity：16000 Piece Per Month
  • Package size per unit product：21.00cm * 12.00cm * 3.00cm
  • Gross weight per unit product：0.100kg

Description

Communication Fiber Bragg Grating Chirped FbgCommunication Fiber Bragg Grating Chirped Fbg



Applications:
Gain Flattening Filter
Dispersion compensation
FTTH
CWDM system

Features:
Wide Bandwidth
Low Insertion Loss
High Reflectivity

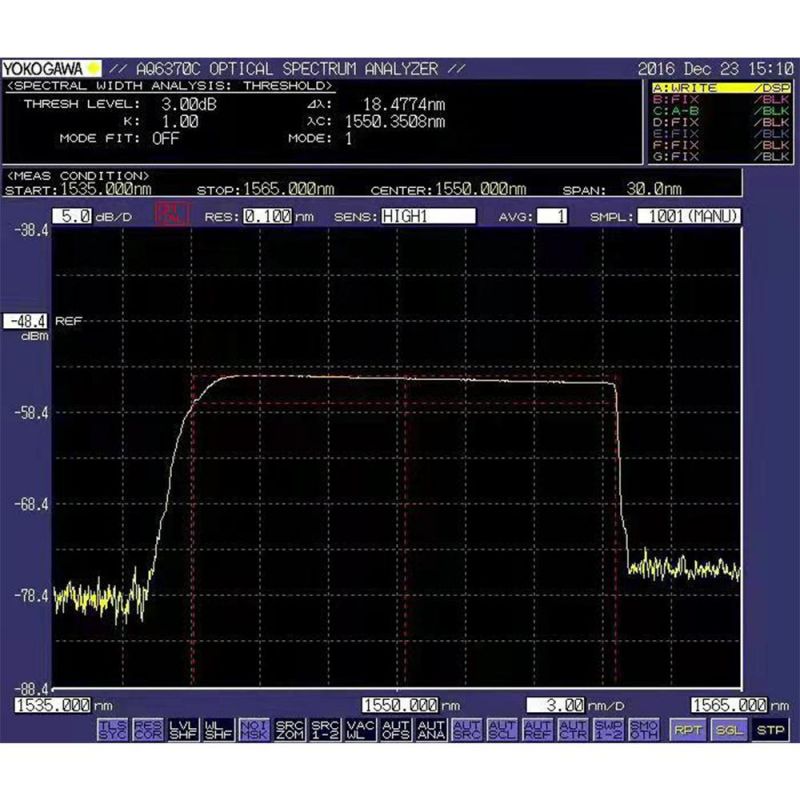

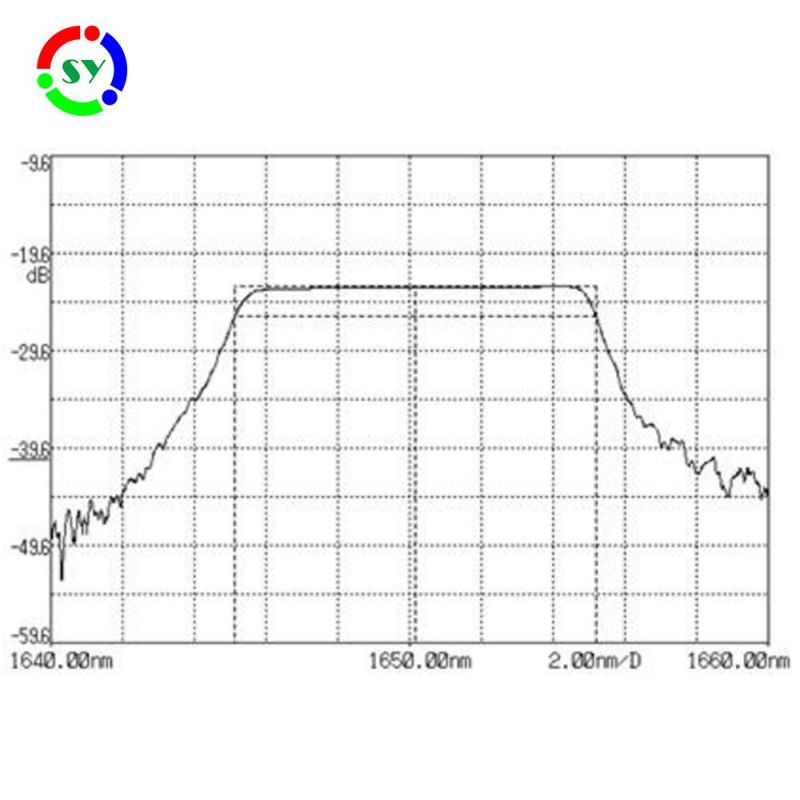

 SpecificationCommunication Fiber Bragg Grating Chirped FbgCommunication Fiber Bragg Grating Chirped Fbg
Chirped FBG Chirped gratings are structures where the optical period of the index modulation varies along the grating length. AtGrating manufactures the chirped grating by using chirped phase mask. By modifying the intensity of grating depth for reaching any predefined gain compensation profile that creates the gain flat filter. With ultra wide bandwidth that also create wide band filter as well as serving the distributed sensing.

Applications:
Gain Flattening Filter
Dispersion compensation
FTTH
CWDM system

Features:
Wide Bandwidth
Low Insertion Loss
High Reflectivity
