24 AWG Cat5e 4 Pair Screened FTP Data Cable
Hangzhou Risun Cable Co., Ltd.- Application:Local Communication Cable, LAN Cable, Data Cable
- Conductor Material:BC,CCS,CCA,TC,CU,CCAG
- Cover Material:PVC,PE,LSZH
- Type:Cat 5
- Material Shape:Round Wire
- Conductor Type:Solid
Base Info
- Model NO.:Network Cable
- Wire Core Material:Bare Copper Wire
- Certification:CE, ISO, RoHS, CCC, ETL,CPR
- Model:FTP Cat5e Network Cable
- Brand:Risun or OEM
- Insulation:HDPE
- UV:Available
- Frame Returdant:Available
- Transport Package:305m,Pull Box, 2box,Carton
- Origin:Hangzhou, Zhejiang, China
- HS Code:8544491100
- Production Capacity:20000 Boxes , Month
Description
Basic Info.
Model NO. Network Cable Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, CCC, ETL,CPR Model FTP Cat5e Network Cable Brand Risun or OEM Insulation HDPE UV Available Frame Returdant Available Transport Package 305m/Pull Box, 2box/Carton Origin Hangzhou, Zhejiang, China HS Code 8544491100 Production Capacity 20000 Boxes / MonthProduct Description
24 AWG Cat5e 4 Pair Screened FTP Data Cableconstruction:
conductor | 24awg (solid or strand) cu/cca/ccs |
insulation | HDPE 0.95±0.02mm |
Drain Wire | 26 Awg TC |
Shield | Polyester Tape/Al Foil |
sheath | 6.2±0.1mm pvc (fr,rohs,uv)/ lsoh / pe |
cores/pairs | 8/4 |
mechanical properties:
elongation | min. 300% |
temperature range | -20 up to +75° c |
tensile strength | min 1.68kg/mm² |
electrical properties:
resistance | max. 9.38 ohm/100m |
resistance unbalance | max. 2% |
insulation resistance | 150 ohm/km |
mutual capacitance | max. 5600pf/100m |
capacitance unbalance | max. 330pf/100m |
impedance | 100+/-15 ohm |
spark test | 2000v |
velocity of propagation | 67% |

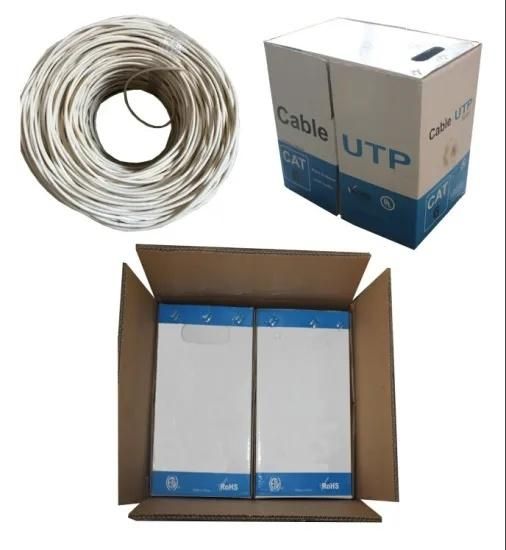

packing
1) packing lengths: 305m/roll, or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.
5) any question, please contact us without hesitation. we'll reply as soon as we can.
Company Profile
risun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and telephone cable in china.95% of our goods for the export market. 13 years of experience in this field makes us very familiar with export handling.we have customer in more than 40 countries all over the world.In the past 13 years, we have already get ETL,CE,ROHS, ISO9001,CPR certification.
workshop:
Welcome to RISUN,we will be happy to serve you!
