• Model NO.：Telephone cable
• Wire Core Material：Cu,CCA,CCS
• Certification：CE, ISO, RoHS, CCC, ETL,CPR
• Model：Telephone Cable
• Brand：Risun or OEM
• Insulation：HDPE
• Conductor：24AWG
• Pair：3
• Transport Package：305m,Pull Box, 2box,Carton
• Origin：Hangzhou, Zhejiang, China
• HS Code：8544491100
• Production Capacity：20000 Boxes , Month

Basic Info.

Model NO. Telephone cable Wire Core Material Cu/CCA/CCS Certification CE, ISO, RoHS, CCC, ETL,CPR Model Telephone Cable Brand Risun or OEM Insulation HDPE Conductor 24AWG Pair 3 Transport Package 305m/Pull Box, 2box/Carton Origin Hangzhou, Zhejiang, China HS Code 8544491100 Production Capacity 20000 Boxes / Month

Product Description

 Cat 3 UTP 3 Pair Telephone Cable

100% Bare Copper Solid Conductors

This cables is manufactured using high quality pure bare copper to ensure maximum conductivity, optimal performance and longest lifetime.

Great for Telecommunication Networks

Our CAT3 bulk cable provides 16 MHz of bandwidth, which is perfect for any voice communications and telephone networks.

The Quality and Convenience You Need

This cable comes in a pull box for easy pulling, it features color striped pairs for easy identification, and a rip cord for easy stripping.

construction:

conductor	24awg (solid or strand) cu/cca/ccs
insulation	hdpe 0.90±0.02mm
sheath	4.6±0.1mm pvc (fr,rohs,uv)/ lsoh / pe
cores/pairs	6/3

Environmental Specifications:

Rated Temperature	+70 °C ( + 158º F)
Flammability Test	CM, CMR

Mechanical Characteristics:

Before Aging Tensile Strength(Mpa)	≥10.34
Elongation(%)	≥100
Aging Condition	(100.0±1.0)×168
Tensile Strength(Mpa)	≥70% of unaged
Elongation(%)	≥45% of unaged

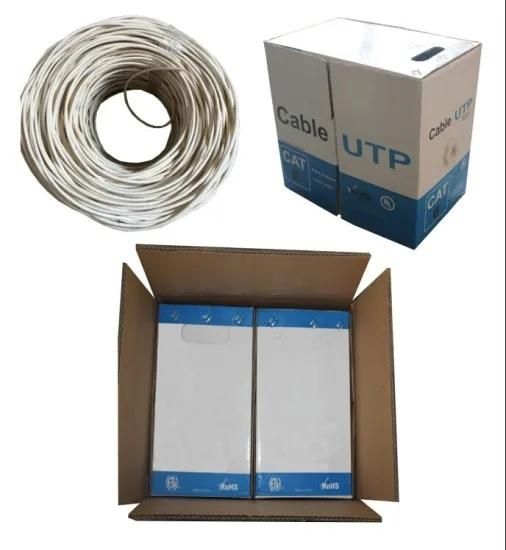

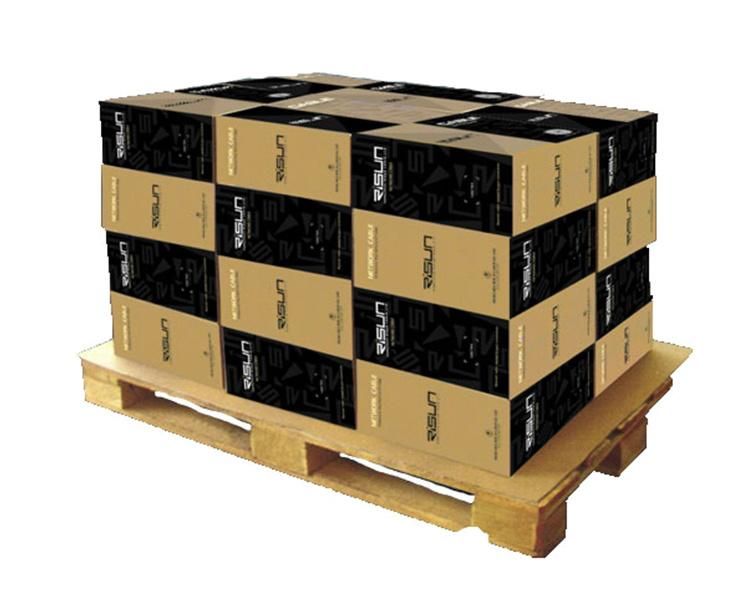

Packing

1) packing lengths: 305m/roll, or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.
5) any question, please contact us without hesitation. we'll reply as soon as we can.





company profile

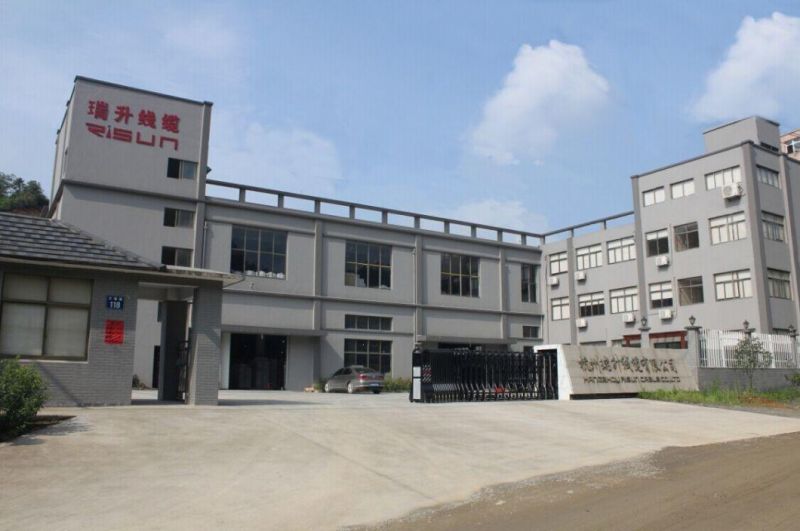

risun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and telephone cable in china. 95% of our goods for the export market. 13 years of experience in this field makes us very familiar with export handling.we have customer in more than 40 countries all over the world.In the past 13 years, we have already get ETL,CE,ROHS, ISO9001,CPR certification.

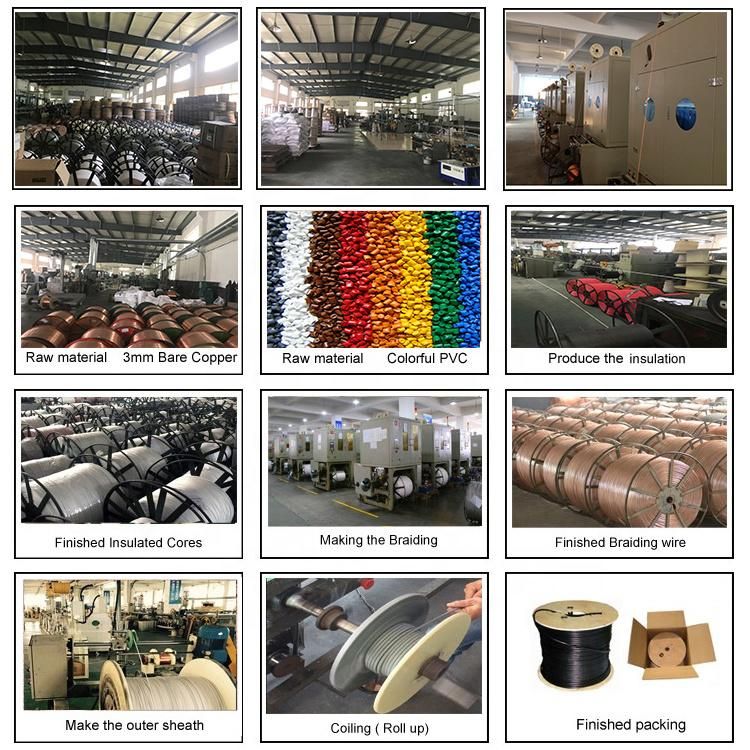

workshop:

Welcome to RISUN,we will be happy to serve you!
