Nyy 450/700V 0.6/1kv Fa-Dpycy Tpycy Marine Shipboard Cable Aluminium Control Electric Coaxial Cable Waterproof Rubber Cable
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Application：Construction, Overhead, Underground, Industrial, Power Station, Telecommunication, Computer, Car
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：Rubber
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：FA-DPYCY,TPYCY
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC, CE, RoHS, UL, VDE
- OEM&ODM：Yes
- Conductor Standard：IEC 60228
- Colors：Assorted Upon Request
- Coductor：Tinned Annealed Stranded Copper
- Model Number：1,2,3cores
- Armor：Galvanized Steel Wire Braid
- Cabling：Insulated Conductors Shall Be Cabled
- Transport Package：Wooden Box Packing or Pallet Shipping Containers
- Specification：Copper
- Trademark：Fengda
- Origin：China
- HS Code：8544492100
- Production Capacity：80000 Meter,Meters Per Month
Description

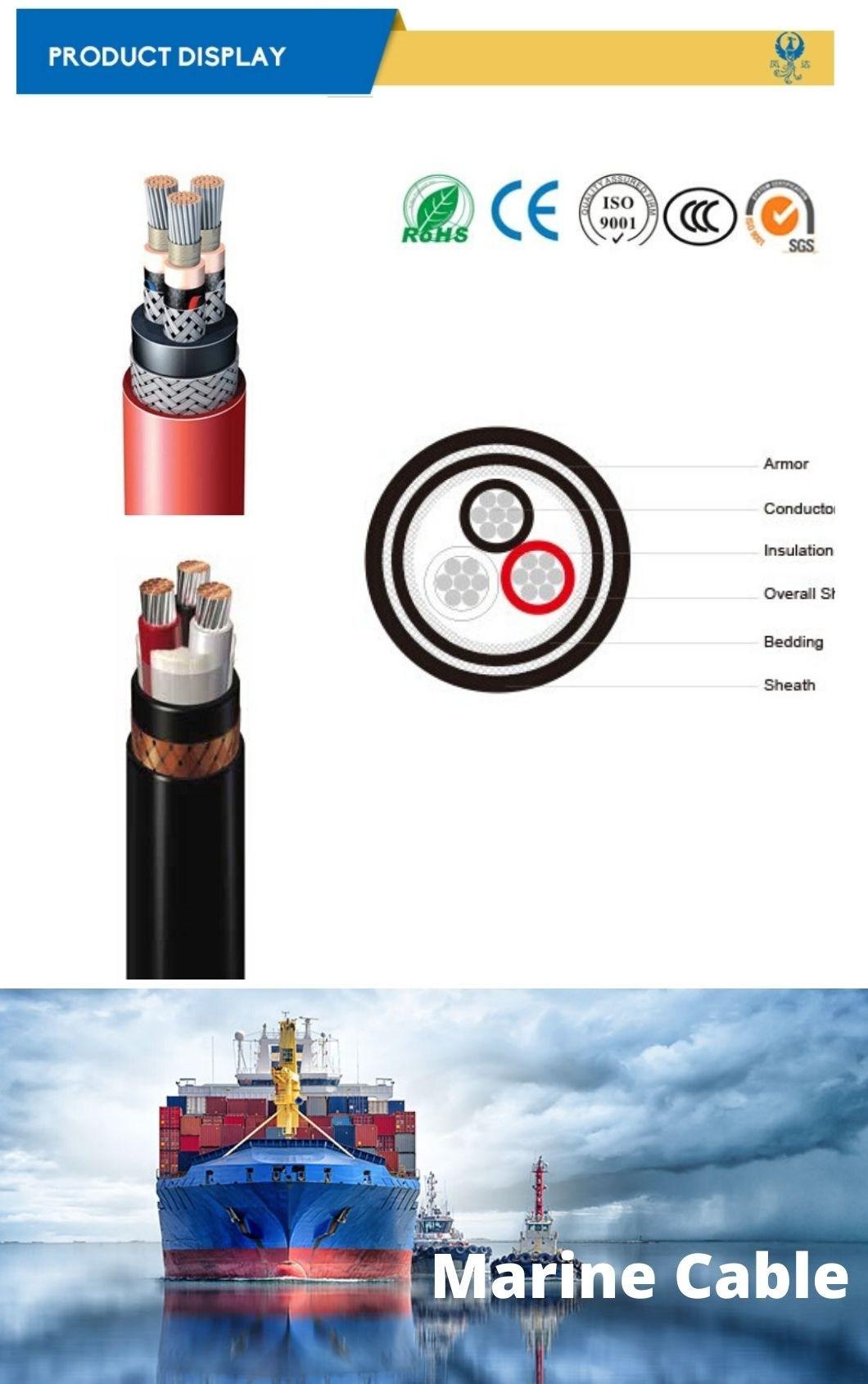

CABLE CONSTRUCTION
Conductor D(T,F,5,6,10) Tinned annealed stranded copper, class 2 according to IEC 60228
Insulation P 85°C EPR as per JIS C 3401
Cabling Insulated conductors shall be cabled. Flame retardant & non-hygroscopic fillers may be used
Bedding Y PVC as per JIS C 3401
Armor C Galvanized steel wire braid
Sheath Y PVC as per JIS C 3401
Core identification 2C Black, White - 3C / 2C+E Black, White, Red/ Black, White, G/Y 4C / 3C+E Black, White, Red, Green /Black, White, Red, G/Y 5C and over Black No. on white insulation /Black No. on white insulation, G/Y
Outer sheath color Black
