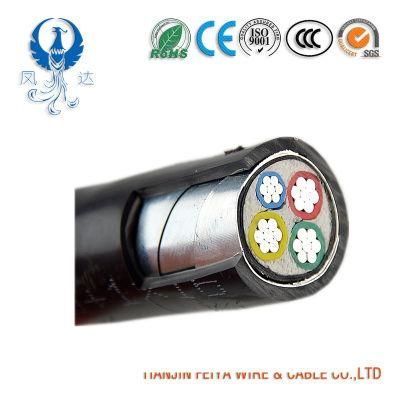

Pcv Insulated Heavy Current Cable with Concentric Conductor Electric Cable Al Cu Conductor PVC Epr Sheathed Multiple Cores Amoured Power Electric Wire

Tianjin Feiya Electric Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Overhead, Underground
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC

Base Info

  • Model NO.：NYCWY
  • Material Shape：Round Wire
  • Range of Application：Construction, Overhead, Underground, Industrial,
  • Certification：CE, CCC, RoHS, VDE
  • Brand：Fengda
  • Color：Black Red Yellow, According to Voltage Level
  • Whether It Is Environmentally Friendly：Yes
  • Whether Quality Inspection：Provide Inspection Certificate
  • Standard：Customized According to Specified National Standar
  • OEM/ODM：Accepted
  • Core：Single Core and Multicore
  • Transport Package：Standard Export Packaging
  • Specification：International General Specifications
  • Trademark：Fengda
  • Origin：Tianjin, China(Mainland)
  • HS Code：8544492100
  • Production Capacity：100000,Day

Description

AWGNO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM²STRANDED CONDUCTOR TYPENOMINAL OVERALL DIAMETER MMNOMINAL COPPER WEIGHT KG/KMNOMINAL CABLE WEIGHT KG/KM82 x 10.0re / 10.01931265062 x 16.0re / 16.021.548985042 x 25.0rm / 25.024.5763121083 x 10.0re / 10.019.540873063 x 16.0re / 16.022643100043 x 25.0rm / 16.026902155043 x 25.0rm / 25.0261003160023 x 35.0sm / 35.027.51402185023 x 35.0sm / 16.0271190175013 x 50.0sm / 50.029.52000245013 x 50.0sm / 25.029172322502/03 x 70.0sm / 70.034279633502/03 x 70.0sm / 35.033241029503/03 x 95.0sm / 95.038.5379145503/03 x 95.0sm / 50.038329641004/03 x 120.0sm / 70.041423650504/03 x 120.0sm / 120.04247865550300mcm3 x 150.0sm / 70.04551006000300mcm3 x 150.0sm / 150.04659706900350mcm3 x 185.0sm / 95.05063837550350mcm3 x 185.0sm / 185.05173638500500mcm3 x 240.0sm / 120.0578242995084 x 10.0re / 10.020.550489064 x 16.0re / 16.023.5796125044 x 25.0rm / 16.0281142180024 x 35.0sm / 16.0291526205014 x 50.0sm / 25.033220327002/04 x 70.0sm / 35.037308237503/04 x 95.0sm / 50.043.5420850004/04 x 120.0sm / 70.04753886350300mcm4 x 150.0sm / 70.05165407650350mcm4 x 185.0sm / 95.05681599350500mcm4 x 240.0sm / 120.062.51054611600

Technical data:

Nominal voltage Uo/U [V]600 / 1000 volt
Test voltage [V]AC4000
Temperature rangein motion -5°C till +70°C
 fixed -20°C till +70°C
Operating temperatureshort circuit°C160
Short circuit timemax.[sec]5
Bending radiusone time / fixedx diameter12
 in motionx diameter15
Flammabilitystandard EN 60332-1-2
