VHF Leaky Feeder Cable

ZHEJIANG LIBO INDUSTRIAL CO., LTD.
  • Application：Coaxial Cable, Long Distance Symmetric Cable, RF Cable
  • Conductor Material：Copper
  • Cover Material：PE
  • Type：75-10
  • Material Shape：Round Wire
  • Conductor Type：Stranded

Base Info

  • Model NO.：75-10
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS
  • Model：75-10
  • Brand：Libo or OEM
  • Msha Certificate：Yes
  • Jacket1：PE
  • Jacket2：Low Smoke Halogen PVC
  • Transport Package：350m,500m,1000m, According to Client′s Request
  • Specification：Coal mine leaky feeder cable
  • Trademark：LIBO or OEM
  • Origin：China
  • HS Code：854420000
  • Production Capacity：1000km Per Month

Description

VHF Leaky Feeder CableCoal Mine Leaky Feeder Cable , 75 Ohm SLYWV-75-10 Leaky Feeder Cable For Russia Mines Tunnels Ships

  • MSHA Certificate
  • Solid Oxygen Free Copper Inner Conductor
  • Bare Copper Wire Braiding
  • Low Smoke Halogen Free Jacket or Fire Retardant Jacket
  • VHF Leaky Feeder Cable
  • 75 Ohm Leaky Feeder Cable


Product description:

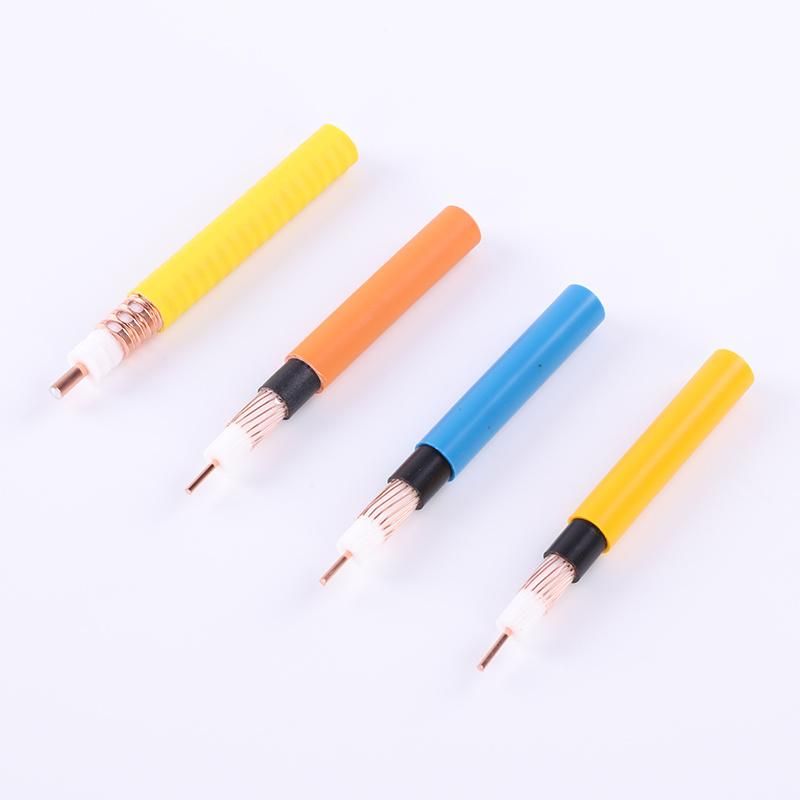

The leaky feeder cable has a radiation pattern of 360 degrees around the cable and can be strapped directly to a centenary cable, water or air pipe. The standard length is 350m or 500m with a yellow outer jacket.

As an option, the cable can be manufactured according to order with a blue color outer jacket and low smoke halogen free jacket is also available.



Applications:

  • Mines underground communication system
  • metro stations
  • tunnels
  • ships
  • In-building wireless systems.
  • perimeter detection

Specification:

Inner conductor

2.31mm bare copper

Dielectric

9.50mm

Outer conductor

16x0.6 bare copper wire

Outer jacket

15.0mm+/-0.2mm

Frequency

5 to 500MHZ

impedance

75 ohms

Attenuation @160 MHZ

4.2dB/100m

DC resistance inner conductor

<4.5 ohm/km

DC resistance outer conductor

<4.1 ohm/km

capacitance

54 pF/m

Insulation resistance

>10.4m ohm/km

MIN. bend radius

150mm

Operating temperature

-40 to +70 centigrade



Competitive Advantage:

  • Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
  • Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
  • Libo cable is equipped with a Provincial-level Research and Development Center; we offer OEM and ODM services.
  • Over 10 years of experience on leaky feeder cable, big market share in oversea leaky feeder cable industry.
