• Model NO.：JKLYJ
• Wire Core Material：Aluminum or Aluminum Alloy
• Certification：ISO, CCC, CE
• Model：Jklyj
• Brand：Yifang
• Product Name：Cable Twisted Overhead Fr-N1xd9-Ar NFC 33 209
• Transport Package：Drum, Reel or According to Your Request
• Specification：IEC, BS, DIN, ASTM, NFC, JIS etc
• Trademark：YIFANG
• Origin：Zhengzhou, Henan, China
• HS Code：8544492100
• Production Capacity：1000km Per Month

Basic Info.

Model NO. JKLYJ Wire Core Material Aluminum or Aluminum Alloy Certification ISO, CCC, CE Model Jklyj Brand Yifang Product Name Cable Twisted Overhead Fr-N1xd9-Ar NFC 33 209 Transport Package Drum, Reel or According to Your Request Specification IEC, BS, DIN, ASTM, NFC, JIS etc Trademark YIFANG Origin Zhengzhou, Henan, China HS Code 8544492100 Production Capacity 1000km Per Month

Product Description

Product Details

Cable Twisted Overhead FR-N1XD9-AR 3x70+54.6+2x16mm2 NFC 33 209

The insulated neutral carrier network twist NF C 33-209 is intended for rural and public low voltage supply.



It also has the following properties:

resistance to ultraviolet radiation;
ozone resistance;
high dielectric strength;
lightness and maneuverability.

POSE:

The requirements of standard NF C 11-201 determine the installation criteria for low-voltage overhead lines.
Their laying in the ground, even under conduit is PROHIBITED.

DESCRIPTION:

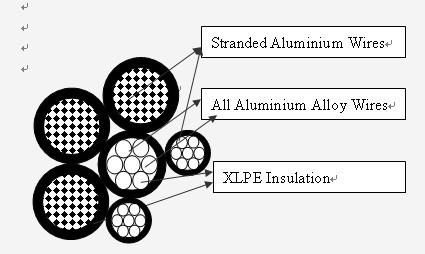

The torsade comprises an insulated aluminum core crosslinked polyethylene, it has a very good behavior over time and at high temperature.

Product Introduction




CARRIER CHARACTERISTICS:

Core: AGS Aluminum Alloy Wired Circular
insulation: black crosslinked polyethylene
nominal section: 54.6 mm²
diameter on the core: 9.2 to 9.6 mm
diameter on insulation: 12.3 mm min, 13.0 max
minimum breaking load: 1660 daN
modulus of elasticity: 62000 MPa
linear expansion coefficient: 23 * 10-6 ° C-1
MARKING:
Neutral:
Manufacturer Name Cable Size Voltage NF C 33-209, "metric marking" in ink, Year, etc..
Phase 1, 2, 3:
the number of the phase is printed and marked on the insulation

ELECTRICAL SPECIFICATIONS :
Test voltage: 4 kV AC,
Shock resistance: 1.2 / 50 μs of positive or negative polarity with a peak value of 20 kV.
Product Parameters

Size	Twist Dia.(mm)	Tension(daN)	Standard Length(m)
3x25+54.6	24.0	1660	1000
3x35+54.6+16	28.0	1660	1000
3x35+54.6+2x16	30.0	1660	1000
3x35+54.6	27.0	1660	1000
3x50+54.6	29.0	1660	500
3x50+54.6+16	30.0	1660	500
3x50+54.6+2x16	32.0	1660	500
3x70+54.6+16	33.0	1660	500
3x70+54.6+2x16	35.0	1660	500

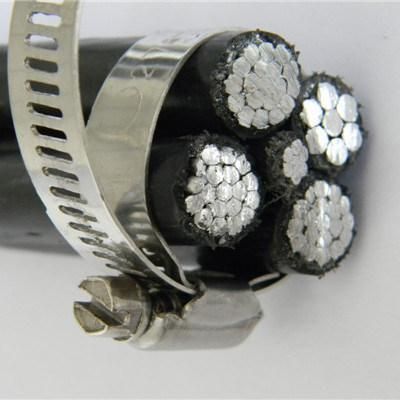

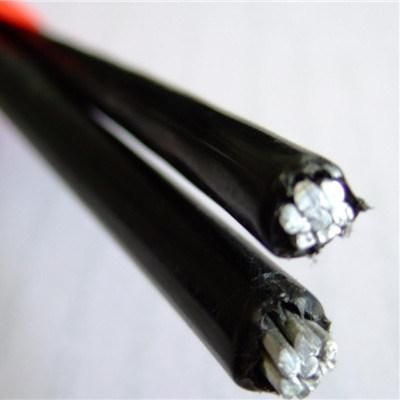

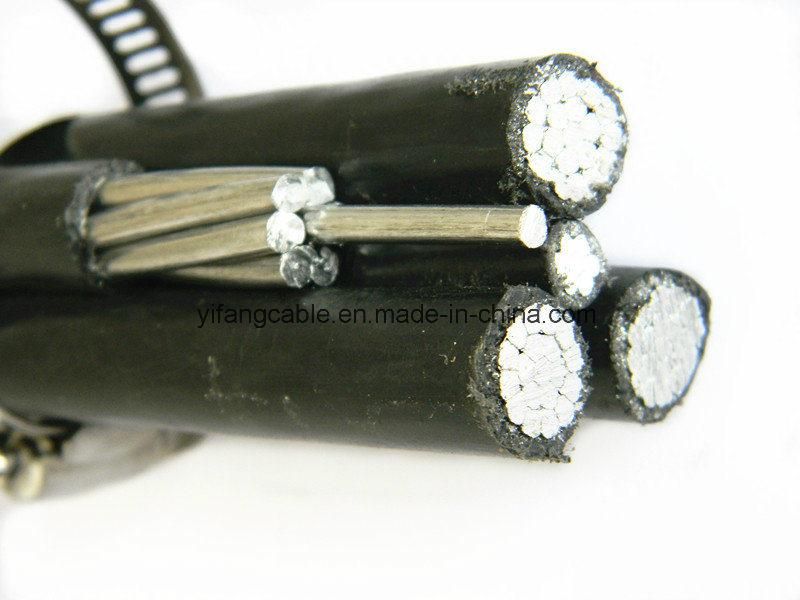

Product Details Show
