• Model NO.：GYFTY Optical Fiber Cable
• Core：2-288 Core
• Certification：RoHS, ISO9001, Reach, Tlc, etc
• Brand：Tw-Scie or OEM
• Sheath Material：MDPE , HDPE , LSZH PE
• Model No：GYFTY Optical Fiber Cable
• Fiber Count：2-288 Core
• Brand Name of Fiber：Corning, Yofc, Draka,...as Your Requirement
• Loose Tube Material：PBT
• Loose Tube Filling Material：Jerry
• Color of Loose Tube：Orange, Green, Brown, Red etc
• Central Strength Member：Non-Metallic
• Strength Material：Glass or Aramid Yarn
• Core Moisture Protection Methodology：Water Blocking Tape or Filling Compound
• Installation Style：Aerial
• Transport Package：Wooden Drum
• Specification：SGS ROHS REACH ISO
• Trademark：TW-SCIE or OEM
• Origin：Dongguan, Guangdong, China (Mainland)
• HS Code：854470000
• Production Capacity：200km,Day

Technical data:Fiber Num.Outer diameter (mm)Weight (kg/km)Min.Bending radius(mm)Tension (N)Crash loading (N/100mm)StaticDynamicShort termLong termShort termLong term2-3610.49010 times O.D.20 times O.D.1500600100030038-6010.211062-7211.711574-9613.415098-12015.0190122-14416.6230146-21616.9240218-24019.3305242-28821.5375
Structure characters:
Non-metallic strengthen member
Reinforced with glass or aramid yarn
PE outer sheath
We  can design any kind of structures according to enviromental condition and transmission capacity, such as GYFTA, GYFXTY, GYFDTZA etc.

Properties:
Non-metallic structure providing excellent anti-electromagnetism
Anti-thunder and anti-static performances.


Applicable Fields:
1.Long distance telecom, LAN in high voltage area or access to telecom network;
2.For power transmission system, much thunder areas and high electro-magnetic inerference.





Our Quality & Service:
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1.Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.

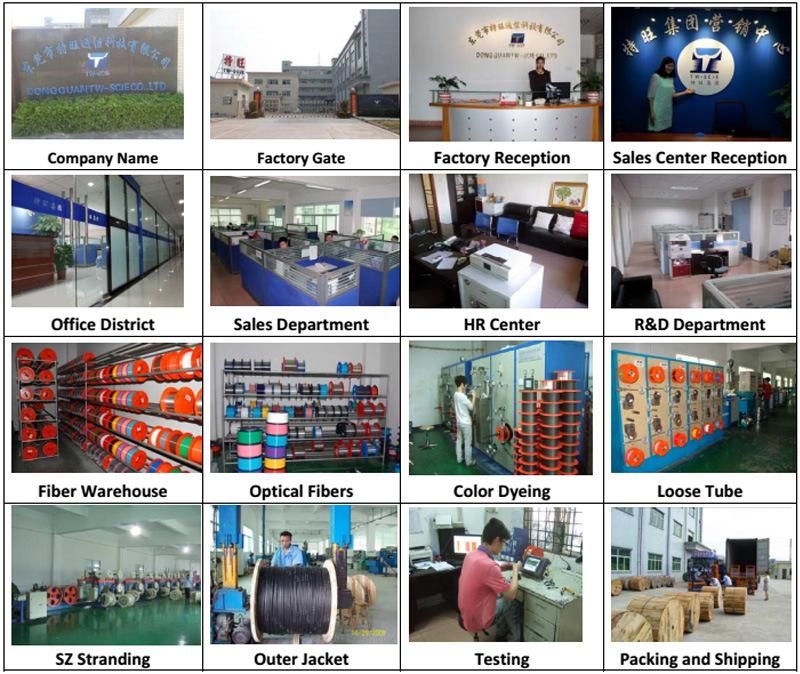

Company overview:

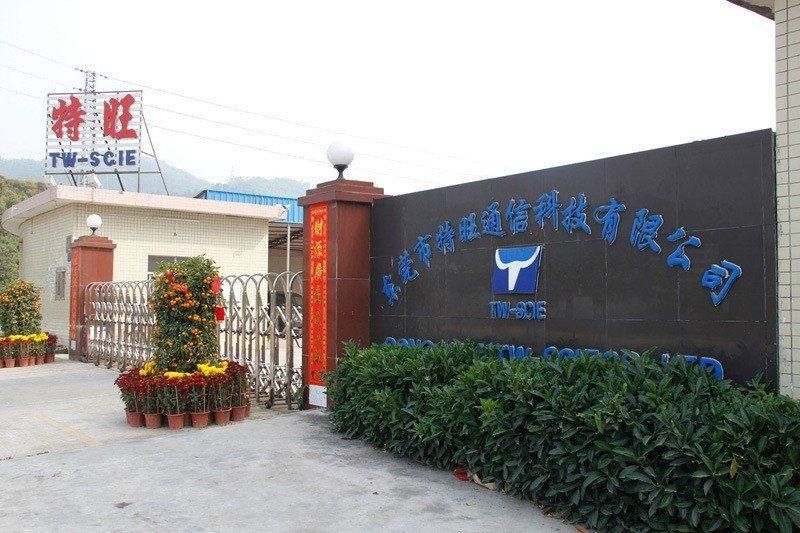

Established in 2002, Dongguan TW-SCIE Co., Ltd. is a comprehensive high-tech enterprise that integrates R&D, manufacture, sale of fiber optic communication products and network engineering. We have two manufacturing bases, one is in Donguan, Guangdong which occupies about 30000m² with 20000m² production factory, and the other is in Deyang, Sichuan which occupies 40000m² with 20000m² production factory. The annual production capacity of the two bases are 20 million core kilometers.

We are dedicated in R&D and application of fiber optic products and have obtained 5 invention patents and 58 utility model patents. The main products are indoor/outdoor fiber optic cable, ADSS, OPGW, FTTH drop cable, patch cord, pigtail and related accessories. The products conform to the China National Standard strictly and have obtained certificates of Anatel, CE, RoHs, Reach, ISO9001, ISO14004, OHSAS1801 and so on.

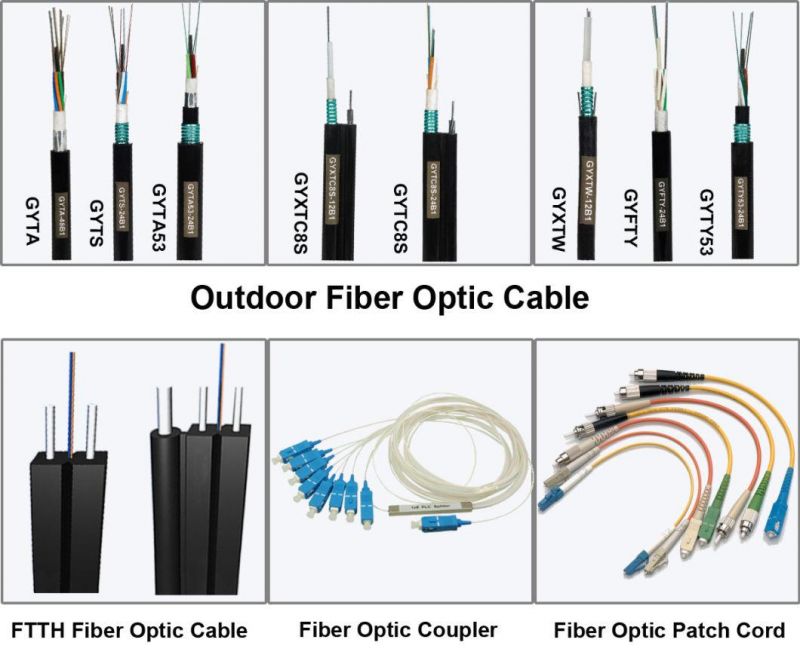

More Products:




Please feel free to contact with us for cooperation and excellent service.
