Optical Fiber Fushion Splicer
Model:YR6481 Mini Type Water-proof,Shock Resistance, Dust-proof





Description:

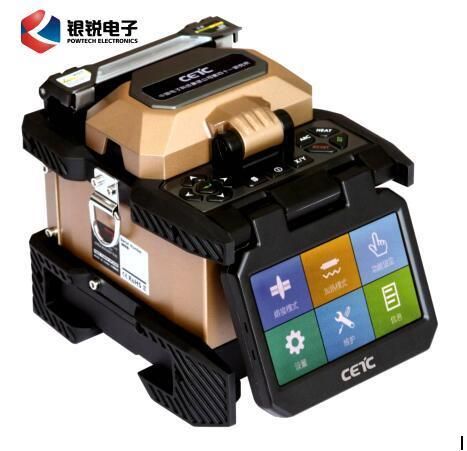

YR6481 Optical Fiber Fusion Splicer is small size optical fiber fusions splicer, mainly used for fusion and protection of common communications fibers. The rich functionality and ultra-low splice loss make the splicer adaptive to fiber splicing in various environments. It is featured with small size, light weight, high reliability, greater environmental adaptability, dust-resistant, water-resistant and shock-resistant. Multiple fusion modes and heating modes are available to meet diversified customers' demands. Fiber loading becomes more convenient and accurate thanks to the ceramic V-groove of high precision, which is easy for clean and maintenance. The splicer is capable of dual-directional fusion. The monitor is a touch screen delivers fresh designed graphical interfaces, which are simple for operation. The modular plug gable lithium-ion battery of large-capacity ensures long-time field operations. The auto environment compensation system greatly improves adaptability of the splicer to hostile environments, so that low-loss splice can be remained consistent in various environments.


Features:

1. Small size, light weight
2. 7s fast splicing, 18s highly efficient heating
3. 320 times image magnification, 5mm fusing for ultra-short cleave length
4. 300 groups of splice modes, 100 groups of heating modes, 10000 groups of fusion records /64 images storage
5. Ceramic presser foot, ceramic V-groove, all-in-one fixture
6. Dual-directional fusing, auto fusing, intelligent heat shrink
7. USB and SD card interface, auto update of U disk
8. Built-in modular lithium-ion battery, at least 220 counts of splicing and heating cycles
9. GUI (graphical user interface) and touch screen, convenient for operation
10. Dust-resistant, water-resistant, shock-resistant, greater environment adaptability

All-in-one fixer
The all-in-one fixture meet fusion demands of multiple optical fibers, jumpers and rubber-insulted wires with a cladding diameter of 80~150μm.

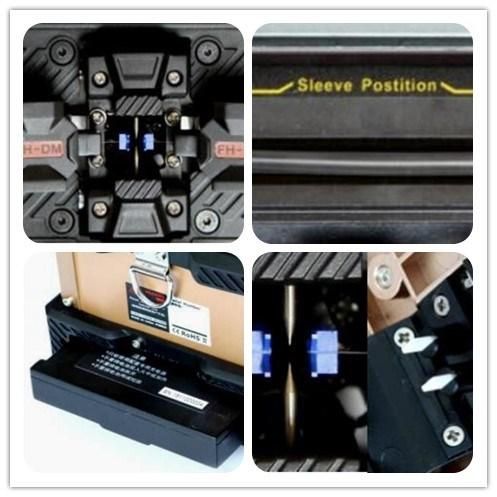

Inner structure:

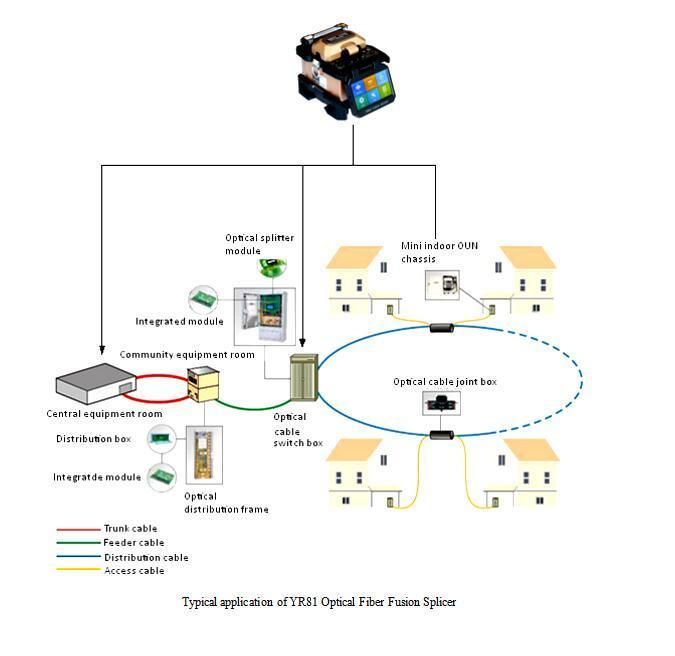

Working principle:


Technical data sheet:

Model	YR6481 Optical Fiber Fusion Splicer
Motor qty	4
Alignment method	Cladding alignment, manual alignment
Applicable fibers	Any common optical fibers, rubber-insulated fibers and jumpers that meet    requirements of ITU-TG.651~653, ITU-TG.655 and ITU-TG.657.
Optical fiber diameter	Cladding: 80~150μm, coating layer: 0.1~3mm
Cleave length	5~16mm(coated optical fiber diameter≤250μm);10mm(coated optical    fiber diameter:0.25~3mm)
Splice loss(typical)	0.02dB(SMF); 0.01dB(MMF); 0.04dB(DSF); 0.04dB(NZDSF)
Return loss	Better than 60dB
Splicing time (typical)	7s (Fast mode)
Heating time (typical)	28s(60mm protection sleeve)
Tension	1.96~2.25N
Protection sleeve	60mm, 40mm and a series of protection sleeves
Graphical display	High-performance 4.3 inch LCD
Magnification time	320 times/88 times
Fusion records	10000 groups
Remote maintenance	N/A
Battery capacity	11.1V, 6800mAh
Battery service life	Cycle charging: 300~500 counts, can be replaced by customers
Electrode service life	Typical: 4000 counts, can be replaced by customers
Construction lighting	Built-in lights with high-brightness and wide lighting area
Working environment	Temp:-10~50ºC;Hum: 0~95%RH,height above sea level: 0~6000m
Operation interfaces	GUI (graphical user interfaces)
External power	AC: 100~240V, 60Hz, 0~1.5A; DC: 10~15V
Port	USB / SD
Dimensions	120mm(W)×130mm(H)×154mm(D)(without rubber anti-vibration pad)
Weight	1.7kg (the battery not included), 2.0kg(included the battery)

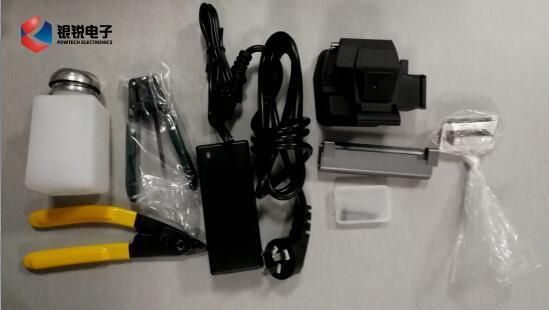

Standard configration of accessories:



Ordering information
Main Unit: YR81 Optical Fiber Fusion Splicer
Options:

No.	Description	Functionality
YR81-001	U Disk	For program update and splice data output
YR81-002	Lithium-ion battery	Power supply of the main unit
YR81-003	Power cord of cigarette lighter	Connect to on-board battery, for power supply of the main unit
YR81-004	Fiber cleaver	To cleave fibers

Japan Product Substitutable:
Brand: Sumitomo
Model: TYPE-81C
