4pr UTP Cat5e LAN Cable with Best Price 1000 FT Pull Box

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PE
  • Type：Cat5e
  • Material Shape：Round Wire
  • Conductor Type：Stranded

Base Info

  • Model NO.：UTP Cat5e Cable
  • Wire Core Material：Tinned Wire
  • Certification：CE, ISO, RoHS, UL, ETL SGS CPR
  • Model：UTP Cat5e
  • Brand：Risun or OEM
  • Transport Package：305m,Pull Box, 2 Pull Box,CTN.
  • Trademark：RISUN or OEM
  • Origin：Hangzhou, China(Mainland)
  • HS Code：8544491100
  • Production Capacity：20000box,Month

Description

Conductor:7/0.20±0.01mm(24AWG) BC/CCAInsulation:0.96±0.02mm HDPECores/Pairs:8/4Sheath:5.6±0.2mm PVC (PE, LSZH)Options: Jelly CompoundJacket: UV, FR, RoHS,Reach complied

Mechanical Properties:

Elongation≥125 %Temperature Range-30 up to +50 °CTensile Strength≥10MPa

Electrical Properties:

Conductor Resistance≤9.5 Ω/100mResistance Unbalance≤2%Insulation Resistance≥5000 MΩ·KMCapacitance≤5.6 nF/100mImpedance100 ± 15 ohmSpark Test2000VVelocity of Propagation69%

Technical Performance:

FrequencyAttRLNEXTDELAYPS NEXTEL FEXTPS EL FEXT
(MHz)(≤dB/100M)(≥dB)(≥dB)(≤ns/100M)(≥dB)(≤dB/100M)(≤dB/100M)
44.523.056.3552.053.352.049.0
86.424.551.8547.048.845.942.9
107.125.050.3545.047.344.041.0
169.125.047.2543.044.239.936.9
2010.225.045.8542.042.838.035.0
2511.424.344.3541.041.336.033.0
31.2512.823.642.9540.039.934.131.1
62.518.521.538.4539.035.428.125.1
10023.820.135.3538.032.324.021.0


The Cat5e Cable:
ItemConductorInsulation
(UV,FR,RoHS)		Cores
/
Pairs		ShieldDrain WireSheath
(UV,FR,RoHS,
Reach)		Messenger
U/UTP Cat5e solid 0.50±0.01mm
(24AWG)BC/CCA		0.90±0.02mm
HDPE/PVC		8/4NonNon5.1±0.2mm
PVC(PE,LSZH)		Non
U/UTP Cat5e strand 7/0.20±0.01mm
(24AWG)BC/CCA		0.96±0.02mm
HDPE/PVC		8/4NonNon5.6±0.2mm
PVC(PE,LSZH)		Non
U/UTP Cat5e double jacket 0.50±0.01mm
(24AWG)BC/CCA		0.90±0.02mm
HDPE/PVC		8/4NonNon6.2±0.2mm
PVC+PE/PVC
+PVC/PE+PE		Non
U/UTP Cat5e dual/messenger0.50±0.01mm
(24AWG)BC/CCA		0.90±0.02mm
HDPE/PVC		8/4NonNon5.1±0.2mm
PVC(PE)		1.16±0.1mm
Steel
F/UTP Cat5e solid 0.51±0.02mm
(24AWG)BC/CCA		1.00±0.02mm
HDPE/PVC		8/4Polyester Tape
+Al Foil		0.40±0.01mm
(26AWG)TC		6.2±0.2mm
PVC(PE,LSZH)		Non
F/UTP Cat5e
messenger 		0.51±0.02mm
(24AWG)BC/CCA		1.00±0.02mm
HDPE/PVC		8/4Polyester Tape
+Al Foil		0.40±0.01mm
(26AWG)TC		6.2±0.2mm
PVC(PE)		1.16±0.1mm
Steel
SF/UTP Cat5e solid 0.51±0.02mm
(24AWG)BC/CCA		1.00±0.02mm
HDPE/PVC		8/4Polyester Tape+
Al Foil+≥40%TC		0.40±0.01mm
(26AWG)TC		6.8±0.2mm
PVC(PE,LSZH)		Non



Packing:
50m/roll, 100m/roll, 200m/roll, 305m/roll, 500m/roll, 1000m/roll
Other lengths available according to customer's request.

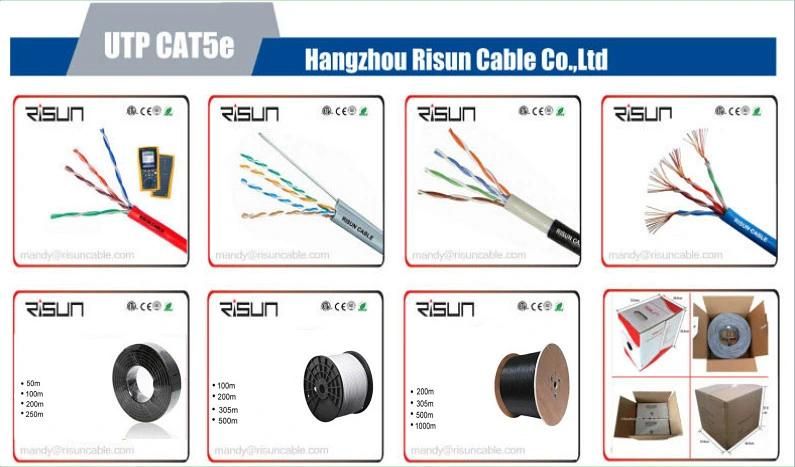

4pr UTP Cat5e LAN Cable with Best Price 1000 FT Pull Box

4pr UTP Cat5e LAN Cable with Best Price 1000 FT Pull Box


4pr UTP Cat5e LAN Cable with Best Price 1000 FT Pull Box



Exhibtion Show


4pr UTP Cat5e LAN Cable with Best Price 1000 FT Pull Box

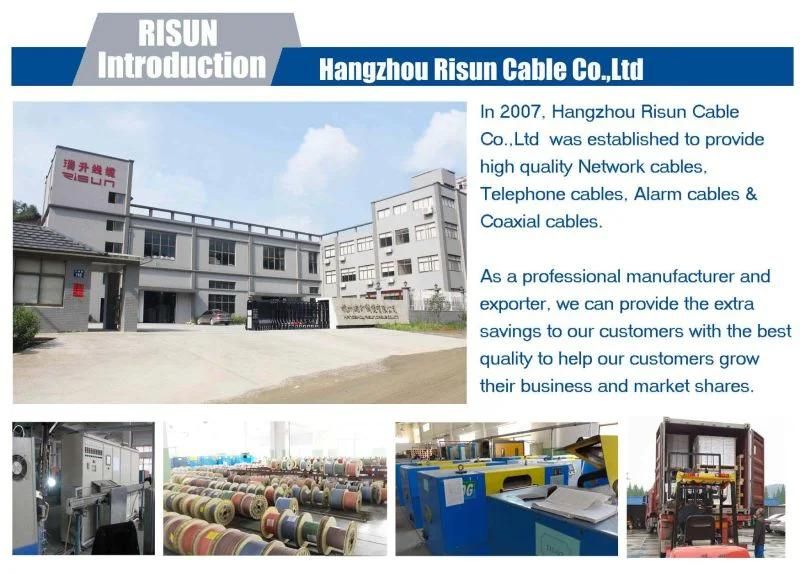

WELCOME TO RISUN
