Almenec Cable 75, 5mm2 NF C 34-125
YIFANG ELECTRIC GROUP INC.- Application：Construction, Overhead, Industrial, Power Station
- Voltage：High Voltage Cable
- Current：DC & AC
- Insulation Material：Bare
- Sheath Material：Bare
- Material Shape：Round Wire
Base Info
- Model NO.：AAAC
- Wire Core Material：Aluminum Alloy
- Certification：ISO, CCC, CE, RoHS
- Model：AAAC
- Brand：Yifang

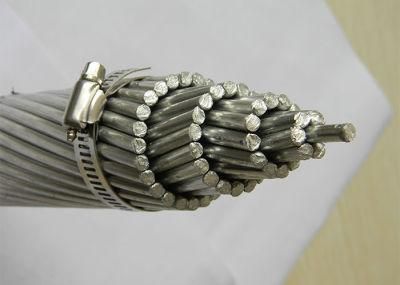

- Product Name：All Aluminum Alloy Conductor AAAC ASTM BS IEC DIN
- Transport Package：Wooden Drum, Steel Drum, Wooden&Steel Drum
- Specification：6 AWG
- Trademark：YIFANG
- Origin：Zhengzhou
- HS Code：7614900000
- Production Capacity：1000 Ton,Month
Description
Yifang Electric Group Inc.Code name - 75.5 75.5 Type aluminum alloy conductor Almelec Almelec Reference Standard NF C 34-125
NF EN 50 182 NF C 34-125
NF EN 50 182 Maximum allowable continuous current AT 240 240 Cross section mm² 75.54 75.54 Outside diameter mm 11.25 11.25 Number of Single wire No.s 19 19 Diameter of Single wire mm 2.25 2.25 Net weight, ungreased kg/m 0.208 0.208 Elasticity module daN/mm² 6000 6000 Coefficient of expansion /°C 10x 23-6 10x 23-6 Calculated breaking load daN 2430 2430 Ohmic resistance in cc at 20°C Ohm/km 0.438 0.438 Length on Reel m 4000
