• Model NO.：Cat5
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, UL
• Model：MHYV-xx
• Brand：Hongfeng
• HS Code：8544491100
• Production Capacity：30, 000piece,Year

Basic Info.

Model NO. Cat5 Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, UL Model MHYV-xx Brand Hongfeng HS Code 8544491100 Production Capacity 30, 000piece/Year

Product Description

Basic Info.

Model NO.:Cat5e RJ45

Application:LAN Cable
Conductor Material:BC/CCS/CCA/TC/CU/CCAG

Cover Material:PVC/LSZH
Type:Cat 5

Material Shape:Round Wire
Conductor Type:Solid

Wire Core Material:Bare Copper Wire
Certification:CE, ISO, RoHS

Brand:Surelink
Rated Voltage:35V

Conductor:Pure Bc
Standard:IEC11801 and Tia/Eia 568b

Operating Temperature:-50 to+70 Degree
Trademark:SURELINK

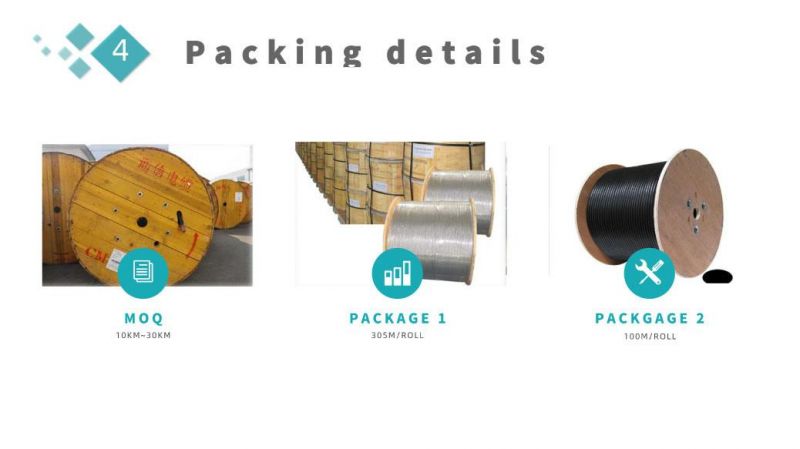

Transport Package:Carton
Origin:China, HangZhou


Material Instruction
1.CCA or 24AWG Soft Plain Copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE;
4.Eco-friendly PVC/LSZH Jacket , high-temperature resistance,long working life.

Appliacation
1. Exceeds ANSI/TIA-568B. 2 and ISO 11801 2nd Edition Class E Category 5e channel standards.
2. Exceed requirements of ANSI/TIA-568B. 2 and IEC 61156-5 Category 5e Component standards;
3. Meets requirements of IEEE 802.3af ad IEEE 802.3at for PoE applications.
4. Foil shield reduces ingress of EMI interference to ensure cable performance at high frequency levels.
5. Length cable marking enable easy identification of remaining cable which reduces installation time and
cable scrap.
6. Color Availability: Additional cable colors available.

Electronic Characteristics
Impedance: 100± 15(ohms).
Rated Temperture: 75º C
DC Resistance unbalance(%): Max2.5
DC Resistance 20º C: 8.4(Ohms/100m)
Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)
Transfer Impendance: Max 10 mohms/m@100MHz.
Installation Resistance: >5000MΩ *KM
Dielectric strength: DC 2500V 2S

Standard / Certificate
Reference Standard:YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA - 568B,UL444
Certificates ISO9001,14000, UL, ROHS.

Cable Specification



Item Name	UTP CAT5 Lan Cable
TYPE	Cat5
Conductor	CCA or 24AWG Solid Copper
Number of Conductors	8
Insulation Material	HDPE
Shielding	PET/ Aluminum Foil and Tinned copper braiding
Application	Lan cable
Jacket	PVC/LSZH
Operating temperature	-50 ° C - +70 ° C
Standard	EIA/TIA 568B.2 & ISO/IEC 11801/ ASTM / BS
Certificate	CE/ISO/RoHS Approved
