VDE Cord H05rr-F 3X0.75/1.0/1.5/2.5mm2 Epr Rubber Insulated Power and Control Flexible Rubber Cable

Tianjin Feiya Electric Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Overhead, Heating, Underground
  • Conductor Material：Copper
  • Sheath Material：Em3
  • Insulation Material：Ei 4

Base Info

  • Model NO.：H05rr-F YZ
  • Material Shape：Round Wire
  • Range of Application：Flame Retardant
  • Certification：ISO9001, CE, UL, CCC, RoHS, VDE
  • Brand：Feiya
  • Color：Black Red Yellow, According to Voltage Level
  • Whether It Is Environmentally Friendly：Yes
  • Whether Quality Inspection：Provide Inspection Certificate
  • Standard：Customized According to Specified National Standar
  • OEM/ODM：Accepted
  • Core：Single Core and Multicore
  • Transport Package：Standard Export Packaging
  • Specification：International General Specifications
  • Trademark：Fengda
  • Origin：Tianjin, China(Mainland)
  • HS Code：8544492100
  • Production Capacity：5000000km,Year

Description

Introduction1Can be customized according to requirements.2Independent brand recruitment agency.3High quality, ISO 9001, CCC, CE, RoHS certified.4ODM&OEM is available.
Application

The 318-TRS tough rubber sheathed flexible cable (harmonised code H05RR-F) is designed for use in fixed installations in domestic premises as well as kitchens and office environments. This robust cable is ideally suited for use as 13 Amp mains extension leads to provide power to portable appliances. With its durable rubber compound insulation and sheath, it can be repeatedly coiled and uncoiled without undue wear, and offers resistance to water and oils.

These 318-TRS cables are available with 2-core, 3-core, 4-core and 5-core variations and in cross sectional conductor sizes starting from 0.75mm2 and upwards.

Product Make-up
Bare copper wire
insulation: rubber compound, type EI 4
Outer sheath: rubber compound, type EM3

Technical Data Classification
ETIM 5: ETIM 5.0 Class-ID: EC001578 ETIM 5.0 Class-Description: Flexible cable Classification
ETIM 6: ETIM 6.0 Class-ID: EC001578 ETIM 6.0 Class-Description: Flexible cable
Core identification code: Coloured according to HD 308 Conductor stranding: Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5
Minimum bending radius: 4 to 8 x outer diameter (EN 50565-1)
Nominal voltage: U0/U: 300/500 V
Test voltage: 2000 V Protective conductor: G = with GN-YE protective conductor X = without protective conductor
Current rating: According to IEC 60364-5-52/ VDE 0298-4 EN 50565-1/ VDE 0298-565-1
Temperature range: Fixed installation: -25°C up to +60°C Occasionally moved: -25°C bis +60°C

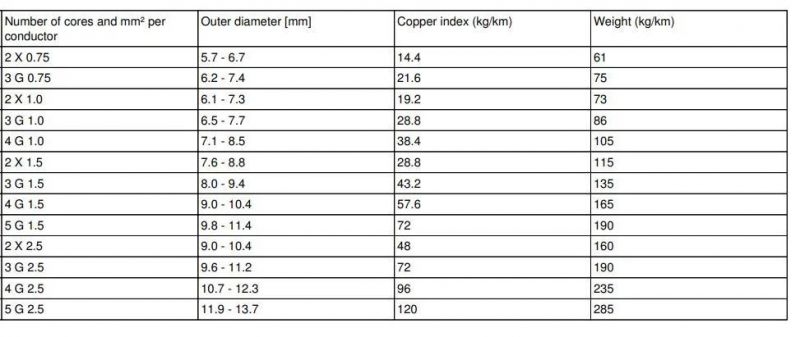

Construction Table
