• Model NO.：SHD-GC 3x4+2x8+1x8AWG
• Transport Package：Wooden Drum
• Specification：3*4+2*8+8AWG
• Trademark：yifang
• Origin：Henan
• Production Capacity：500, 000km,Month

Basic Info.

Model NO. SHD-GC 3x4+2x8+1x8AWG Transport Package Wooden Drum Specification 3*4+2*8+8AWG Trademark yifang Origin Henan Production Capacity 500, 000km/Month

Product Description

Epr Insulated Cable Trailing Cable

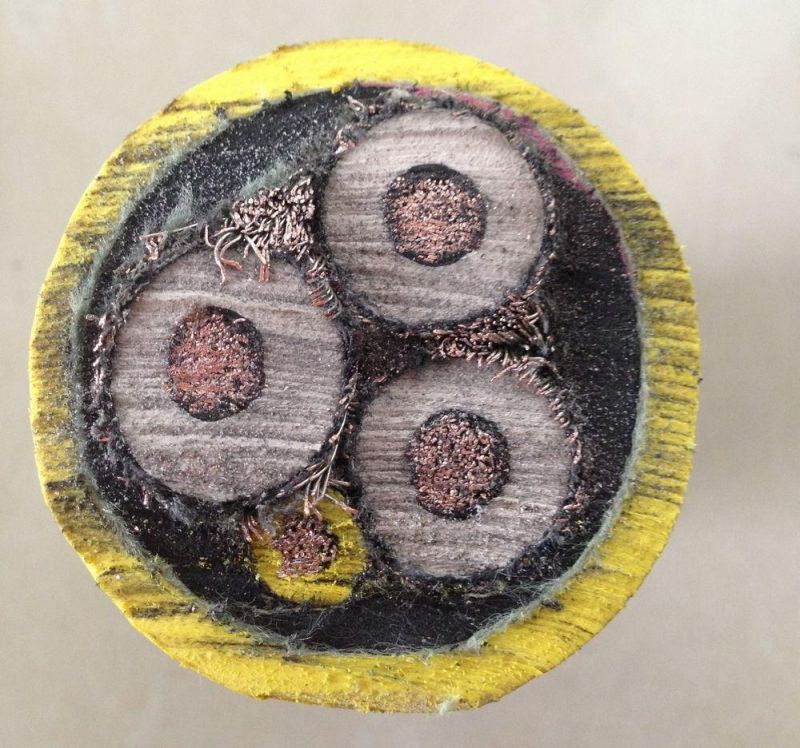

Cable Construction to top

Type SHD GC Power, Shielded Round Portable w/Ground Check, EPR/CPE, 25000 Volts, 90 C, Three Conductors Electrical Cable
Application
Trailing cable for AC mining equipment
Req'd Features
Flexible for ease handling
High dielectric strength
Electrical stability under stress
Low dielectric loss
Resist: Cutting, impact, abrasion, flame and sunlight
Excellent thermal stability and physical properties under a broad temperature range
Two layer jacket to provide maximum protection from mechanical damage
Conductor
4/0 AWG Coated annealed copper brunched wires, rope lay stranded per ASTM B172
Extruded Strand Shield (ESS)
Extruded thermosetting semi conducting stress control layer over conductor
Insulation
Ethylene Propylene Rubber (EPR) insulation
Insulation Shield
Extruded conducting layer covered by a conducting tape and a flexible coated copper textile braid shield overall
Ground Check Conductor
One annealed copper rope lay stranded per ASTM B172, insulated with high strength polypropylene.
Grounding Conductors
Two coated copper rope lay stranded per ASTM B172, in contact with the flexible copper braid shield
Jacket
Reinforced, two layers, extra heavy duty, lead cured Chlorinated Polyethylene (CPE)
Compliances
ICEA S75-381 Portable and Power Feeder Cables for use in mines
CAN/CSA C22.2 N 96 Portable Power cables
MSHA Flame test requirements.
