• Wire Core Material：Cu or Al
• Certification：ISO, CCC, CE
• Model：YJLV22
• Transport Package：Wooden Drum, Steel-Wooden Drum
• Trademark：Yifang
• Origin：China
• Production Capacity：2000km,Month

Basic Info.

Wire Core Material Cu or Al Certification ISO, CCC, CE Model YJLV22 Transport Package Wooden Drum, Steel-Wooden Drum Trademark Yifang Origin China Production Capacity 2000km/Month

Product Description

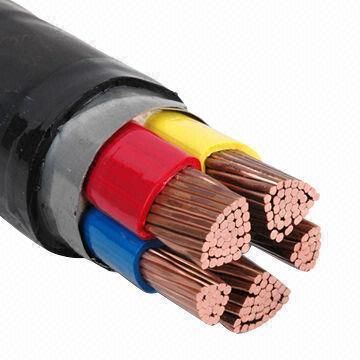

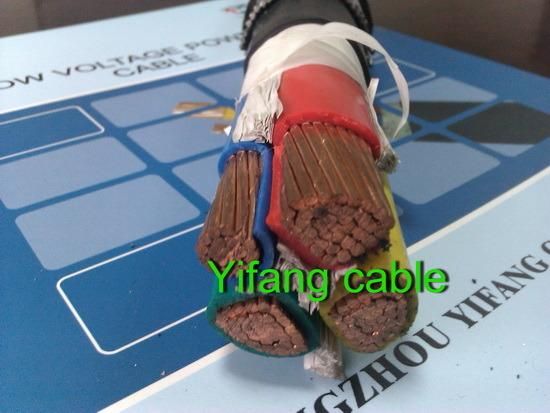

0.6/1KV Copper/Aluminum power cable 5X10,5X16,5X25, 5X35,5x50, 5X70,5X95, 5X120, 5X150mm2


Application:0.6/1kV XLPE insulated power cable is used indoor or outdoor, in tunnel, cable furrow or pipe. It is able to bear external mechanical forces, but the tractive force during laying.

Standards :  IEC 60502,BS 5467, NF C 32-322 ,DIN,etc

Rated Voltage Uo/U (Um) : 0.6/1 KV

Conductor: Copper  or Aluminum

Conductor shape : Stranded circular or shaped (sector) conductor

Cores number: 1C, 2C, 3C,4C,5C, 3C+1E,4C+1E,3C+2E

Insulation: XLPE (Cross-Linked Polyethylene)  or  PVC (polyvinyl chloride) with multi color.

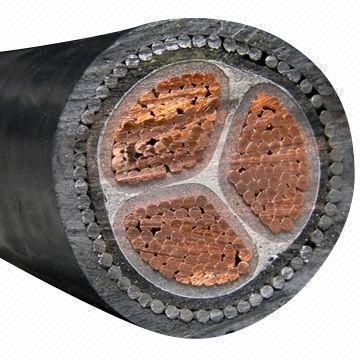

Armor: non-armor, steel tape armored, steel wire armored, aluminum wire armoured , aluminum tape armoured.

Sheath: PVC / PE/ LSZH

Sheath Color: Black or Colors as your request.

Range of Nominal cross section: 1.5 mm2 ~ 630 mm2

                                                     8AWG~4/0AWG,300MCM,500MCM,750MCM

Usage characteristics:

Max. conductor temperature in service:                    90°C

Short-circuit max. conductor temperature:               250°C

Operating temperature, range :                                 -25 .. 90°C



Flame retardant cables can be available by the special request.

Water blocking cables can be available by the special request.

Certificate: ISO ,CE , SGS, SONCAP , BV , ETC.

Dear friends,we can design and produce power cable with International  and national standards according to your request
