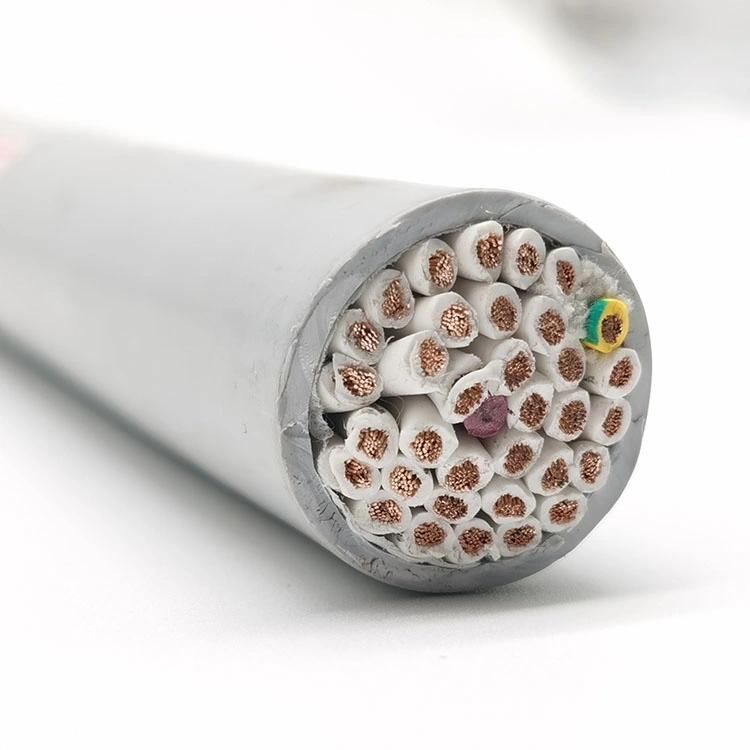

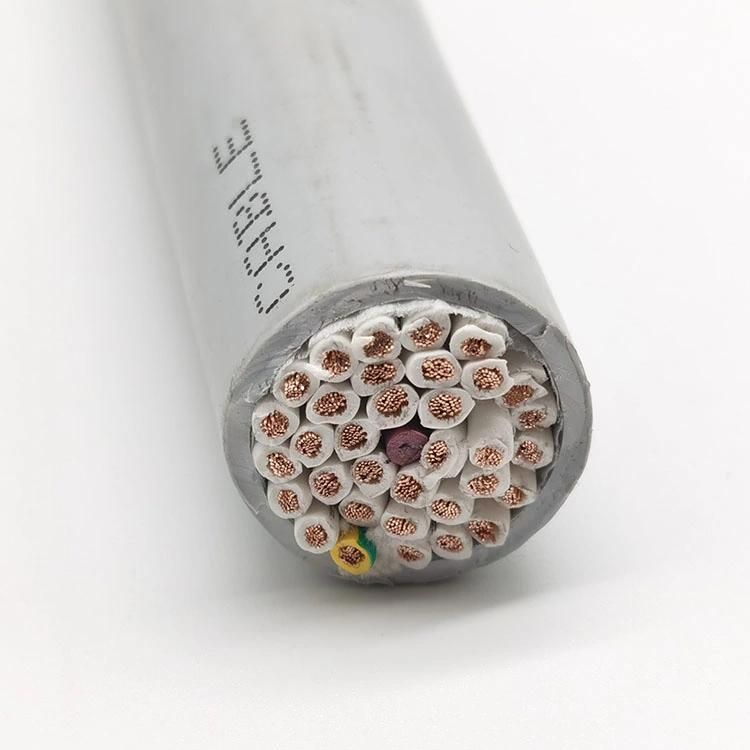

05z1z1-F Cable Low Emission of Smoke and Toxic Gase Electric Cable 0.75mm2 to 16mm2

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：Thermoplastic Halogen Free Compound
  • Insulation Material：Halogen-Free Thermoplastic Compound
  • Material Shape：Round Wire

Base Info

  • Model NO.：05Z1Z1-F Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

Item05Z1Z1-F Cable Halogen-free with Low Smoke Emission Cables ConductorFlexible annealed copper cord, class 5 (EN 60228, IEC 60228)InsulationHalogen-free thermoplastic compound TI6 typeOuter SheathThermoplastic halogen free compound type TM7Core NumberMulticores (As client's require)Temperature rangeMax operating temperature: 70°C
Min temperature of installation: 5°C
Max stocking temperature: 40°C
Max temperature of short circuit: 150 °CRated voltage300/500 VColorOptionalApplicationUse in premises where is requested a low level of smoke and corrosive gases emission in case of fire or burning. Use in domestic premises and offices. Suitable for ordinary duty applications and household appliances, including damp premises. (e.g. vacuum cleaners, washing machines, tumble dryers and refrigerators). Temporary short-term outdoors use allowed. Not suitable for use with cooking and heating appliances with risk of contact with hot parts and at very high temperature in lighting devices. Cables not providing circuit integrity in case of fire.
