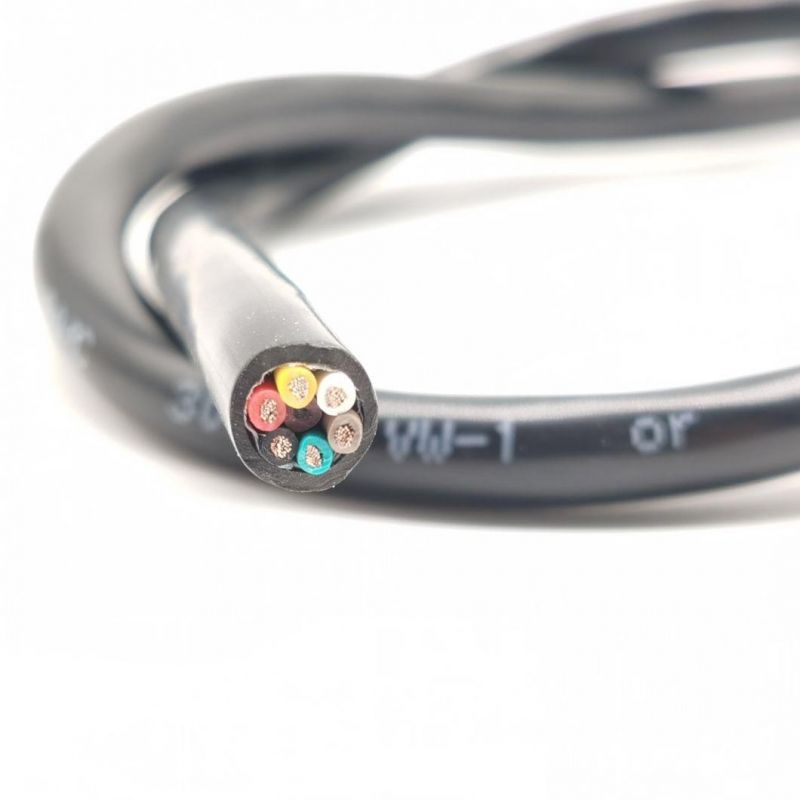

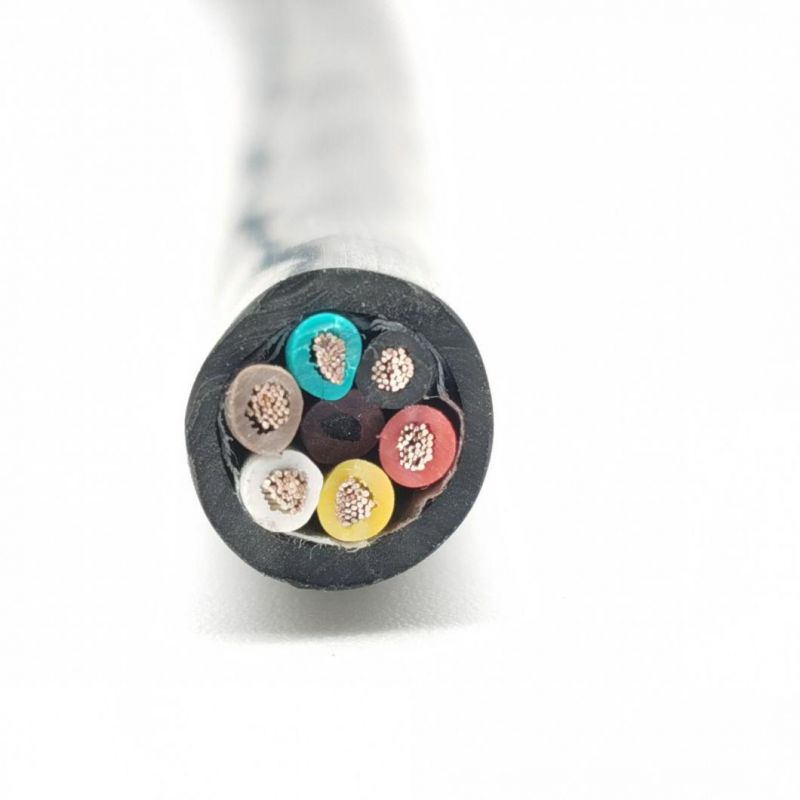

E-Yy Cable PVC Insulated Heavy Current Cable 0.6/1kv Single or Multi Core

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Application：Fixed Installations
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：E-YY Cable
  • Range of Application：Flame Retardant
  • Certification：ISO9001, CE, UL, RoHS
  • Transport Package：Optional
  • Specification：Single or Multi Core
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemPVC Insulated E-YY CableConductorSolid or stranded bare copperInsulationPolyvinylchloride (PVC)Inner SheathPVC core covering or tapingOuter SheathPolyvinylchloride (PVC)Rated Voltage600/1000VTest Voltage4000VTemperature RangeIn motion:-5°C till +70°C
Fixed:-20°C till +70°CBending radiusSingle-core style: 15 x diameter
Multi-core style: 12 x diameterColorOptionalApplication

This power cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to be Expected.
