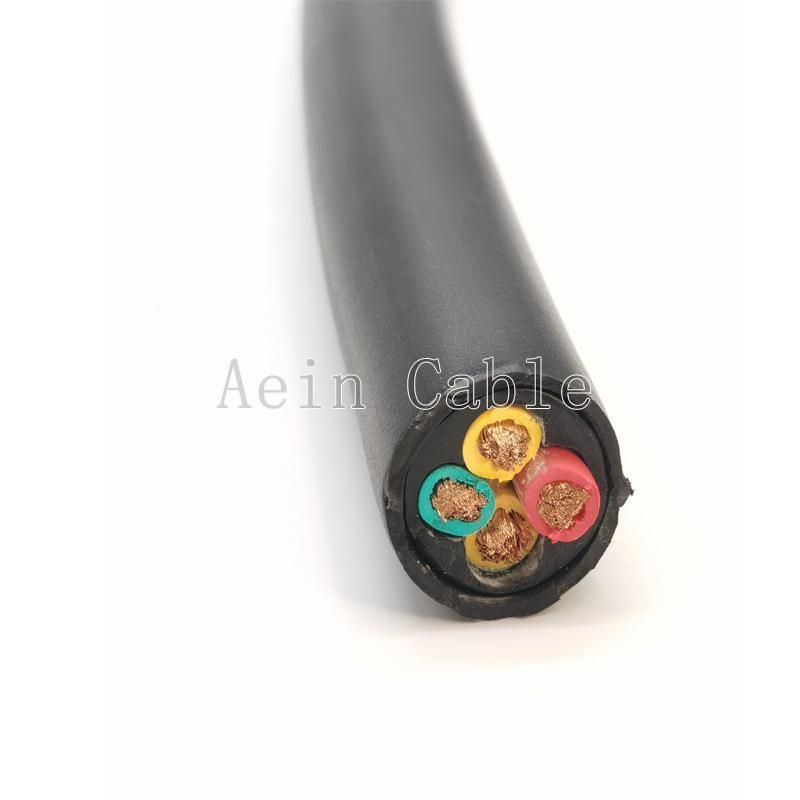

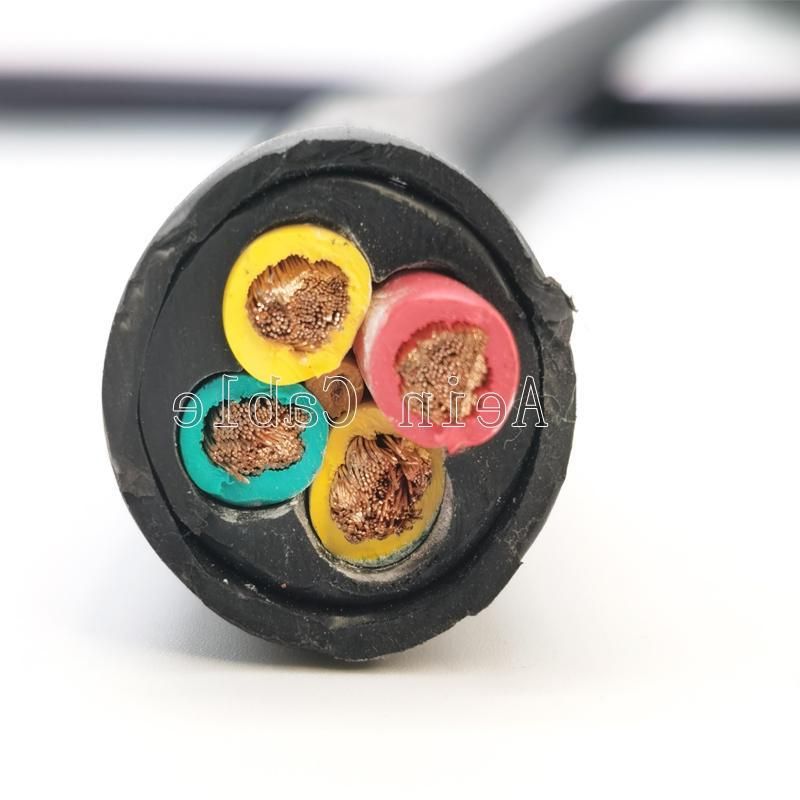

M (StD) Hou (EMV) Cable 4X (2X1) mm2 7X (2X1) mm2 Tkd Alternative Control Electric Cables

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：Special Rubber-Compound
  • Insulation Material：Rubber Compound
  • Material Shape：Round Wire

Base Info

  • Model NO.：M(StD)HOU (EMV) Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemM(StD)HOU (EMV) Cable 4x(2x1)mm2 7x(2x1)mm2 Control Electric CablesConductor class acc. to DIN VDE 0295 class 5/6 resp. IEC 60228 class 5/6ConductorBare copper strandInsulationRubber compoundShield Coated foil & wrapped tinned wireOuter SheathSpecial rubber-compoundCore NumberMulti-coresTemperature rangeOperat. temp. fixed min/max -40 °C / +80 °C
Operat. temp. moved min/max -30 °C / +80 °C
Temp. at conductor +90 °CRated voltage0,6/1 kVTesting voltage2 kVHalogen freeacc. to IEC 60754-1Smoke densityacc. to IEC 61034-2Burning behavior Self-extinguishing and flame retardant acc. to IEC
60332-1Standard According or similar to DIN VDE 0250 part 809ColorOptionalApplicationPower and control cable for trolley systems, transfer lines, machine-tools, on hoisting
devices, lift, crane and container bridges. Also in applications where cables are bended
strongly in permanent moving operation in one level. Suitable for dry, humid and wet
rooms and for outdoor use.
