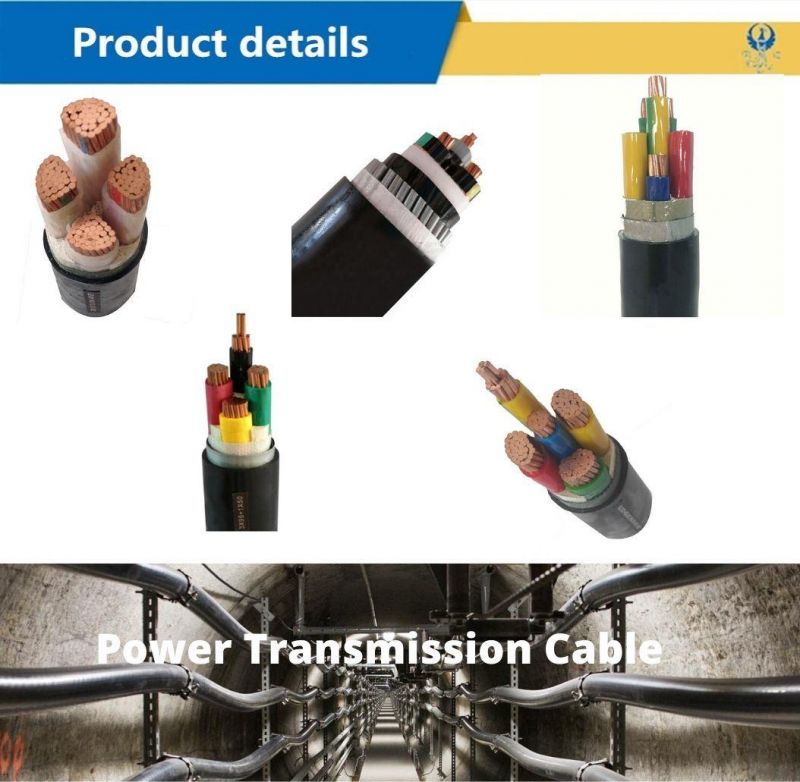

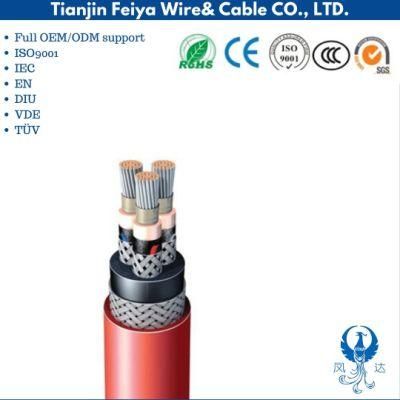

H07rn-F 0.6/1kv N2xy XLPE Insulation LV Cable 4core Steel Wire Armored PVC Sheath Flame Retardant UV Protection Control Electric Coaxial Cable
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Application：Construction, Overhead, Underground, Industrial, Power Station, Telecommunication, Computer, Car, to Be Fixedly Laid Indoors, in Tunnel
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE,PVC
- Sheath Material：PE,PVC
- Material Shape：Round Wire
Base Info
- Model NO.：N2xy,YJV
- Wire Core Material：Copper or Aluminum
- Certification：ISO, CCC, CE, RoHS, UL, VDE
- Model：VV,Yjv,Yjy,Vlv,Yjlv,Yjly
- Brand：Feiya
- OEM&ODM：Yes
- Rated Voltage：8.7,15kv,6,10kv,12,20kv,18,30kv,21,35kv
- Operating Environment：Underground
- Material：PVC,PE Jacket
- Other Service：Can Be Customized
- Use Place：Power Transmission and Distribution
- Lowsmokezerohalogan：LSZH, Lsoh, Ls0h, Lsfh, Ohls
- Colors：Can Be Customized
- Other Standards：XP 00, Yxv-U (-R), C2xy
- Transport Package：Wooden Box Packing or Pallet Shipping Containers
- Specification：copper,aluminum,pvc
- Trademark：Feiya
- Origin：China
- HS Code：8544
- Production Capacity：80000 Meter,Meters Per Month
Description
ELECTRICAL CHARACTERISTICS
- Operating Voltage, Uo/U : 0.6/1KV
- Operating Temperature : -15'C to 90'C
- Final Short Circuit Temperature : 250′ C
- Test Voltage : 3.5kV for 5 minutes
- Current Carrying Capacity
- Clipped Direct (Ref Method C)
- One 3 or 4-Core Cable, 3-Phase A.C : 73A
- In free air or on a perforated cable tray etc, horizontal or vertical (Ref method E)
- One 3 or 4-Core Cable, 3-Phase A.C : 78A
- Direct in Ground or in ducting in ground, in or around building (Ref method D)
- One 3 or 4-Core Cable, 3-Phase A.C : 58A
- Clipped Direct (Ref Method C)
REFERENCE STANDARD
- Design Specification: IEC60502-1
- Conductor: IEC60228, BS EN60228
- Flame Retardancy: IEC60332-1, BS EN60332-1
INSTALLATION REFERENCE
- Minimum Bending Radius(mm): 8 x cable overall diameter
- Max. Pulling Tension (N/mm2) : 70
