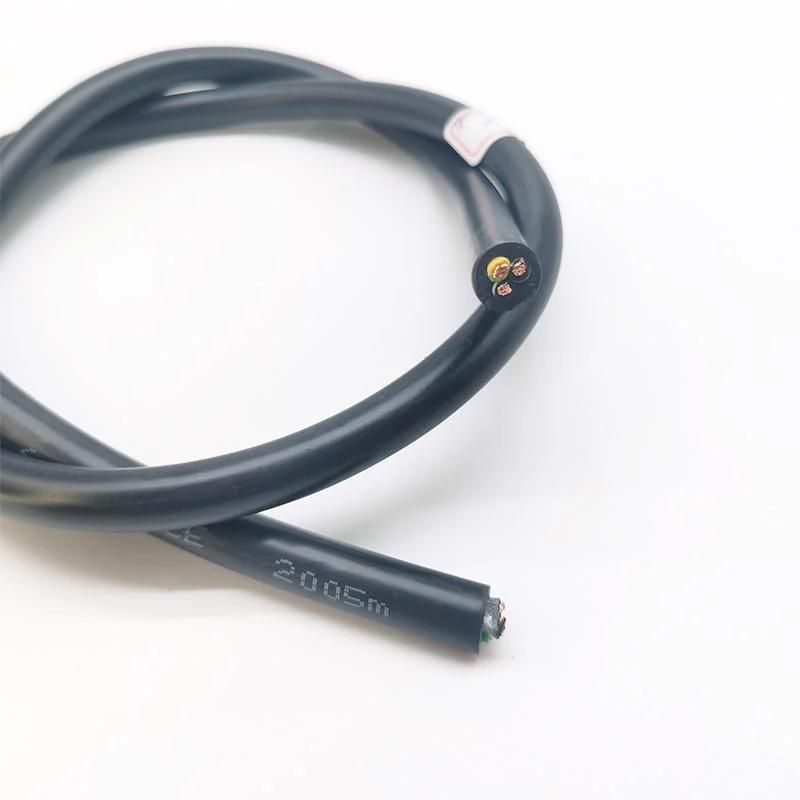

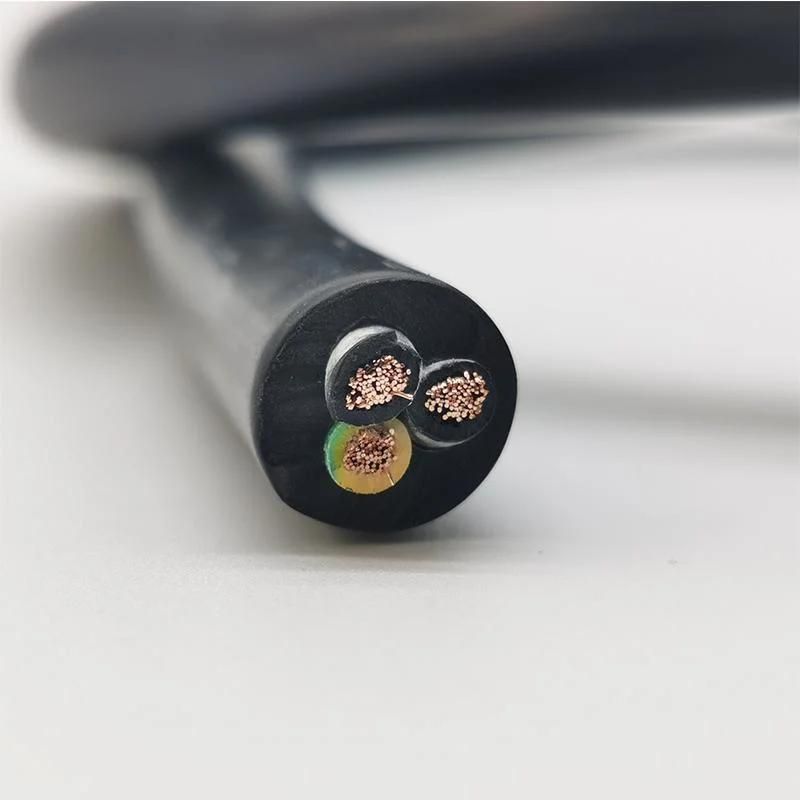

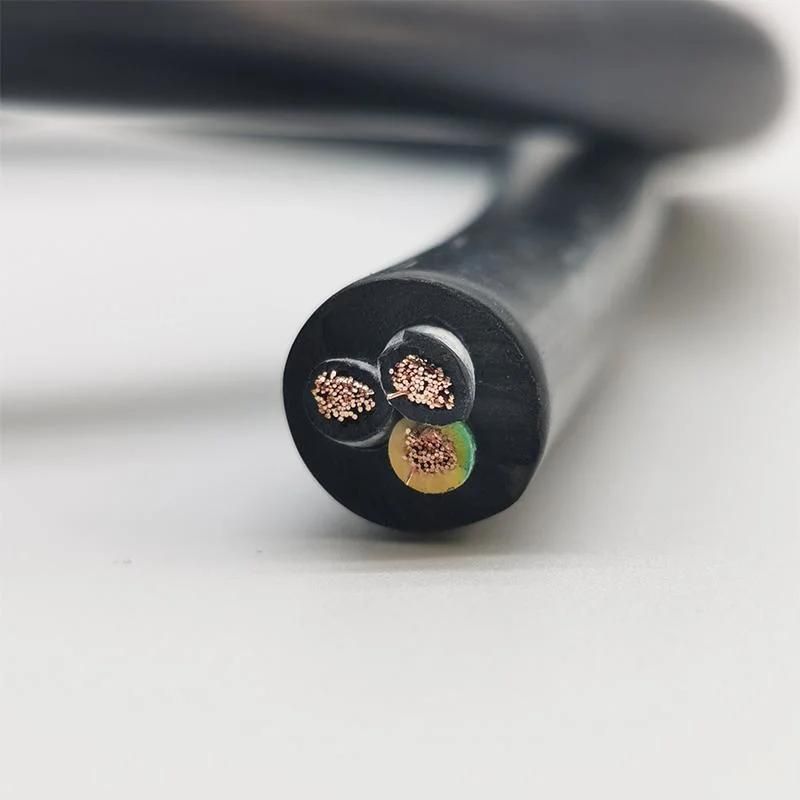

H03z1z1-F/H05z1z1-F Cable Environment Protection Type Halogen-Free Cables

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：Special Environment Protection (Cross-Linking)
  • Insulation Material：Special Environment Protection (Cross-Linking)
  • Material Shape：Round Wire

Base Info

  • Model NO.：H03Z1Z1-F,H05Z1Z1-F Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemH03Z1Z1-F/H05Z1Z1-F Cable Environment Protection Type Halogen-free CablesConductorCopper wire bareInsulationSpecial environment protection (cross-linking) halogen-free insulationOuter sheathSpecial environment protection (cross-linking) halogen-free sheathCore NumberMulticores (As client's requirement)Peak operating voltageUo/U 300/300 V Test Voltage2000 VTemperatureFlexible Installations: -25 ºC ~ + 70 ºC
Fixed Installations: -40 ºC ~ + 70 ºCColorOptionalApplicationThis cable can be used in situations where there are clear requirements for halogen-free, low-smoke and low-corrosive gas characteristics in the event of a fire. Can be used in home appliances, kitchens and offices, low mechanical stress applications in small devices, such as office equipment, radios,table lamps or floor lamps.
