CE Certified Ozone Resistant Cable Ngflgoeu Muticore Cable 300/500V

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：Cr (Chloroprene Rubber)
  • Insulation Material：Epr (Ethylene Propylene Rubber)
  • Material Shape：Round Wire

Base Info

  • Model NO.：NGFLGOEU Cable
  • Range of Application：Flame Retardant
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multi core
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

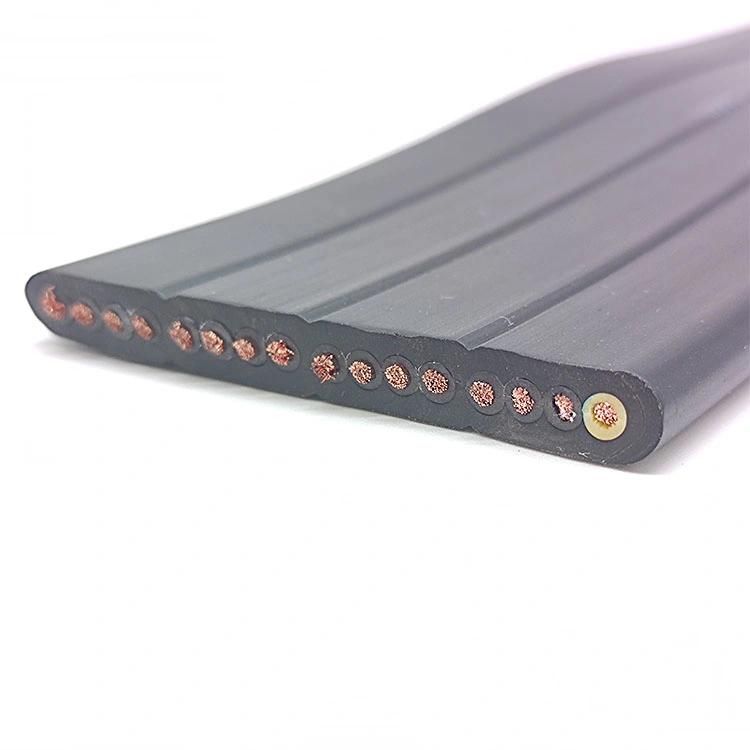

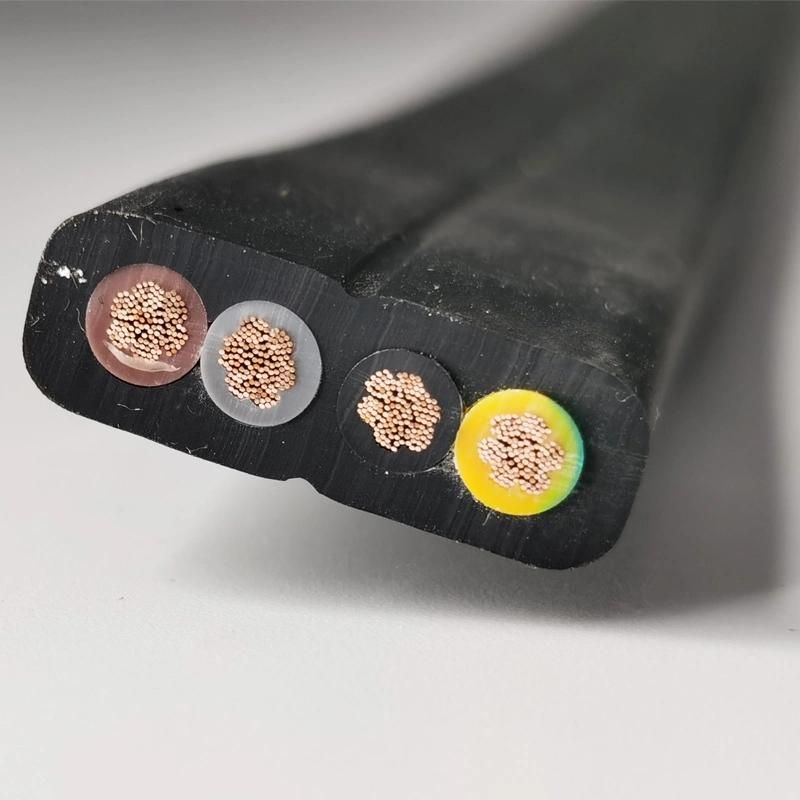

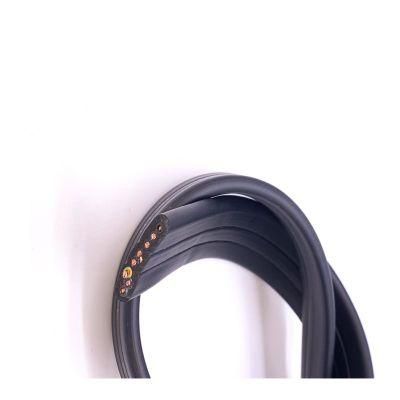

ItemFlat Wire NGFLGOEU Cable ConductorCopperInsulationEPR (Ethylene Propylene Rubber)SheathCR (Chloroprene Rubber)Specification1.5mm2 up to 120mm2 (as client's request)Nominal VoltageU0/U: 300/500VTest voltage2000 VTemperature RangeFixed: -40ºC to +90ºC
Flexed: -35ºC to +90ºCMinimum Bending RadiusFixed: 5 x overall diameter
Moving: 10 x overall diameterColorOptionalCertificationCEApplicationFor the connection of mobile parts of machine tools, conveyor plants and large-scale equipment, if the cable is exposed to bends in only one level (cable trolley). In dry, damp and wet rooms as well as outdoors
