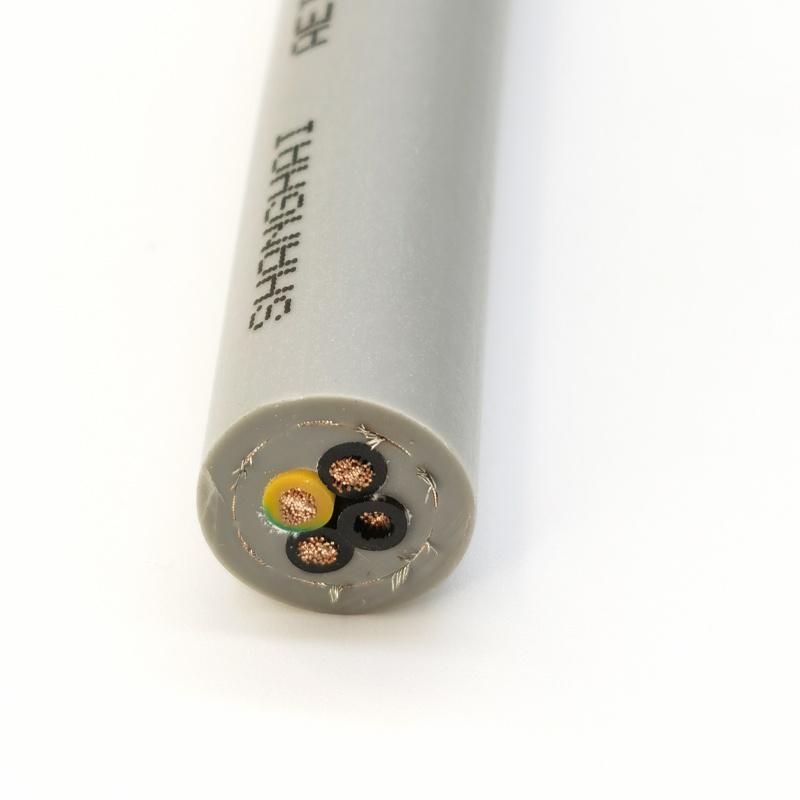

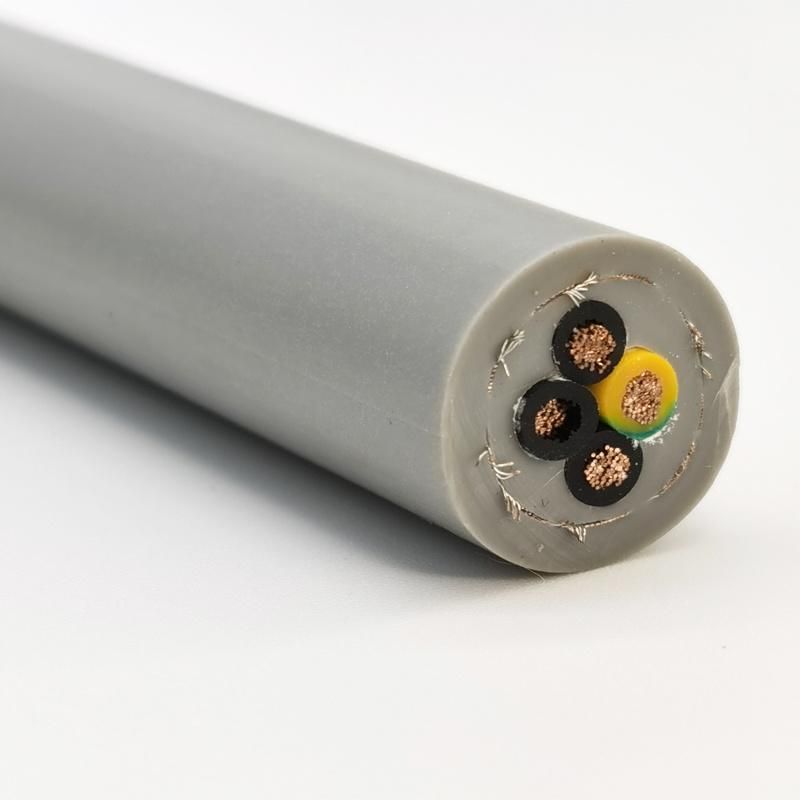

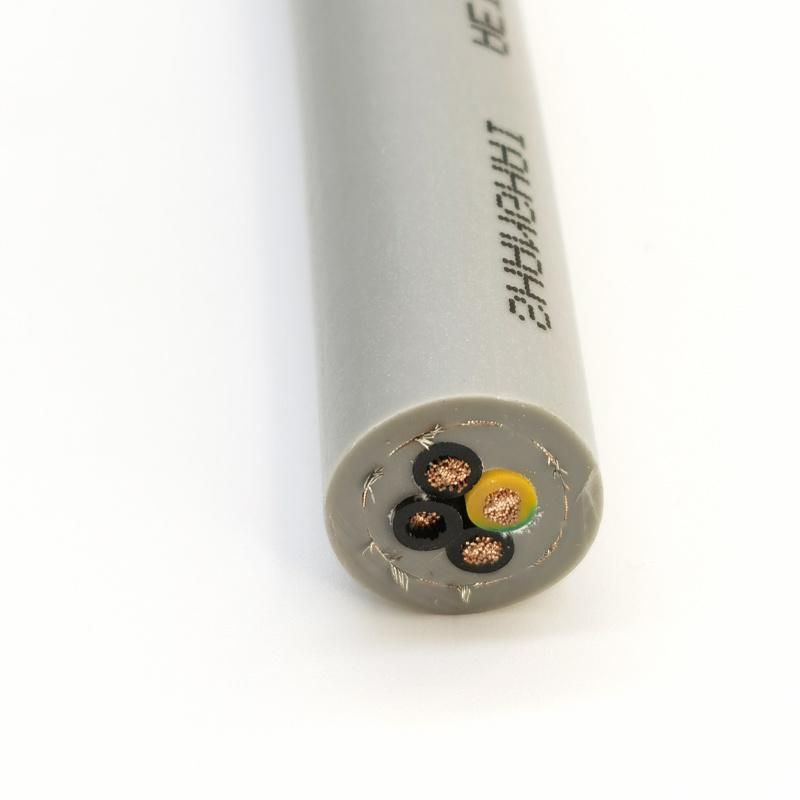

Halogen-Free Control and Connection Silicone Cables Temperature-Resistant

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：Silicone
  • Insulation Material：Silicone
  • Material Shape：Round Wire

Base Info

  • Model NO.：EWKF-C Cable
  • Range of Application：LSOH
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemHalogen-Free Control And Connection Silicone Cables Temperature-resistantConductorCopper wire tinned, finely strandedInsulationSilicone Inner sheathSilicone ScreenBraided screen of tinned copper wires, approx. coverage 85%WrappingFoilOuter sheathSpecial SiliconeOperating Voltage300/500 V Test Voltage2 kVTemperature RangeFlexible -25°C to +180°C
Fixed -60°C to +180°CMinimum Bending RadiusFlexible 10x Outer-Ø
Fixed 5x Outer-ØColorOptional

Properties

Resistant to: ozone, oxygen, weathering effects, alcohols, dilute acids, alkalis, saline solutions, oxidising agents, high molecular weight oils, vegetable and animal fats, plasticisers and clophen, seawater;
Abrasion-resistant, notch-resistant, tear-resistant;
Higher mechanical resilience, increased abrasion resistance and longer service life than conventional silicone cables due to EWKF quality (EWKF stands for Einreiß-, Weiterreiß- and KerbFestigkeit, meaning tear, tear propagation and notch; resistance);
For outdoor use;
Halogen-free;
High flash point;
Leaves an insulating layer of SiO2 when exposed to flames;
No significant changes in dielectric strength and insulation resistance even at higher temperatures.ApplicationHalogen-free silicone cable for applications that require an increased mechanical strength as well as a higher temperature resistance. For use in dry, damp and wet rooms as well as outdoors. Suitable for use in air conditioning and heating systems, in saunas and solariums, in foundries, in steel, cement and ceramic plants as well as in furnaces and lighting fixtures. An interference-free transmission of signals and pulse is assured by the high screening density. EMC = Electromagnetic Compatibility; in order to optimise EMC properties, we recommend a double-sided and all-round large contact area of the copper braiding.
