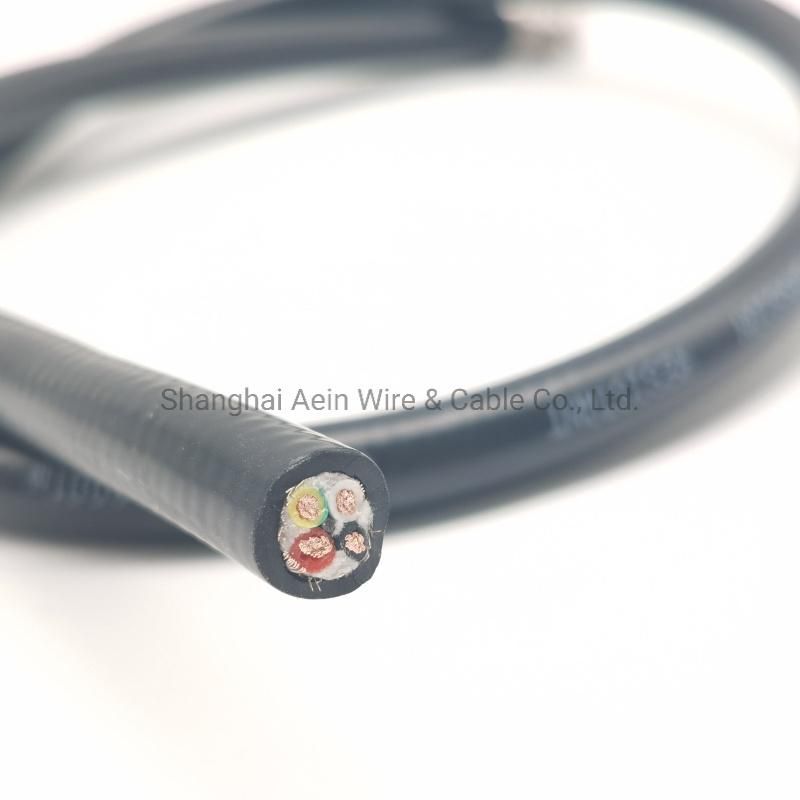

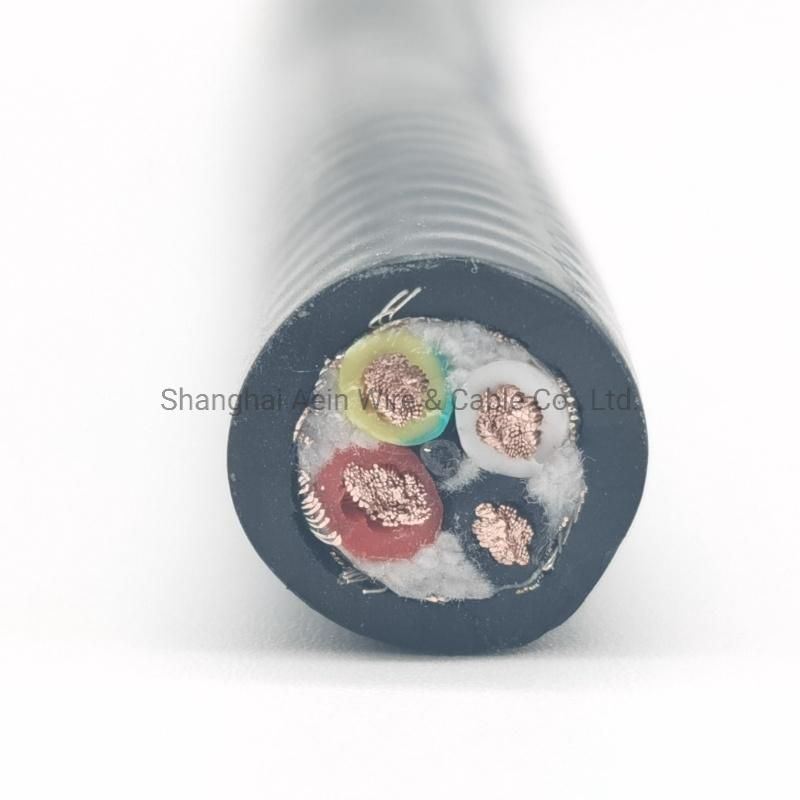

| Item | Helukabel Alternative Heat Resistant Halogen-Free SiHF-C-Si Silicone Cable |
| Conductor | Copper wire tinned, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5 |
| Insulation | Silicone |
| Wrapping | Foil |

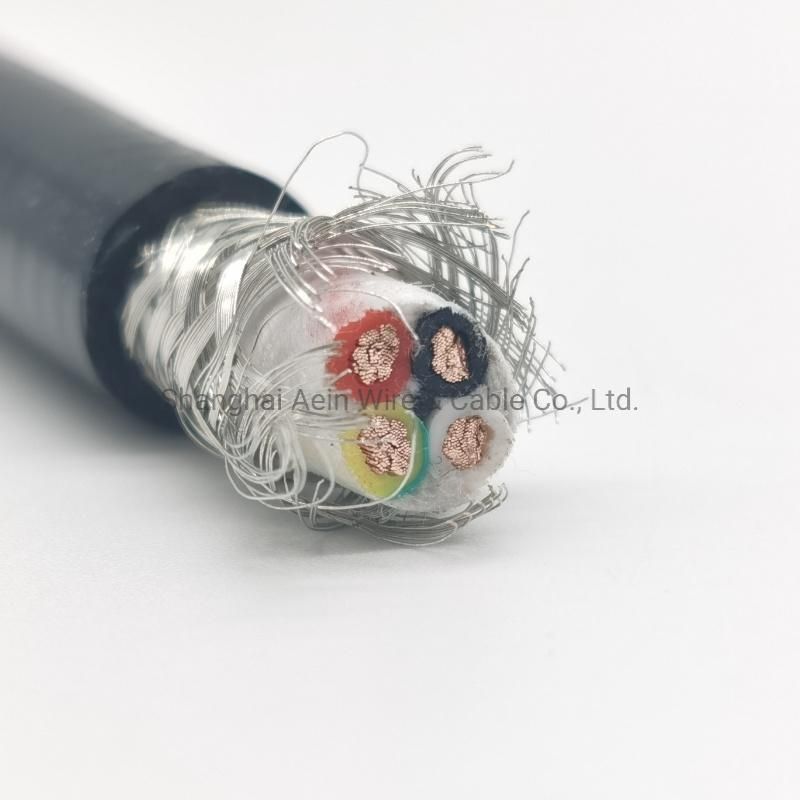

| Screen | Braided screen of tinned copper wires, approx. coverage 85% |
| Outer Sheath | Silicone |
| Nominal voltage | VDE AC U0/U 300/500 V
UL (AWM) AC 600 V |
| Test voltage core/core | 2000 V |
| Temperature range | VDE -60°C to +180°C
UL (AWM) -50°C to +150°C |
| Color | Optional |
Properties | ·Resistant to: ozone, oxygen, weathering effects, alcohols, dilute acids, alkalis, saline solutions, oxidising agents, high molecular weight oils, vegetable and animal fats, plasticisers and clophen, seawater·Halogen-free·High flash point·Leaves an insulating layer of SiO2 when exposed to flames
·No significant changes in dielectric strength and insulation resistance even at higher temperatures |
| Application | The silicone cable, developed for export-oriented machine builders, particularly for USA and Canada. Silicone cables are halogen-free and are especially suited for installation in power stations, iron, steel and rolling mills, in solariums, sauna facilities, foundries, in the aviation industry, ship building, as well as in ceramic, glass and cement factories. Due to the elastic properties of the core insulation, this silicone cable is ideally suitable as a flexible connection cable. An interference-free transmission of signals and pulse is assured by the high screening density. EMC= Electromagnetic Compatibility; in order to optimise EMC properties, we recommend a double-sided and all-round large contact area of the copper braiding. |
