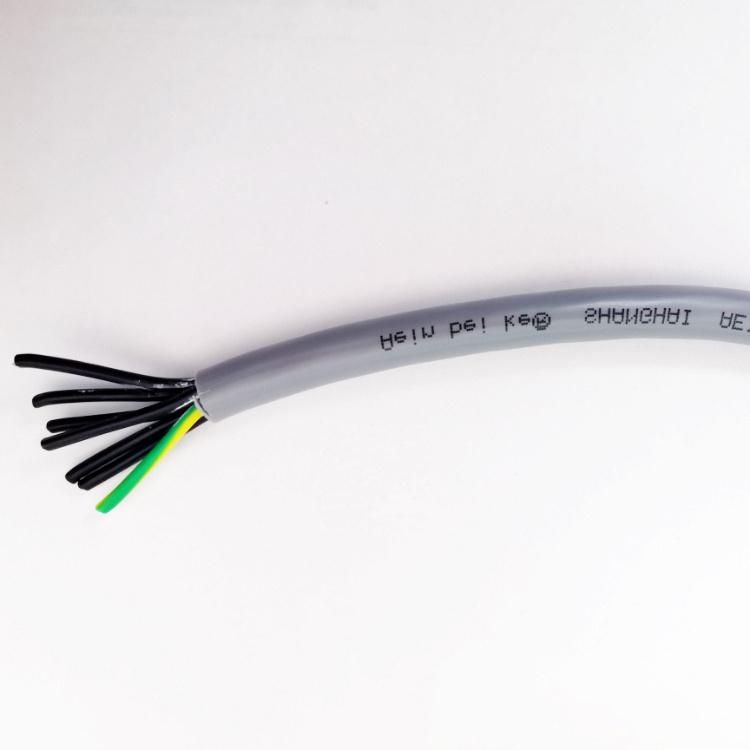

Cc 500 B Cable PVC Connection Cable with Coloured Cores 300/500 V to 450/750 V

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：CC 500 B Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, CCC, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemCC 500 B Cable PVC Connection Cable with Coloured Cores 300/500 V to 450/750 VConductor

Bare copper strands

InsulationPVCStrandingin layersWrappingNon-woven tapeOuter sheathPVCCore numberMulticores (As client's requirement)Nominal voltage

0,50 mm² - 1,50 mm²: Uo/U 300/500 V

2,50 mm² - 50,0 mm²: Uo/U 450/750 V

Test voltageCore/core 3000 VMin. bending radius fixed

Fixed laying: 4 x d

Flexible application: 6 x d

Temperature range

Fixed laying: -40/+70°C

Flexible application: +5/+70°C

ApplicationCC 500 B is a PVC connection cable with coloured cores and a small bending radius which is also flexible. It is recommended for use in control devices like in the construction of service cabinets, machine tools, data processing, packaging machines, textile and wood working machine construction, and cleansing appliances.
