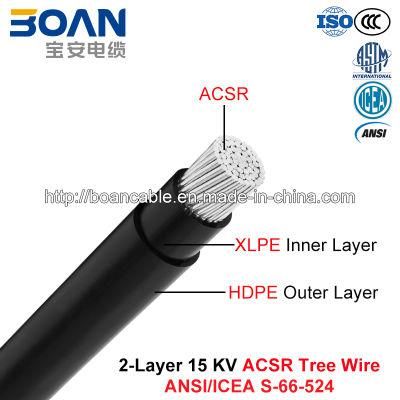

Tree Wire Cable, 15 Kv 2-Layer ACSR, ACSR/XLPE/HDPE (ANSI/ICEA S-66-524)
Jiangsu Boan Cable Co., Ltd.- Referred Standard：ANSI,Icea S-66-524
- Rated Voltage：15 Kv
- Size Range：48.69-795 Kcmil
- Number of Cores：1
- Conductor Material：ACSR
- Inner Covering Material：XLPE
Base Info
- Model NO.：Tree Wire Cable
- Outer Covering Material：HDPE
- Transport Package：Fumigated Steel-Wooden Drum,Wooden Drum
- Specification：SGS
- Trademark：DingAn
- Origin：Jiangsu Yixing, China
- HS Code：8544492100
- Production Capacity：22000 Km,Year
Description
2-Layer 15kV ACSR Tree WireSize Conductor Diameter Covering Thickness Cable O.D. Rated Strength Weight per 1000 ft. (mils) (AWG or kcmil) Stranding (mils) Inner Layer Outer Layer (mils) (lbs) (lbs) 4 6/1 250 75 75 550 1767 136 2 6/1 316 75 75 616 2708 184 1/0 6/1 398 75 75 698 4161 255 2/0 6/1 447 75 75 747 5045 303 3/0 6/1 502 75 75 802 6289 362 4/0 6/1 563 75 75 863 7933 432 266.8 18/1 609 75 75 909 6536 441 266.8 26/7 642 75 75 942 10735 452 336.4 18/1 684 75 75 984 8246 536 336.4 26/7 720 75 75 1020 13395 555 336.4 30/7 741 75 75 1041 16435 621 397.5 18/1 743 75 75 1043 9443 611 397.5 24/7 772 75 75 1072 13870 609 397.5 26/7 783 75 75 1083 1545 645 477 24/7 846 75 75 1146 16340 719 477 26/7 858 75 75 1158 18525 762 477 30/7 883 75 75 1183 22610 854 556.5 18/1 879 75 75 1179 13015 813 556.5 24/7 914 75 75 1214 18810 828 556.5 26/7 927 75 75 1227 21470 878 636 18/1 940 75 75 1240 14915 912 636 24/7 977 75 75 1277 20900 936 636 26/7 990 75 75 1290 23940 993 795 26/7 1108 80 75 1428 29925 1234 795 45/7 1063 80 80 1383 20995 1031 48.69 7 250 75 75 550 1584 124 77.47 7 316 75 75 616 2520 165 123.3 7 398 75 75 698 4014 225 155.4 7 447 75 75 747 4851 265 195.7 7 502 75 75 802 6111 314 246.9 7 563 75 75 863 7704 376 312.8 19 642 75 75 942 9900 450 394.5 19 720 75 75 1020 11970 543 465.4 19 782 75 75 1082 14040 623 559.5 19 858 75 75 1158 16920 727 652.4 19 927 75 75 1227 19710 828 740.8 37 990 80 80 1310 21960 938
