Cat5e LAN Cable with 2c Power Cable Double Jacket
Zhejiang Kuayue Cable Co., Ltd.- Application：Local Communication Cable, LAN Cable
- Conductor Material：Copper
- Cover Material：PVC+PE
- Type：Cat 5
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：cat5e+2c
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS, CCC
- Model：Cat5e+2c
- Brand：Kuayue or OEM
- Color：Grey,Black
- Length：305m
- MOQ：15km
- Conductor：4*2*0.5mm Bare Copper
- Insulation：0.92mm HDPE
- 1st Jacket：PVC
- 2ND Jacket：PE
- Power Cable：2*16*0.25mm Al,CCA

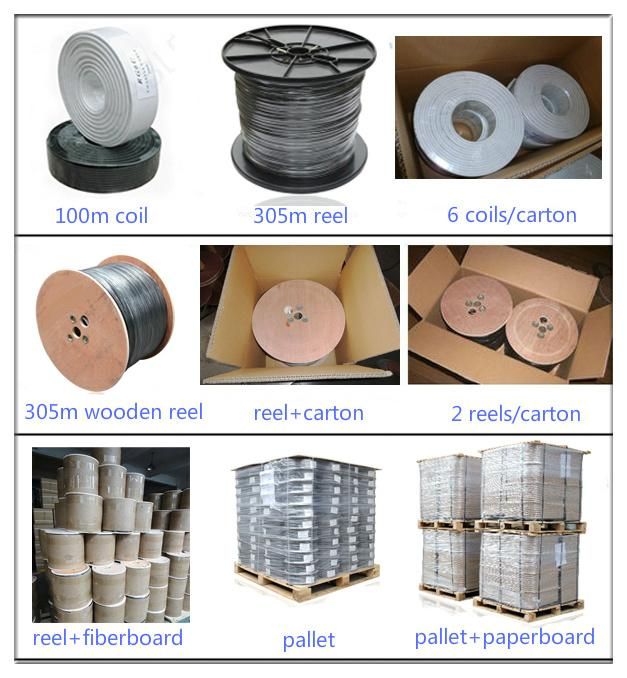

- Transport Package：Other Packing Is Available as Your Request.
- Specification：wooden reel, carton, pallet
- Trademark：Hanli
- Origin：Zhejiang
- Production Capacity：200km,Day
Description
Impedance(Ohm)100±15 100±15 Velocity of propagation 70 70 Minimum Return Loss(dB) ≥23 ≥23 Frequency Attenuation(dB/100m) NEXT PS-NEXT ELFEXT PS-ELFEXT 1MHz 2.0 62.3 65.3 63.8 60.8 4MHz 4.1 53.3 56.3 51.7 48.7 10MHz 6.5 47.3 50.3 43.8 40.8 16MHz 8.2 44.3 47.3 39.7 36.7 20MHz 9.3 42.8 45.8 37.7 34.7 31.25MHz 11.7 39.9 42.9 33.9 30.9 62.5MHz 17.0 35.4 38.4 27.8 24.8 100MHz 22.0 32.3 35.3 23.8 20.8 Application: 100 Base-T4 100 Base-TX 100VG - AnyLAN 1000 Base-T (Gigabit Ethernet) 155 Mbps ATM 622 Mbps ATM
Company Information

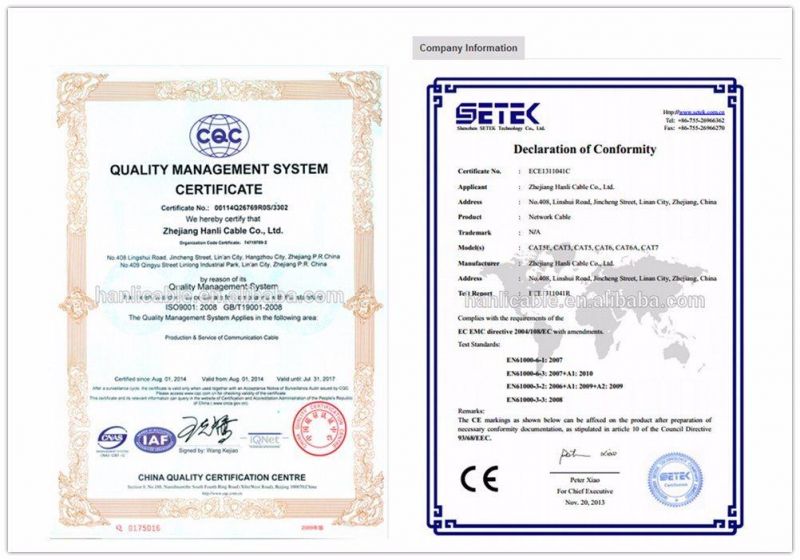

Certification
