• Model NO.：H07V-K NYAF
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CCC
• Brand：OEM
• Transport Package：Wooden Drum
• Specification：1.5mm2 to 500mm2
• Trademark：OEM
• Origin：China(Mainland)
• HS Code：8544492100
• Production Capacity：5000 Kilometer,Month

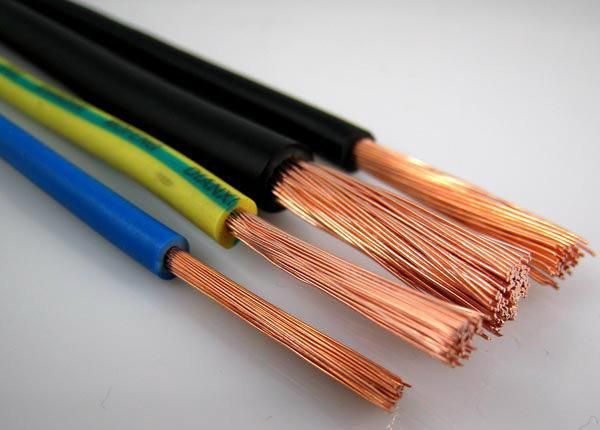

Code:NYAF Cable(H07V-K)Standarts:TS 9758, IEC 227, VDE 0281, BS 6004Construction:1- Flexible Copper Conductor  2- PVC InsulationApplication:For protected installation in equipment and lighting fitting.  Also for in conduit, on and under plaster.Technical Data:Max. operating temperature 70 ºC  Short circuit temperature 160 ºC

Technical Characteristics

WORKING VOLTAGE	450/750V
TEST VOLTAGE	2500 volts
FLEXING BENDING RADIUS	12.5 x Ø
STATIC BENDING RADIUS	12.5 x Ø
FLEXING TEMPERATURE	-5º C to +70º C
STATIC TEMPERATURE	-30º C to +80º C
SHORT CIRCUIT TEMPERATURE	+160º C
FLAME RETARDANT	NF C 32-070
INSULATION RESISTANCE	10 MΩ x km

Cable Parameter

AWG	NO. OF CORES X NOMINAL CROSS SECTIONAL AREA	NOMINAL THICKNESS OF INSULATION	NOMINAL OVERALL DIAMETER	NOMINAL COPPER WEIGHT	NOMINAL WEIGHT
	# X MM²	MM	MM	KG/KM	KG/KM
16(30/30)	1 x 1.5	0,7	3.1	14.4	20
14(50/30)	1 x 2.5	0,8	3.6	24.0	31
12(56/28)	1 x 4	0,8	4.3	38.0	48
10(84/28)	1 x 6	0,8	4.9	58.0	69
8(80/26)	1 x 10	1,0	6.4	96.0	121
6(128/26)	1 x 16	1,0	8.1	154.0	211
4(200/26)	1 x 25	1,2	9.8	240	303
2 (280/26)	1 x 35	1,2	11.1	336	417
1 (400/26)	1 x 50	1,4	13.1	480	539
2/0 (356/24)	1 x 70	1,4	15.5	672	730
3/0 (485/24)	1 x 95	1,6	17.2	912	900
4/0 (614/24)	1 x 120	1,6	19.7	1152	1135
300 MCM (765/24)	1 x 150	1,8	21.3	1440	1410
350 MCM (944/24)	1 x 185	2,0	23.4	1776	1845
500MCM(1225/24)	1 x 240	2,2	27.1	2304	2270

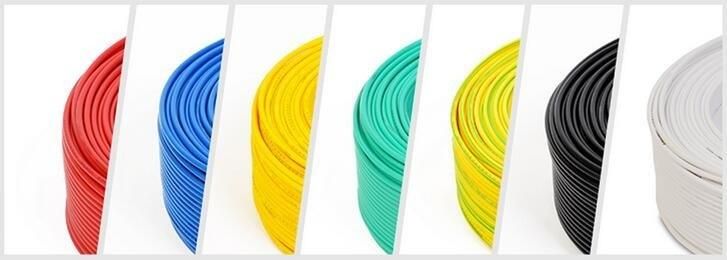

Available Color

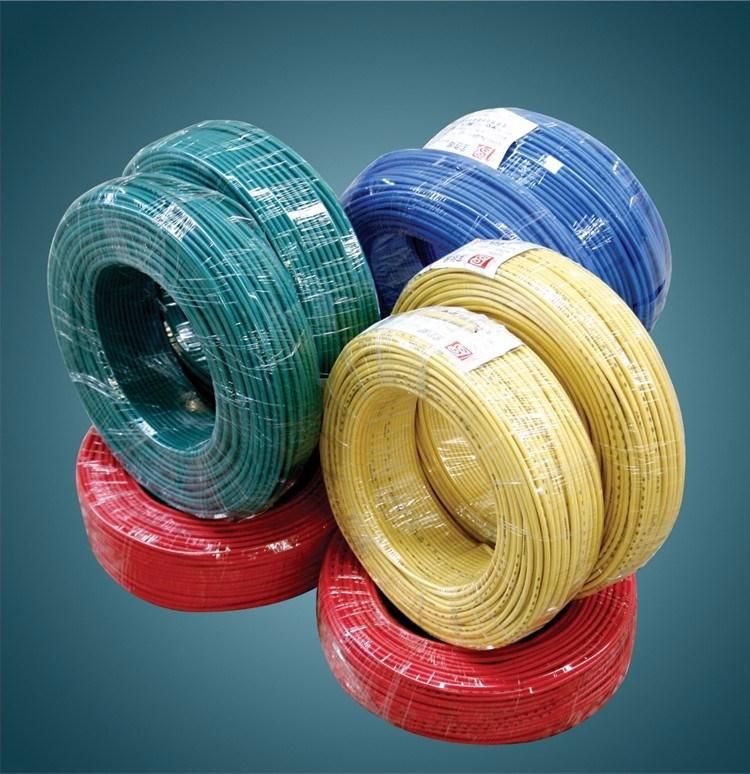

Packing shipping



Why Choose Us ?
1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10.We have a good reputation in the overseas

If you have another question, pls feel free to contact us below
