• Model NO.：AMKA
• Material Shape：Round Wire
• Range of Application：Overhead
• Certification：ISO9001, CCC
• Brand：Hongda
• Phase Conductors：2, 3 or 4 Longitudinal Ridges
• Optional Conductor：No Ridges
• Transport Package：Wooden Drum
• Specification：6sqmm to 150sqmm
• Trademark：Hongda, accept OEM
• Origin：China
• HS Code：8544492100
• Production Capacity：45km,Day

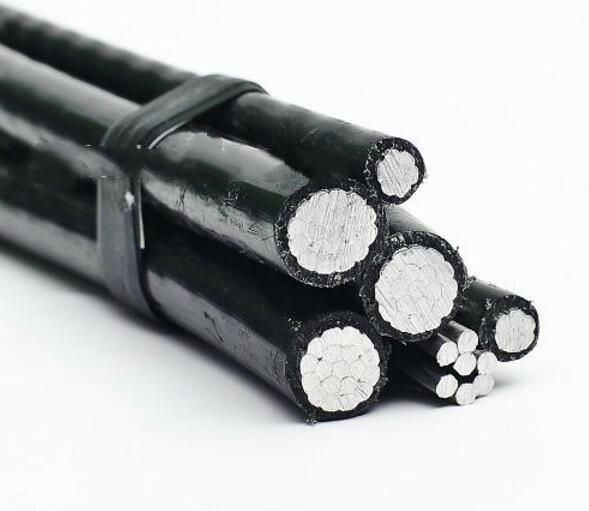

Conductor16 mm²: solid aluminium wire
25-120 mm²: stranded aluminium wireInsulationBlack weather-resistant PE / XLPE compoundMessengerStranded aluminium alloy wireLaying upInsulated conductors are laid up around the messenger
IDENTIFICATION OF CORES
Phase conductors: 2, 3 or 4 longitudinal ridges
Optional conductor: no ridges

STANDARDS
SFS 2200
HD 626-5D
NFC 33-209

CUSTOMS CODE: 8544492100

Mechanical Properties

Cable
SizeConductor
DiameterCore
DiameterSelf Supporting SystemSupporting Core SystemApprox.
Assembly
DiameterApprox.
Assembly
MassMaximum
Design
LoadSupporting
Core SizeApprox.
Assembly
DiameterApprox.
Assembly
MassMaximum
Design
LoadPhase CoresMinMaxMinMaxmm²(mm)(mm)(A)kA(mm)(kg/km)(kN)mm²(mm)(kg/km)(kN)255,66,58,49,625400554,6265076356,67,59,811,127540754,6286126507,78,610,912,329697954,6327306709,310,212,914,3339821454,63494469511,012,014,616,23713021954,6381183612012,513,516,117,54114702470401600815013,915,017,519,24520113095,044187013Above Plus 25mm² Auxiliary Core25N/AN/AN/AN/A25505N/AN/A32612N/A3532645347175034802368357038108738104995421407421288120441575501705150482116561975
(1) Approximate value.
(2) See the basic assumptions at general information of products.
(3) Final installation with careful single bending into final position.
(4) The effective diameter in wind is equal to the length of measuring tape wrapped around the cable divided by the value 3,1416 (pi).
(5) Initial temperature of conductor before short circuit 70°C, final temperature of conductor after short circuit 135°C.
(6) Initial temperature of messenger before short circuit 70°C, final temperature of messenger after short circuit 135°C.

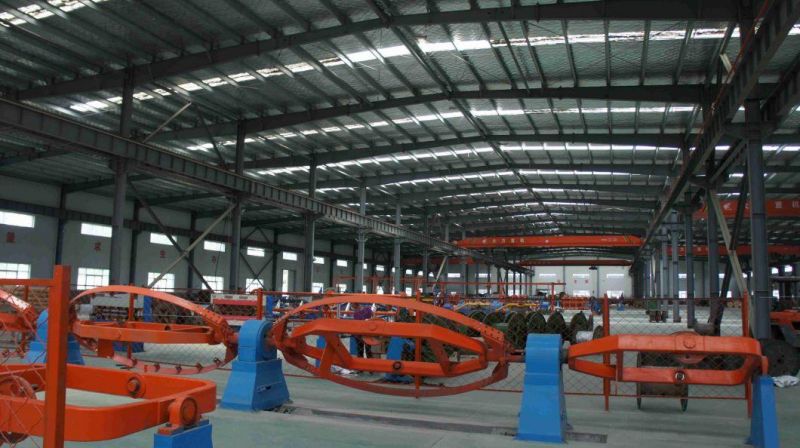

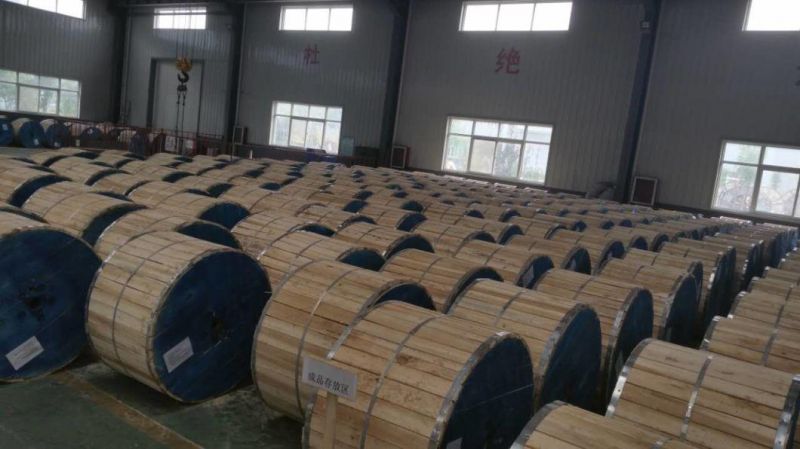

PACKAGE AND FACTORY:



For more information, don't hesitate to contact us on +86-15838290725
