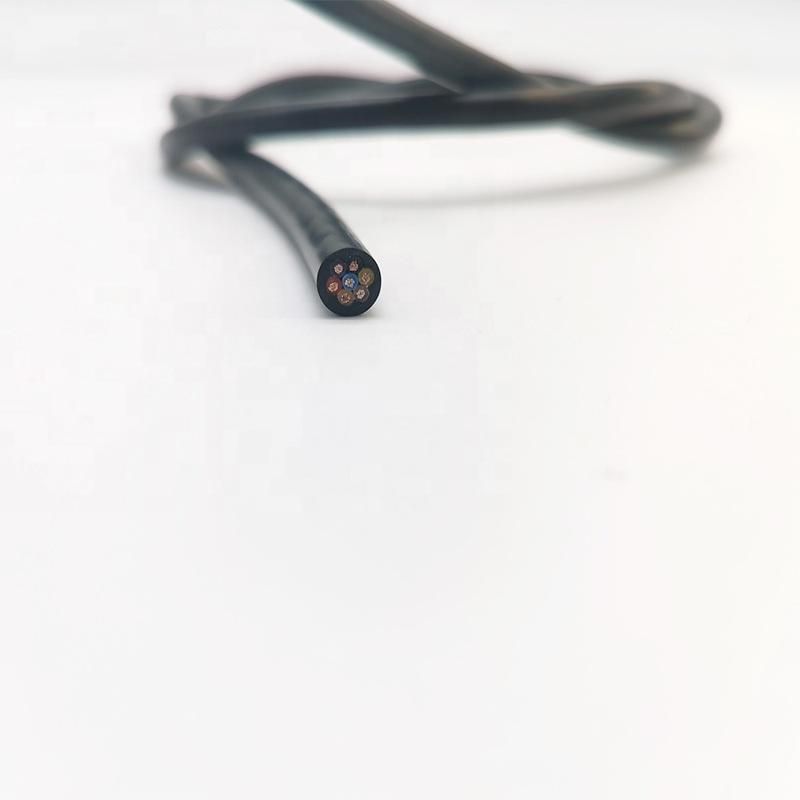

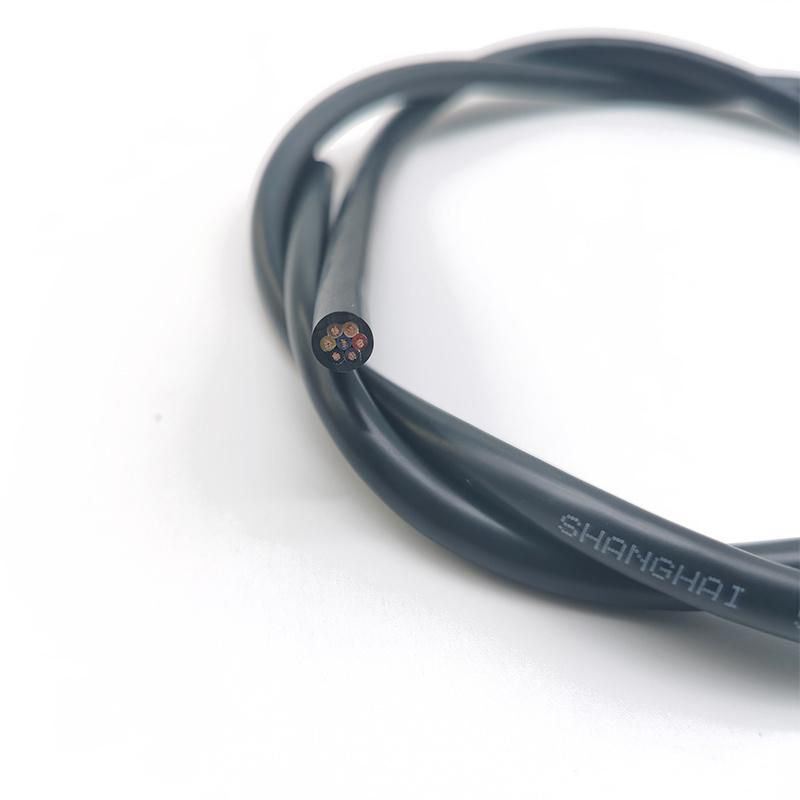

Rz1-K (AS+) Mica Cable 0, 6/1 Kv 2X1.5mm2 2X70mm2 3G/4G 1.5mm2 3X240mm2

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：XLPE
  • Material Shape：Round Wire

Base Info

  • Model NO.：RZ1-K(AS+) Mica Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemRZ1-K(AS+) Mica Cable ConductorFlexible bare copper wiresInsulationXLPEFillerExtruded filler for multicore cablesOuter SheathHalogen free material based on a thermoplastic polyolefinCore NumberMulti-coresMaximum Conductor TemperaturesNormal operation 90ºC
Short circuit (5 seconds max.) 250ºCTesting voltage3,5 kV Operating voltage0.6/1 kVColorOptionalApplicationAdequate for non autonomous security circuits and service circuits with a centralised autonomous source (alarm circuits, signalling and emergency lighting systems, acoustic signalling, smoke extractors, water pumps for fire extinction).
These cables are recommended for all those installations in which it is necessary to keep the integrity of the circuits and equipment although they are affected directly by the fire.

It is specially indicated their use in public concurrence places (airports, museums, malls and shopping centres, schools, hospitals, cinemas, hotels, sports stadiums...), and in general, whenever an important fire risk exists or it´s required a low smoke emission and corrosive gazes in case of fire (i.e.: Railway and roadway tunnels, canalisations with bunched cables, vertical canalisations in buildings,…).
