• Model NO.：VENUS 61,3.75
• Wire Core Material：Aluminium , AAC 1350
• Certification：ISO, CCC, SGS
• Model：AAC Conductor
• Brand：Hongda
• Material：All Aluminum Conductor
• Standards：as 1531-17
• Transport Package：Drum or as Customer Require
• Specification：34.36mm2 to 673.4mm2
• Trademark：Hongda Cable
• Origin：China
• HS Code：76149000
• Production Capacity：100km,Day

Basic Info.

Model NO. VENUS 61/3.75 Wire Core Material Aluminium / AAC 1350 Certification ISO, CCC, SGS Model AAC Conductor Brand Hongda Material All Aluminum Conductor Standards as 1531-17 Transport Package Drum or as Customer Require Specification 34.36mm2 to 673.4mm2 Trademark Hongda Cable Origin China HS Code 76149000 Production Capacity 100km/Day

Product Description

AAC 1350 All Aluminium Conductor VENUS 61/3.75 AAC conductor cable

Description

Bare aluminium conductor. Made to AS 1531.

STANDARDS

National :  AS 1531

DESCRIPTION

Application

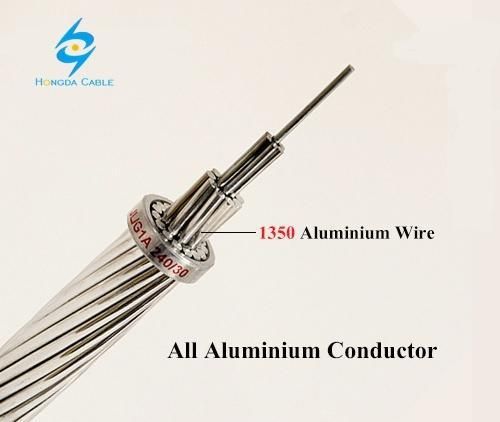

AAC - All Aluminium Conductor
AAC  aerial conductor is made of aluminium 1350. It is designed for short & medium spans with a high conductivity.




Part Number	Conductor Code	Stranding and Wire Diameter (No/mm)	Nominal Overall Diameter (mm)	Cross Sectional Area (mm2)	Approx. Mass (kg/km)	Breaking Load (kN)	Modulus of Elasticity (GPa)	Coefficient of Linear Expansion (x10-6/oC	DC Resistance (Ω/km)
AAC-7/2.50	Leo	7/2.50	7.5	34.36	94.3	5.71	65	23	0.833
AAC-7/2.75	Leonids	7/2.75	8.25	41.58	113	6.72	65	23	0.689
AAC-7/3.00	Libra	7/3.00	9	49.48	135	7.98	65	23	0.579
AAC-7/3.75	Mars	7/3.75	11.3	77.28	211	11.8	65	23	0.37
AAC-7/4.50	Mercury	7/4.50	13.5	111.3	304	16.9	65	23	0.258
AAC-7/4.75	Moon	7/4.75	14.3	124	339	18.9	65	23	0.232
AAC-19/3.25	Neptune	19/3.25	16.3	157.6	433	24.7	65	23	0.183
AAC-19/3.50	Orion	19/3.50	17.5	182.8	503	28.7	65	23	0.157
AAC-19/3.75	Pluto	19/3.75	18.8	209.8	576	31.9	65	23	0.137
AAC-37/3.00	Saturn	37/3.00	21	261.6	721	42.2	64	23	0.11
AAC-37/3.25	Sirius	37/3.25	22.8	307	845	48.2	64	23	0.094
AAC-19/4.75	Taurus	19/4.75	23.8	336.7	924	51.3	65	23	0.0857
AAC-37/3.75	Triton	37/3.75	26.3	408.5	1120	62.2	64	23	0.0706
AAC-61/3.25	Uranus	61/3.25	29.3	506.1	1400	75.2	64	23	0.0573
AAC-61/3.50	Ursula	61/3.50	31.5	586.9	1620	87.3	64	23	0.0493
AAC-61/3.75	Venus	61/3.75	33.8	673.4	1860	97.2	64	23	0.0429

Products and specifications
Current ratings are based in an ambient temperature of 30°C, a maximum conductor temperature of 75°C, rural weathered, summer noon and intensity of solar radiation 1000 W/m².



Why Choose Us ?

Quality And Safety

• Hongda Cable was founded in 1999 with almost 17 years of experience in the cable industry.

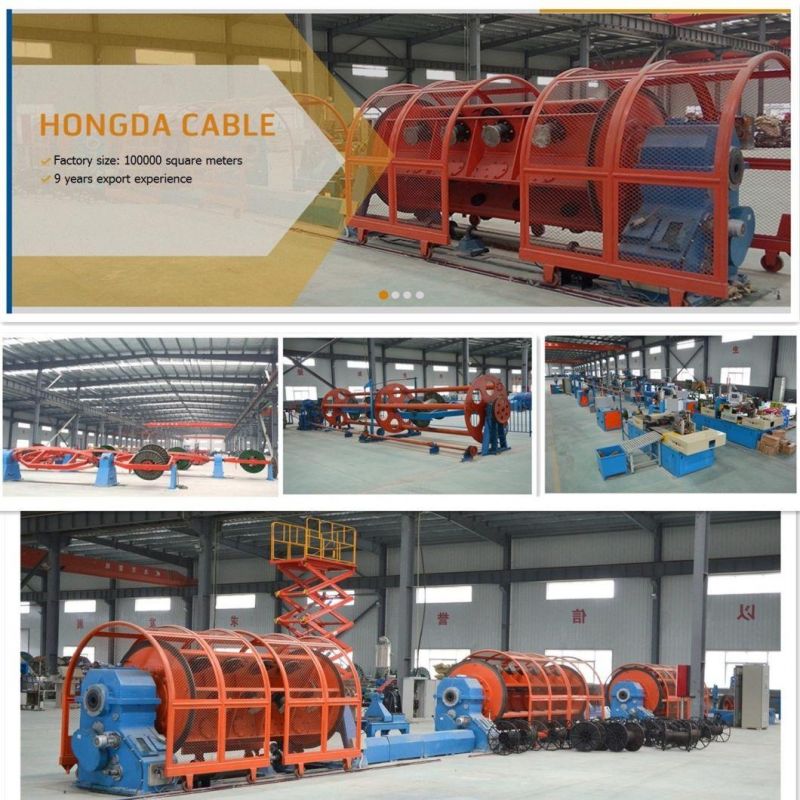

• Our manufacturing facilities are equipped with state-of-the-art technology, so we are able to meet our customers' needs for a wide range of industrial cables.
• With knowledgable engineers, rigorous quality standards and customer-centered core values, we are always ready to provide the best available products and services.
• For customers inquiring about our services, we offer product testing and sample analysis against international standards--free of charge.

Complete Inventory And Fast Delivery

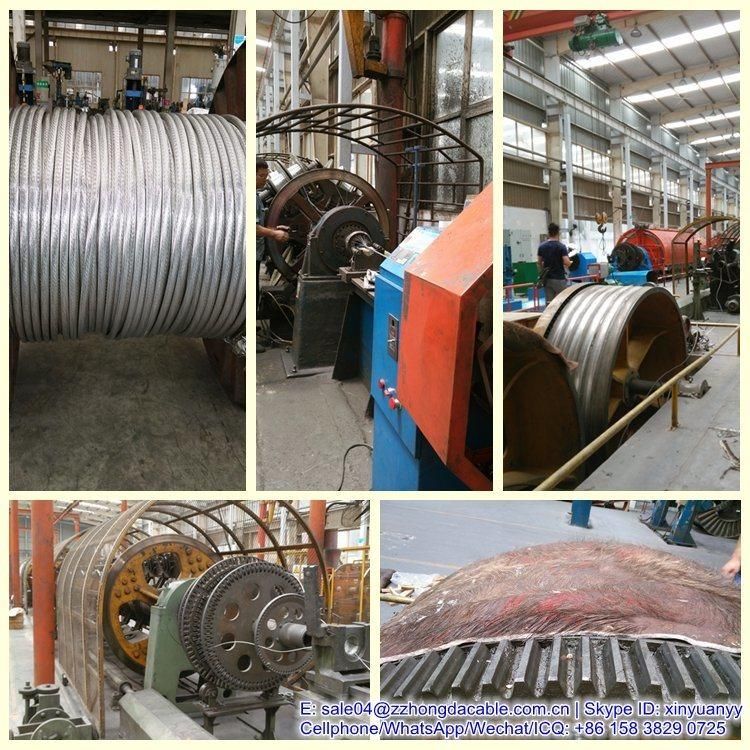

• Our integrated manufacturing and storage facilities enable us to offer flexibility in specifications and fast turnaround time.
• Providing outstanding service level, Hongda Cable will meet your requirements for both standard products from our catalog and custom solutions.

Customized Solutions And Tailored Services

• With 17 years of experience, we are proud of our industry-leading R&D center and able to meet our customers' needs.
• Hongda Cable specializes in the design, manufacturing, and distribution of special industrial cable products. We welcome any ODM inquiries.

In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Any needs or question, please contact me Mobile:+86-15838290725 , we will be more pleasure to service you.
We are looking forward to your inquiry and nice cooperation.
