ASTM B398, 399 Standard Conductores De Aleacion De Aluminio AAAC Cairo

YIFANG ELECTRIC GROUP INC.
  • Application：Overhead
  • Voltage：High Voltage Cable
  • Current：DC & AC
  • Insulation Material：Bare
  • Sheath Material：None
  • Material Shape：Round Wire

Base Info

  • Model NO.：AAAC Cairo
  • Wire Core Material：Aluminum Wire
  • Certification：ISO, CCC, CE, UL
  • Model：AAAC Cairo
  • Brand：Yifangcable
  • Code Name：Cairo
  • Material：Aluminum Alloy
  • Size：235.8mm2
  • Strands：19
  • Standard：ASTM B398,399
  • Exported Coutry：South America:Chile, Peru,etc
  • Transport Package：Wooden Drum
  • Specification：1.1m Drum
  • Trademark：Yifang Cable
  • Origin：China
  • HS Code：7614900000
  • Production Capacity：1000km,Month

Description

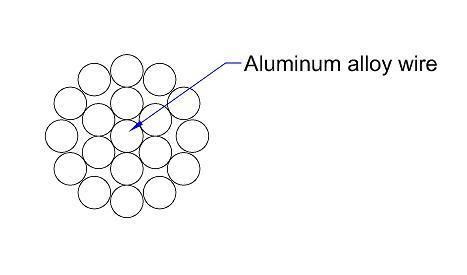

TECHNICAL DATA OF AAAC Cairo    NODESCRIPTIONUNIT DATA 1Type/ code name --Cairo2Material --Aluminium Alloy3Standards--ASTM B399,B3984Cross Section Areamm2236.45Conductor construction   Wire No.No.s19 Nominal wire dia.mm 3.986Approx. Overall Diametermm 19.97Approx. Weightkg/km651.78Min.Breaking LoadkN 69.489Max. D.C. Resistant 20ºC Ω/km 0.142ASTM B398, 399 Standard Conductores De Aleacion De Aluminio AAAC Cairo
