Conductores De Aleacion De Aluminio ASTM B398, 399 Standard AAAC Flint

YIFANG ELECTRIC GROUP INC.
  • Application：Overhead
  • Voltage：High Voltage Cable
  • Current：DC & AC
  • Insulation Material：Bare
  • Sheath Material：None
  • Material Shape：Round Wire

Base Info

  • Model NO.：AAAC Flint
  • Wire Core Material：Aluminum Wire
  • Certification：ISO, CCC, CE, UL
  • Model：AAAC Flint
  • Brand：Yifangcable
  • Code Name：Flint
  • Material：Aluminum Alloy
  • Size：375.3mm2

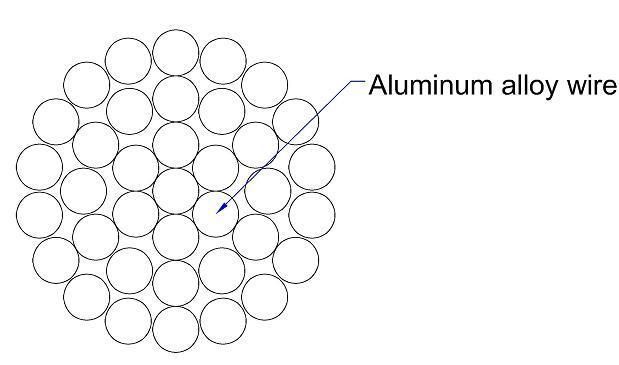

  • Strands：37
  • Standard：ASTM B398,399
  • Exported Coutry：South America:Chile, Peru,etc
  • Transport Package：Wooden Drum
  • Specification：2.2m Drum
  • Trademark：Yifang Cable
  • Origin：China
  • HS Code：7614900000
  • Production Capacity：1000km,Month

Description

TECHNICAL DATA OF AAAC Flint    NODESCRIPTIONUNIT DATA 1Type/ code name --Flint2Material --Aluminium Alloy3Standards--ASTM B399,B3984Cross Section Areamm2374.55Conductor construction   Wire No.No.s37 Nominal wire dia.mm 3.596Approx. Overall Diametermm 25.137Approx. Weightkg/km1032.68Min.Breaking LoadkN 108.219Max. D.C. Resistant 20ºC Ω/km 0.089Conductores De Aleacion De Aluminio ASTM B398, 399 Standard AAAC Flint
