• Model NO.：Service Cable
• Wire Core Material：Copper or Aluminum
• Certification：CCC, CE
• Model：Concentric Cable
• Brand：Yifang
• Sheath Color：Black
• Standard：IEC 60502

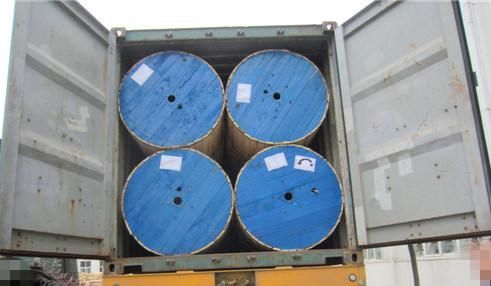

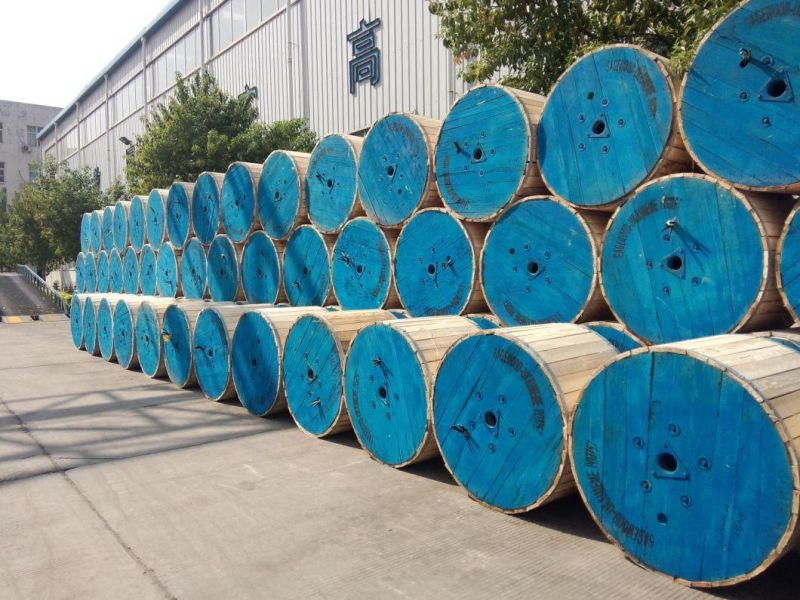

• Transport Package：Drum, Reel or According to Customers′ Request
• Specification：10mm2
• Trademark：Yifang
• Origin：China
• HS Code：8544492100
• Production Capacity：50, 000km Per Month

Basic Info.

Model NO. Service Cable Wire Core Material Copper or Aluminum Certification CCC, CE Model Concentric Cable Brand Yifang Sheath Color Black Standard IEC 60502 Transport Package Drum, Reel or According to Customers′ Request Specification 10mm2 Trademark Yifang Origin China HS Code 8544492100 Production Capacity 50, 000km Per Month

Product Description

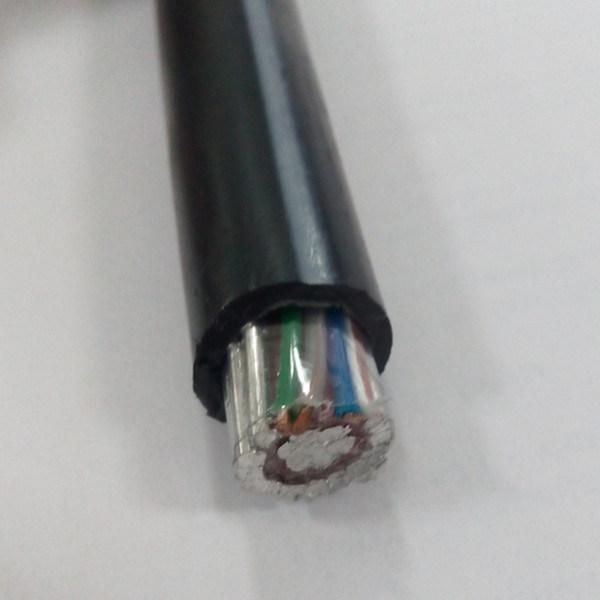

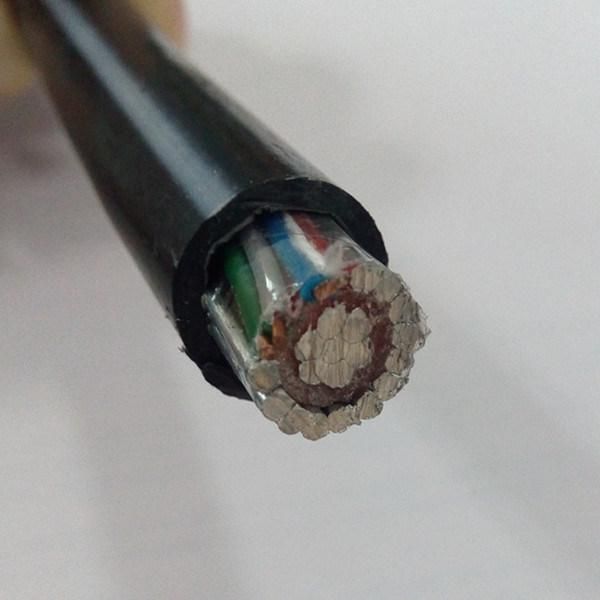

Two Core 16mm 600/1000V XLPE Insulated Al Service Cable Complete with 2X0.5 mm2 Copper Pilot Cores Concentric Cable

 Applications

The concentric cable is used as electric service entrance from the power distribution network until meter panel ,and as feeder cable from the meters panel until the panel or general distribution panel,just as it is specified in the National electric code,

This type of conductor can be used in dry and wet place,directly buried or outdoor;

It's maximum temperature of operation is 70ºC( PVC or PE insulation) or 90ºC (XLPE insulation) and it's voltage of service for all the applications is 600/1000V.



Specification

1. Conductor : Copper or Aluminum or 8000 series Aluminum Alloy

2.  Insulation: PVC or PE or XLPE

3.  Concentric neutral: Copper or Aluminum or 8000 series Aluminum Alloy

4.   Sheath: PVC or PE or XLPE

ITEM	SPECIFICATION (PARTICULARS	UNIT	Data
1	Insulation Voltage	V	600/1000
2	Conductor size	mm²	16
3	Phase Conductor material	N/A	Hard drawn 7strands Aluminium conductor -Single Core
4	Insulation Material	N/A	XLPE
5	Earth wire material type	N/A	Bare Aluminium conductor
6	Rip Chord	N/A	Nylon or as your requirement
7	Reference Standards	N/A	SANS 1507, NRS 063, IEC 60502/228 ESI 09-7
8	Phase conductor Insulation thickness	mm	1.0
	Construction (Phase conductor)
9	Structure	mm	Single core
10	Insulation Thickness	mm	1.0
11	Reference Insulation O.D	mm	7.1
	Construction (Earth Wire)
12	Structure	Numbers	14
13	Wire structure	N/A	14/1.21
	Construction (Pilot/Communication Wires)
14	Structure	mm²	2X0.5
15	Reference Insulation O.D	mm	Min.1.13
16	Conductor material	N/A	Hard drawn Aluminium conductor
17	Insulation Material	N/A	LPDE/XLPE
18	Number of conductors	Numbers	2
	Construction (Sheath)
19	Nominal Thickness	mm	1.0
20	Reference Insulation O.D	mm	11.5
21	Sheath Material	N/A	Black LDPE
	Insulation material colours
22	Phase conductor	N/A	Red
23	Pilot wires (04)	N/A	Red, Blue
24	Sheath	N/A	Black
	Performance (Electrical Characteristics)
25	Phase Conductor - Maximum resistance at		≤1.91
