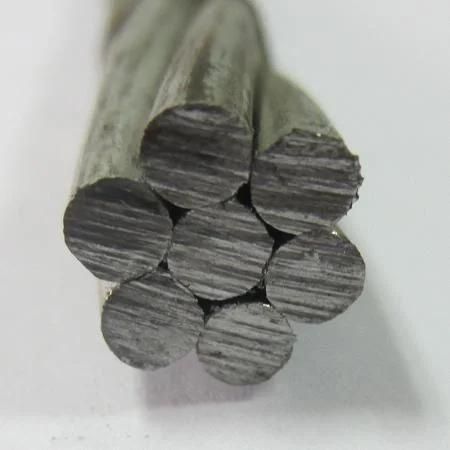

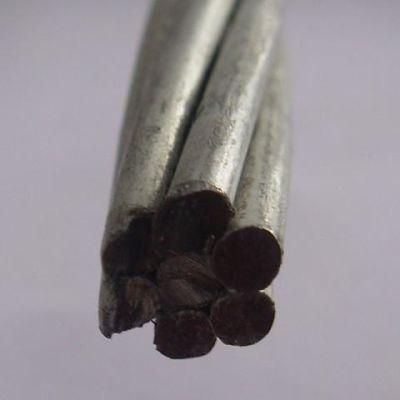

Stay Wire 7/4.0mm Galvanized Steel Wire Guy Wire

YIFANG ELECTRIC GROUP INC.
  • Application：Construction, Overhead, Industrial, Power Station, Computer
  • Voltage：High Voltage Cable
  • Current：DC & AC
  • Insulation Material：Bare
  • Sheath Material：None
  • Material Shape：Round Wire

Base Info

  • Model NO.：Stay Wire 7,4.0mm
  • Wire Core Material：Steel Wire
  • Certification：ISO, CCC, CE, RoHS, UL, VDE
  • Model：Stay Wire
  • Brand：Yifang
  • Type：Bare Conductor
  • Standard：BS 183
  • Transport Package：Coil or Drum
  • Specification：7,4.0mm
  • Trademark：YIFANG CABLE
  • Origin：Henan, China
  • HS Code：7312100000
  • Production Capacity：200ton Per Month

Description

 Min. Breaking load of strandGrade 1000Grade1150Grade1300mmkg/kmKNKNKN3/1.803.9 60 7.63 8.78 9.92 3/2.655.7 129 16.55 19.03 21.51 3/3.257.0 194 24.89 28.62 32.35 3/4.008.6 294 37.70 43.35 49.01 4/1.804.3 79 10.18 11.71 13.23 4/2.656.4 172 22.06 25.37 28.68 4/3.257.8 259 33.18 38.16 43.14 4/4.009.7 392 50.27 57.81 65.35 5/1.504.1 69 8.84 10.16 11.49 5/1.804.9 99 12.72 14.63 16.54 5/2.657.2 215 27.58 31.71 35.85 5/3.258.8 324 41.48 47.70 53.92 5/4.0010.8 490 62.83 72.26 81.68 7/1.604.8 110 14.07 16.19 18.30 7/1.805.4 139 17.81 20.48 23.16 7/2.006.0 172 21.99 25.29 28.59 7/2.367.1 239 30.62 35.21 39.81 7/2.658.0 301 38.61 44.40 50.19 7/3.009.0 386 49.48 56.90 64.32 7/3.159.5 426 54.55 62.73 70.92 7/3.259.8 453 58.07 66.78 75.49 7/3.6511.0 571 73.24 84.23 95.22 7/4.0012.0 686 87.96 101.16 114.35 7/4.2512.8 775 99.30 114.20 129.10 7/4.7514.3 968 124.04 142.65 161.26 19/1.608.0 298 38.20 43.93 49.66 19/2.0010.0 466 59.69 68.64 77.60 19/2.5012.5 727 93.27 107.26 121.25 19/3.0015.0 1048 134.30 154.45 174.59 19/3.5517.8 1467 188.06 216.27 244.48 19/4.0020.0 1862 238.76 274.58 310.39
Packaging & Shipping:

We have different package choice for all sizes

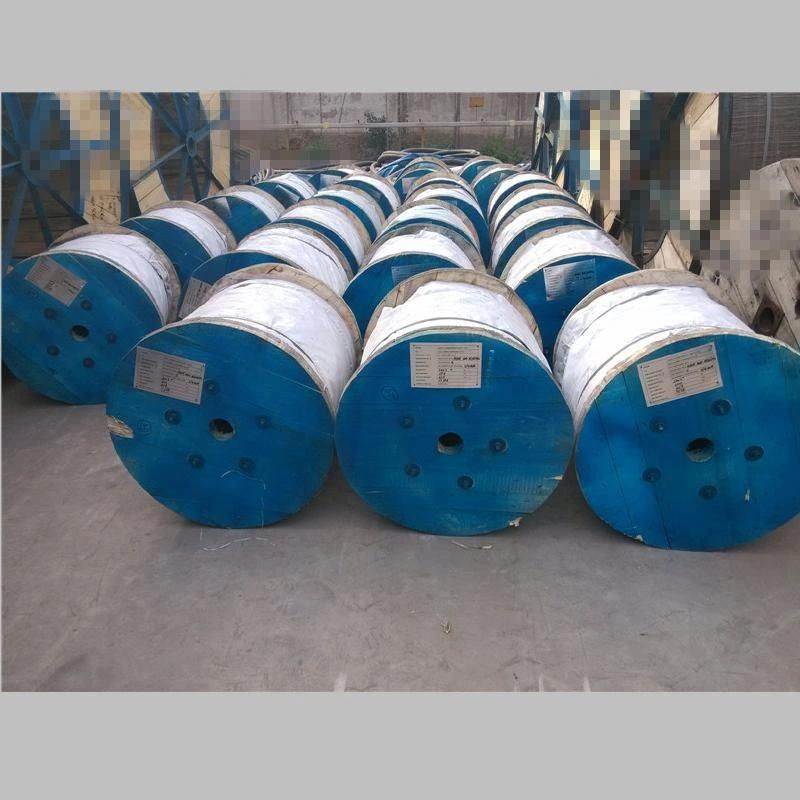

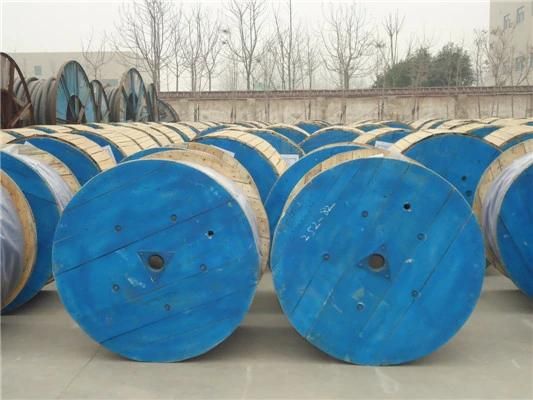

Coil Type, Wooden Spool Type, Iron Spool Type

Please let me know your application, in order to provide suggestions on package type
