H05rr-F/H07rr-F Power and Control Cable for Handheld Devices Flame-Retardant Electric Wire Household Rubber Cable

Tianjin Feiya Electric Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Overhead, Heating, Underground
  • Conductor Material：Copper
  • Sheath Material：Epr
  • Insulation Material：Epr

Base Info

  • Model NO.：H05RR-F,H07RR-F
  • Material Shape：Round Wire
  • Range of Application：Flame Retardant
  • Certification：ISO9001, CE, UL, CCC, RoHS, VDE
  • Brand：Feiya
  • Color：Black Red Yellow, According to Voltage Level
  • Whether It Is Environmentally Friendly：Yes
  • Whether Quality Inspection：Provide Inspection Certificate
  • Standard：Customized According to Specified National Standar
  • OEM/ODM：Accepted
  • Core：Single Core and Multicore
  • Transport Package：Standard Export Packaging
  • Specification：International General Specifications
  • Trademark：Fengda
  • Origin：Tianjin, China(Mainland)
  • HS Code：8544492100
  • Production Capacity：5000000km,Year

Description

Introduction1Can be customized according to requirements.2Independent brand recruitment agency.3High quality, ISO 9001, CCC, CE, RoHS certified.4ODM&OEM is available.
H05rr-F/H07rr-F Power and Control Cable for Handheld Devices Flame-Retardant Electric Wire Household Rubber Cable
ApplicationVoltage Rating:Working: 300/500V, Test: 2000V.Temperature Rating:-25°C to +60°CBending Radius: Flexing:15 x cable diameterStatic:6 x cable diameterCurrent Rating:H05RR-F Refer to IEE Regs Table 4HF3A&BConductor Stranding:To IEC 60228 Class 5 & VDE 0295 Class 5
  G = With Green/Yellow   X = Without Green/Yellow

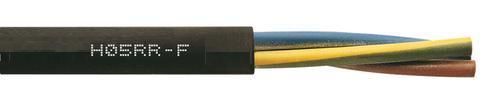

Construction

Conductor
Class 5 flexible copper conductor
Insulation
Rubber compound
Outer Sheath
Rubber compound

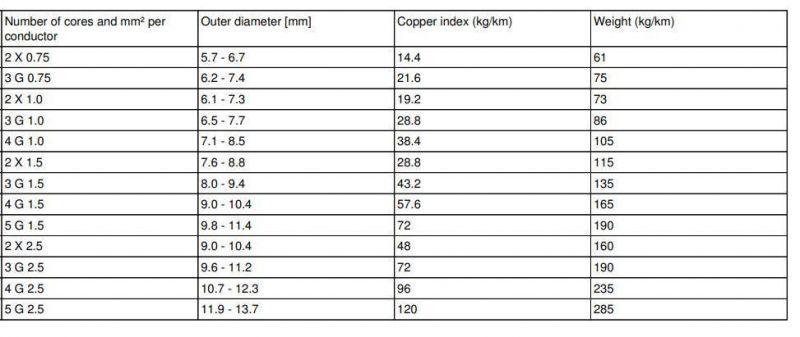

Type of the cables
