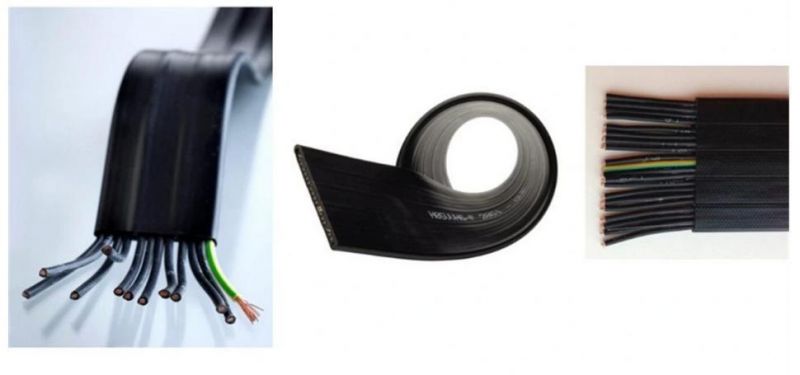

H05vvh6-F PVC Insulated/Sheathed Flexible Control Cable Used in Conveyor and Hoist Equipment Flat Elevator Cable Festoon Power Cable
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead, Underground
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：PVC
Base Info
- Model NO.：H05vvh6-F YVVF
- Material Shape：Flat Wire
- Range of Application：Flame Retardant
- Certification：ISO9001, CE, CCC, RoHS, VDE
- Brand：Feiya
- Color：Black Red Yellow, According to Voltage Level
- Whether It Is Environmentally Friendly：Yes
- Whether Quality Inspection：Provide Inspection Certificate
- Standard：Customized According to Specified National Standar
- OEM/ODM：Accepted
- Core：Single Core and Multicore
- Transport Package：Standard Export Packaging
- Specification：International General Specifications
- Trademark：Fengda
- Origin：Tianjin, China(Mainland)
- HS Code：8544492100
- Production Capacity：100000,Day
Description

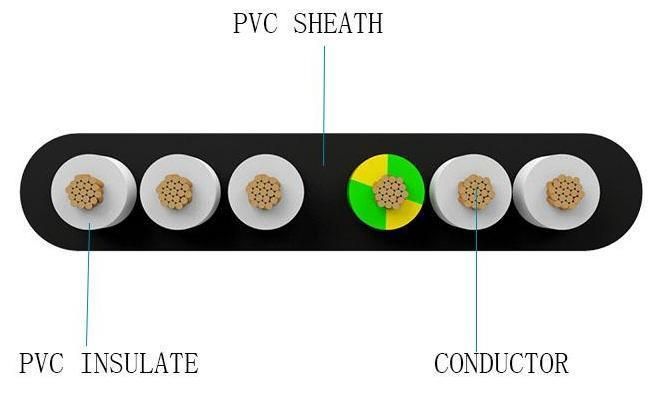

PVC Insulated and PVC sheated Flexible cables
Application

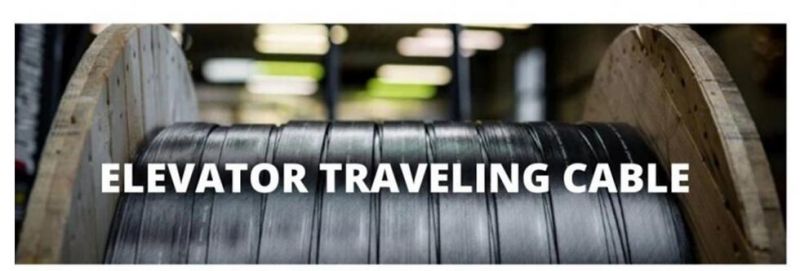

H05VVH6-F is a harmonized, flexible, 300/500 volt, PVC flat festoon power and control cable. Mainly used as a trailing cable for crane installations, floor conveyor systems, elevator control cables, shelf control units and in supply lines for moving machine parts. The flat construction allows these cables to be stacked for applications where space is at a minimum and require smaller bending radius over that of round cables. Suitable for installations in dry and damp rooms. The outer PVC jacket is extensively resistant to oil, fat, acid and lye.
Technical Characteristics
| WORKING VOLTAGE | 300/500V (H05VVH6-F) |
|---|---|
| TEST VOLTAGE | 2KV (H05VVH6-F) |
| BENDING RADIUS | 10 × cable Ø |
| FLEXING TEMPERATURE | - 5 ºC to + 70 ºC |
| STATIC TEMPERATURE | -40 ºC to +70 ºC |
| FLAME RETARDANT | Test class B according to VDE 0472 part 804, IEC 60332-1 |
| INSULATION RESISTANCE | 20 MΩ x km |
DIMENSIONS
| NO. OF | NOMINAL CROSS | NOMINAL DIAMETER | NOMINAL THICKNESS | CABLE DIMENSIONS | NOMINAL |
| CORES | SECTIONAL AREA | OVER CONDUCTOR | OF INSULATION | WIDTH | WEIGHT |
| mm2 | mm | mm | mm | kg/km |
| 6 | 0.75 | 1.3 | 0.6 | 72 | 118 |
| 12 | 0.75 | 1.3 | 0.6 | 128 | 227 |
| 18 | 0.75 | 1.3 | 0.6 | 184 | 336 |
| 20 | 0.75 | 1.3 | 0.6 | 208 | 376 |
| 24 | 0.75 | 1.3 | 0.6 | 248 | 450 |
