PVC Insulated Copper Household Wiring Electrical Earth Buliding Wire Cable
Henan Hongda Cable Co., Ltd.- Type：Insulated
- Conductor Type：Solid,Strand
- Application：Overhead, Heating, Underground
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：No
Base Info
- Model NO.：Electrical Earth wire Cable
- Material Shape：Round Wire
- Range of Application：Indoor
- Certification：ISO9001, CE, CCC
- Brand：Hongda
- Voltage：300,500V, 450,750V
- Color：Black, Brown, Grey, Blue, Green,Yellow
- Max.Operating Temperature：70, 90, 105 Degree
- Standard：IEC 60227, BS 6004, VDE0281
- Core：Copper Solid or Strand
- Manufacture：Yes
- Sample：Yes
- Product Name：H05V-U, H07V-U, H07V-R, BS6004 6491X, BV, Bvr
- Packing：100 Meter,Roll or as Per Requirement
- Transport Package：Plastic Film, Coil
- Specification：1.5-300mm2
- Trademark：Hongda
- Origin：China, Henan
- Production Capacity：30000km,Per Months
Description

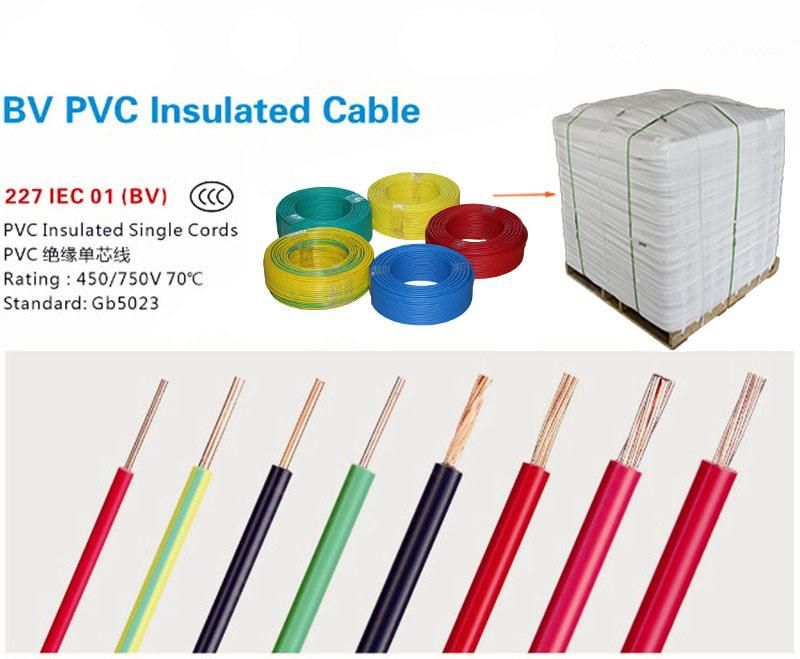

H05V-U, H07V-U, H07V-R, BS6004 6491X, BV, BVRVoltage Rate 300/500V, 450/750V Range of Nominal cross section: 0.75 mm2 ~ 630 mm2 Application These cables are used for general purpose, as building wire for power, lighting and control wire to electrical appliances, suitable for use in conduit and for fixed, protected installation. Standard IEC 60227, BS 6004, VDE0281, GB/T 5023, JB/T8734 Constructions Conductor: Class 1/2 Plain annealed copper wires, solid or stranded
Insulation: PVC
Core color: Red, Brown, Grey, Black, Blue, Green/Yellow or others on request Max. Operating Temperature 70°C, can be 90°C,105°C as per requirement Packing 100 meter/roll or as per requirement Production Capacity 100 kilometer/ day MOQ 10000 meters for small size, 5000 meters for middle size, 1000 meters for big size Delivery time 10~15 working days Remark The cable can be of flame retardance, fire resistance and other property
Technical Information:
1. U0 /U: 300/500V,450/750V
2. Standard Applied: IEC 60227,BS 6004,VDE0281,GB/T 5023,JB/T8734
3. Max.Operating Temperature: 70°C,can be 90°C,105°C as per requirent
4. Conductor:Class 1/2 Plain Annealed copper wire,solid or stranded
5. Insulation:PVC
6.Cores:single core
7.Range of Nominal cross section: 0.75~240sqmm
8. Jacket: without Jacket
9. Color: Black,Brown,Grey,Blue,Green/Yellow or orthers on request
10.Flame ratardance,fire resistance and other property can be available
11.Packing:100 meter/roll or as per requirement
12. Certification: ISO9001,ISO14001,OHSMS18001,CE,CB,CCC,SAA,etc.
13.OME can be available
14.BV cables have very good sales over the world,enjoy ing a very good reputation based on top quality,most competitive price and best service.
Parameter of bv/bvr cable
Conductor Resistance at 20°CMin insulated resistance at 70MΩ/KM Weight Kg/km Cu Al Cu Al 1.5 1/1.38 0.7 3.3 12.1 - 0.011 19.2 - 1.5 7/0.52 0.7 3.5 12.1 - 0.010 20.6 - 2.5 1/1.78 0.8 3.9 7.41 11.8 0.010 30.8 15.0 4 1/2.25 0.8 4.4 4.61 7.39 0.0085 45.5 21.0 6 1/2.76 0.8 4.9 3.08 4.91 0.0070 65.0 29.0 10 7/1.35 1.0 7.0 1.83 3.08 0.0065 110.0 52.0 16 7/1.7 1.0 8.0 1.15 1.91 0.0050 170.0 70.0 25 7/2.14 1.2 10.0 0.727 1.20 0.0050 270.0 110.0 35 7/2.52 1.2 11.5 0.524 0.868 0.0040 364.0 150.0 50 19/1.78 1.4 13.0 0.387 0.641 0.0045 5000.0 200.0 70 19/2.14 1.4 15.0 0.268 0.443 0.0035 688.0 269.0 95 19/2.52 1.6 17.5 0.193 0.320 0.0035 953.0 360.0 120 37/2.03 1.6 19.0 0.153 0.253 0.0032 1168.0 449.0 150 37/2.25 1.8 21.0 0.124 0.206 0.0032 1466.0 551.0 185 37/2.52 2.0 32.5 0.099 0.164 0.0032 1808.0 668.0
BV/BVR Cable data 2:
All the goods are full meter and working life are 25 years!
Company Information
BV cable factory and worshop corner
solar cable have one big workshop about 10,000m2, our factory is about 61,081m2 with register capital about 540 million. 700 stuff and 40 engineer. every step is to make sure the delivery time and quality!
Packaging & Shipping
BV wire packing, we can also make it as your need for that we have two professional wooden engineer
Inspection machine
BV cable six inspection machine
We inspect every product before deliverying the goods to ensure the quality!
Contact us
Looking forward to cooperation with you.If you have any question or need our certification and sample.Pls contact me freely.You can talk with me by Email or chat software.
Telphone: +86 15039132763
Insulation: PVC
Core color: Red, Brown, Grey, Black, Blue, Green/Yellow or others on request
Technical Information:
1. U0 /U: 300/500V,450/750V
2. Standard Applied: IEC 60227,BS 6004,VDE0281,GB/T 5023,JB/T8734
3. Max.Operating Temperature: 70°C,can be 90°C,105°C as per requirent
4. Conductor:Class 1/2 Plain Annealed copper wire,solid or stranded
5. Insulation:PVC
6.Cores:single core
7.Range of Nominal cross section: 0.75~240sqmm
8. Jacket: without Jacket
9. Color: Black,Brown,Grey,Blue,Green/Yellow or orthers on request
10.Flame ratardance,fire resistance and other property can be available
11.Packing:100 meter/roll or as per requirement
12. Certification: ISO9001,ISO14001,OHSMS18001,CE,CB,CCC,SAA,etc.
13.OME can be available
14.BV cables have very good sales over the world,enjoy ing a very good reputation based on top quality,most competitive price and best service.
Parameter of bv/bvr cable
Conductor Resistance at 20°C
BV/BVR Cable data 2:
| Norminal Sectional area mm2 | Conductor No/Dia.mm | Nominal Insulated thick mm | Max overall Dia.mm | Conductor Resistance at 20°C | Min insulated resistance at 70MΩ/KM | Weight Kg/km |
| 2.5 | 9/0.41 | 0.8 | 4.2 | 7.41 | 0.011 | 33.0 |
| 4 | 19/0.52 | 0.8 | 4.8 | 4.61 | 0.009 | 48.0 |
| 6 | 19/0.64 | 0.8 | 5.6 | 3.08 | 0.0084 | 68.0 |
| 10 | 49/0.64 | 1.0 | 7.6 | 1.83 | 0.0072 | 115.0 |
| 16 | 49/0.64 | 1.0 | 8.8 | 1.15 | 0.0062 | 176.0 |
| 25 | 98/0.58 | 1.2 | 11.0 | 0.727 | 0.0058 | 272.0 |
| 35 | 133/0.58 | 1.2 | 12.5 | 0.524 | 0.0052 | 384.0 |
| 50 | 133/0.68 | 1.4 | 16.5 | 0.387 | 0.0051 | 510.0 |
| 70 | 189/0.68 | 1.4 | 16.5 | 0.268 | 0.0045 | 714.0 |
| 95 | 259/0.68 | 1.0 | 19.5 | 0.139 | 0.0035 | 965.0 |
| 120 | 259/0.76 | 1.8 | 22.0 | 0.153 | 0.0032 | 1210.0 |
All the goods are full meter and working life are 25 years!
Company Information
BV cable factory and worshop corner
solar cable have one big workshop about 10,000m2, our factory is about 61,081m2 with register capital about 540 million. 700 stuff and 40 engineer. every step is to make sure the delivery time and quality!
Packaging & Shipping
BV wire packing, we can also make it as your need for that we have two professional wooden engineer
Inspection machine
BV cable six inspection machine
We inspect every product before deliverying the goods to ensure the quality!
Contact us
Looking forward to cooperation with you.If you have any question or need our certification and sample.Pls contact me freely.You can talk with me by Email or chat software.
Telphone: +86 15039132763
