ABC-BS XLPE Insulated Bundled Overhead Line Overhead Power Lines

Henan Hongda Cable Co., Ltd.
  • Application：Overhead, Overhead Power Lines
  • Voltage：Low and Medium Voltage Cable
  • Current：AC Cable
  • Insulation Material：XLPE
  • Sheath Material：Crosslinking
  • Material Shape：Round Wire

Base Info

  • Model NO.：overhead lines
  • Wire Core Material：Aluminum
  • Certification：ISO, CCC, SGS
  • Model：Asxsn Cables
  • Brand：Hongda
  • Standard：IEC, NFC33 209, VDE 0276
  • Insulation：XLPE or Polyethylene
  • Operating Voltage：1kv
  • Operating Temperature：Max 65c
  • Transport Package：Wooden Drum or as Customer Requirement
  • Specification：6mm2 to 120mm2
  • Trademark：Hongda Cable
  • Origin：China
  • HS Code：8544492100
  • Production Capacity：1200km,Month

Description

ABC-BS XLPE Insulated Bundled Overhead Line Overhead Power Lines1. ConductorAluminium conductor with increased breaking load, round stranded compressed (RM)2. InsulationCore insulation (XLPE black, UV-resistant); 2 or 4 cores of equal cross section are stranded together in left hand lay, additionaly 1 core of reduced cross section can be costranded
  • Cable sizeInsulation ThicknessApprox Maximum DiameterApprox. Net. WeightStandard LengthPhaseNeutral / MessengerPublic LightingPhaseNeutral/MessengerPublic Lightingmm2mmmmmmmmmmmmkg/kmm2x25+251.41.4-10.010.010.03385002x35+251.61.4-11.210.010.03945002x50+351.61.6-12.611.211.25265002x70+501.81.6-15.412.612.67605002x95+702.01.8-17.015.415.49755003x25+251.41.4-10.010.010.04525003x35+251.61.4-11.210.010.05375003x50+351.61.6-12.611.211.27175003x70+501.81.6-15.412.612.610575003x95+702.01.8-17.015.415.413605003x25+25+2x161.41.41.210.010.08.16025003x35+25+2x161.61.41.211.210.08.16875003x50+35+2x161.61.61.212.611.28.18675003x70+50+2x161.81.61.215.412.68.112075003x95+70+2x162.01.81.217.015.48.115105003x25+25+161.41.41.210.010.08.15275003x35+25+161.61.41.211.210.08.16125003x50+35+161.61.61.212.611.28.17925003x70+50+161.81.61.215.412.68.111325003x95+70+162.01.81.217.015.48.11435500
    *Further information about rating factor for certain cable arrangement can be found on supplementary technical information.

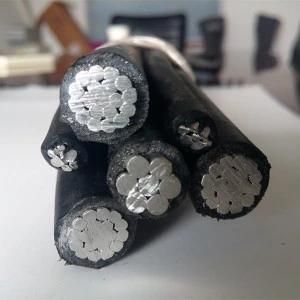

     ABC-BS XLPE Insulated Bundled Overhead Line Overhead Power LinesABC-BS XLPE Insulated Bundled Overhead Line Overhead Power Lines

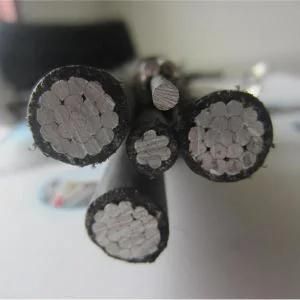

    ABC-BS XLPE Insulated Bundled Overhead Line Overhead Power Lines

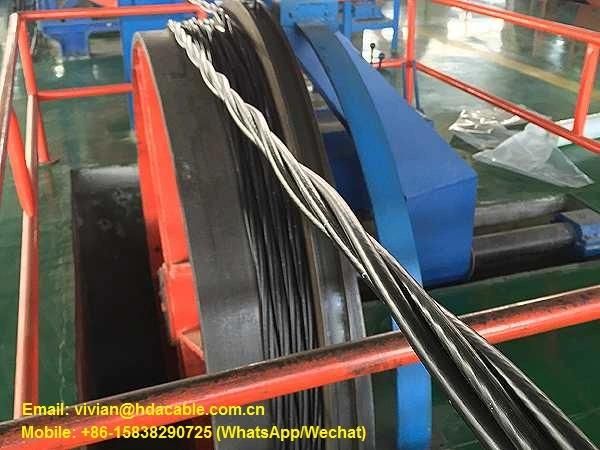

    ABC-BS XLPE Insulated Bundled Overhead Line Overhead Power Lines
