• Model NO.：Low Fire Hazard Cables
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, SGS
• Model：Rhz1-Ol
• Brand：Hongda
• Conductor：Class 2 Stranded Aluminium Conductor
• Inner Semi-Conductive Layer：Semi-Conductive Material
• Insulation：XLPE (Cross-Linked Polyethylene)
• Outer Semi-Conductive Layer：Semi-Conductive Material
• Screen：Copper Wires
• Sheath：PVC (Polyvinyl Chloride)
• Transport Package：Steel & Wooden Drum
• Specification：16mm2 to 400mm2
• Trademark：Hongda Cable
• Origin：Made in China
• HS Code：8544601200
• Production Capacity：200km,Month

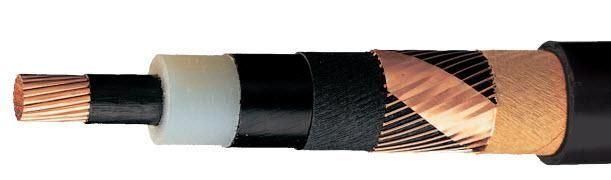

CONDUCTORAluminium / Copper, semi-rigid class 2INSULATIONCross-linked polyethylene (XLPE)SCREENCopper wire helicoidal layerSHEATHLSOH compoundVOLTAGE18/30 kVSTANDARDSHD 620-10E - Design and testing standard
IEC 60332-1-2 - Flame retardant (single wire)
IEC 60332-3-23 - Fire retardant (bunched wires) cat. B
IEC 60754 - Halogen free. Low acidity and corrosivity of evolved gases
IEC 61034 - Low opacity of evolved fumes
APPLICATIONS AND MAIN CHARACTERISTICS
Cables for power distribution for high voltage installed in air.

Abrasion and tear-resistant jacket. Easier slide. Shielding with lengthways shutter against water penetration.
Low fire hazard cable: flame and fire retardant, halogen-free, low acidity and corrosiveness of gases and low opacity of smoke emitted during combustion.

Electrical Characteristics
DimensionsNo. of CoresNominal Cross Sectional AreaNominal Weightmm²(Cu) kg/km(AL) kg/km115034502570118538752755124045453080130052403360140061753785150072904195163088604875
Why Choose Us ?
1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10.We have a good reputation in the overseas


FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: 30% T/T in advance,70% T/T balance before shipment


4. PACKAGE:
