• Model NO.：Flexible Cable
• Material Shape：Round Wire
• Range of Application：Heating or Equipment or Building
• Certification：ISO9001, CE, UL, CCC, KEMA
• Brand：Yifang
• Conductor：Annealed Multistrand Copper Wire
• Cores Number：1~5
• Colour：White,Black,Brown,Red,Blue,Yellow,Green,etc
• Standard：IEC 60227
• Outer Sheath Color：Black or White
• Insulatin：PVC
• Transport Package：Coil, Drum, Pallet
• Specification：0.75mm2~50mm2
• Trademark：Yifang cable
• Origin：Zhengzhou, Henan, China
• HS Code：8544492100
• Production Capacity：5000km Per Month

Basic Info.

Model NO. Flexible Cable Material Shape Round Wire Range of Application Heating or Equipment or Building Certification ISO9001, CE, UL, CCC, KEMA Brand Yifang Conductor Annealed Multistrand Copper Wire Cores Number 1~5 Colour White,Black,Brown,Red,Blue,Yellow/Green,etc Standard IEC 60227 Outer Sheath Color Black or White Insulatin PVC Transport Package Coil, Drum, Pallet Specification 0.75mm2~50mm2 Trademark Yifang cable Origin Zhengzhou, Henan, China HS Code 8544492100 Production Capacity 5000km Per Month

Product Description

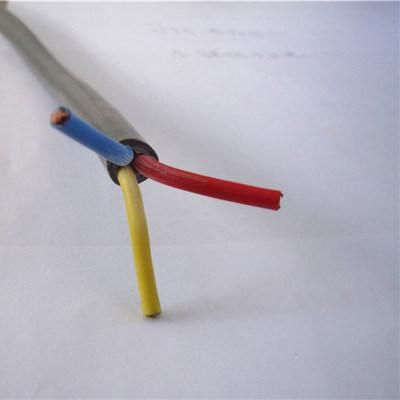

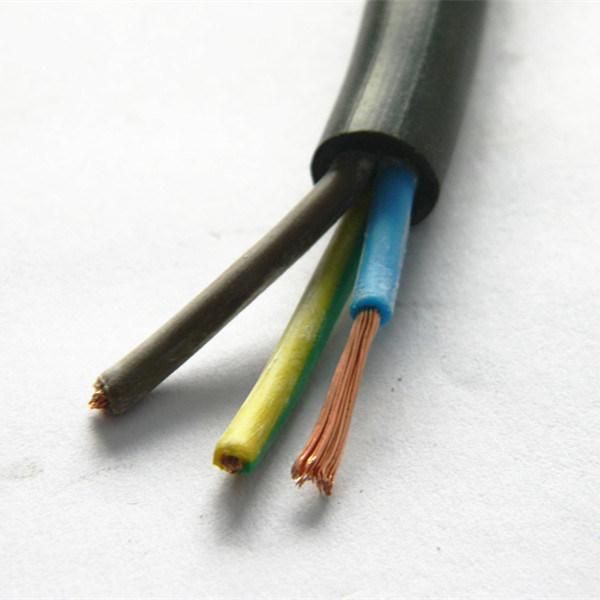

Multicore 3x1.5 4x2.5 PVC Insulated Copper Flexible Electrical Wires

Structure:


Bare copper conductor---Stranding to BS6360 class 5 or IEC60288 Class 5
PVC insulation---PVC core insulatio to BS 7655
PVC sheath---PVC outer jacket TM2 to BS 7655

Core Identification:

2 cores: Blue, Brown
3 cores: Green/Yellow, Brown, Black, Grey
4 cores: Green/Yellow, Brown, Black, Grey
5 cores: Geen/Yellow, Brouwn, Black, Grey, Blue



Tehchnical Characteristics:



Working voltage:300/500 volts
Test voltage:2000 volts
Flexing bending radius:7.5*overall diameter
Stactic bending radius: 4*overall diameter
Flexing temperature: 5°C to + 70°C
Static temperature: -40°C to + 70°C
Short circuit temperature:+160°C
Flame retardant:IEC 60332.1
Insulation resistance: 20MΩxkm
Test:Pass ROHS and 50265-2-1 flame test
Application:Use for general electric equipment internal wiring

Product Parameter

Section (mm2)	Core Structure  No./dia(mm)	Max. outer dia (mm)	Conductor resistance  at 20°C Ω/km	Min. Insulation resistance  at 70°C Ω· km
2×0.75	24/0.20	7.6	26.0	0.011
2×1.0	32/0.20	7.8	19.5	0.010
2×1.5	30/0.25	8.8	13.3	0.010
2×2.5	49/0.25	11.0	7.98	0.0090
3×0.75	24/0.20	8.0	26.0	0.011
3×1.0	32/0.20	8.4	19.5	0.010
3×1.5	30/0.25	9.6	13.3	0.010
3×2.5	49/0.25	11.5	7.98	0.0090
4×0.75	24/0.20	8.6	26.0	0.011
4×1.0	32/0.20	9.2	19.5	0.010
4×1.5	30/0.25	11.0	13.3	0.010
4×2.5	49/0.25	12.5	7.98	0.0090
5×0.75	24/0.20	9.4	26.0	0.011
5×1.0	32/0.20	11.0	19.5	0.010
5×1.5	30/0.25	12.0	13.3	0.010
5×2.5	49/0.25	14.0	7.98	0.0090
