• Model NO.：Flexible Cable
• Material Shape：Round Wire
• Range of Application：Underground or Equipment
• Certification：ISO9001, CE, CCC
• Brand：Yifang
• Conductor：Class 5 Multistrand Copper Wire
• Cores Number：1~5
• Core Colour：White,Black,Brown,Red,Blue,Yellow,Green,etc
• Jacket Color：Black, White, Grey or as Your Requirement

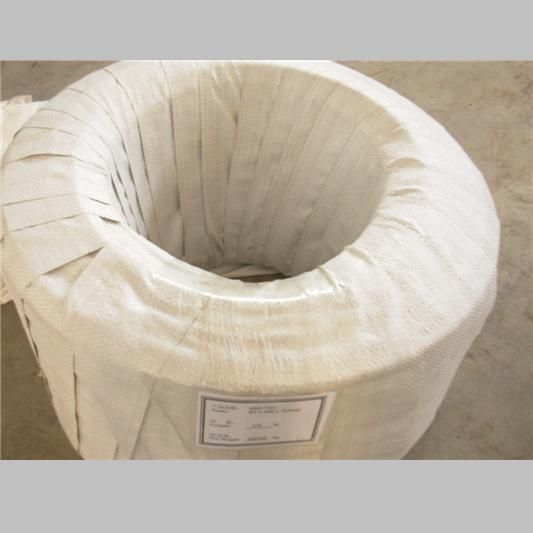

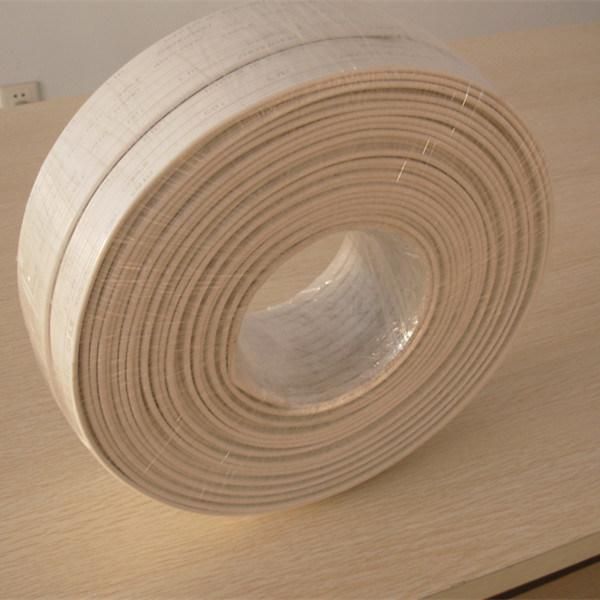

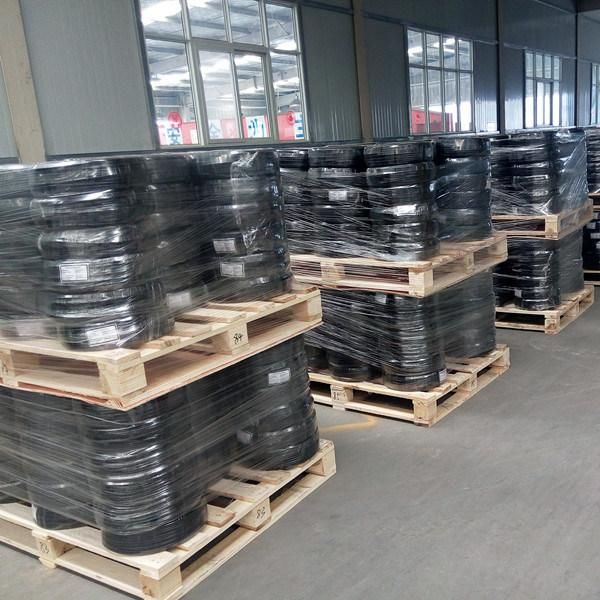

• Transport Package：Coil, Drum, Pallet
• Specification：0.75mm2~50mm2
• Trademark：Yifang cable
• Origin：Zhengzhou, Henan, China
• HS Code：8544921000
• Production Capacity：5000km Per Month

Basic Info.

Model NO. Flexible Cable Material Shape Round Wire Range of Application Underground or Equipment Certification ISO9001, CE, CCC Brand Yifang Conductor Class 5 Multistrand Copper Wire Cores Number 1~5 Core Colour White,Black,Brown,Red,Blue,Yellow/Green,etc Jacket Color Black, White, Grey or as Your Requirement Transport Package Coil, Drum, Pallet Specification 0.75mm2~50mm2 Trademark Yifang cable Origin Zhengzhou, Henan, China HS Code 8544921000 Production Capacity 5000km Per Month

Product Description

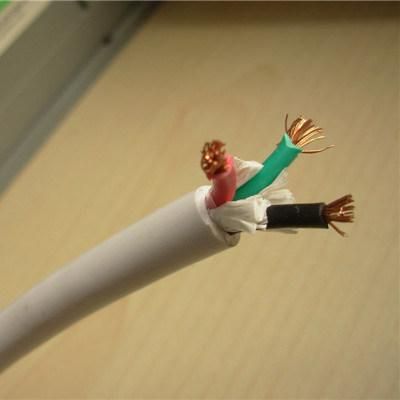

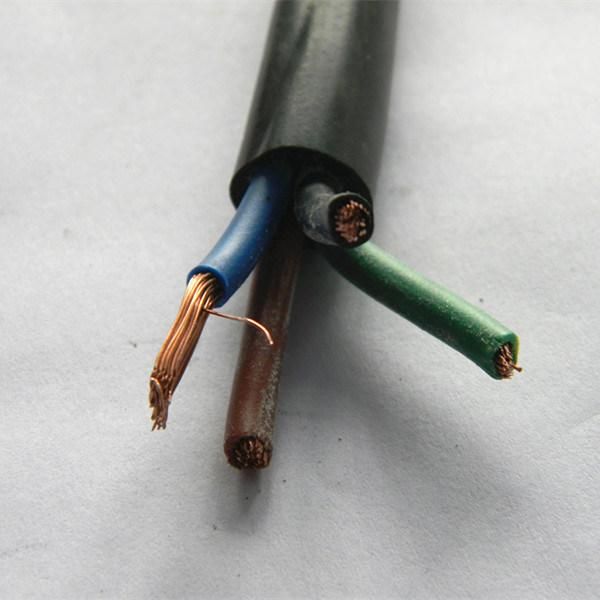

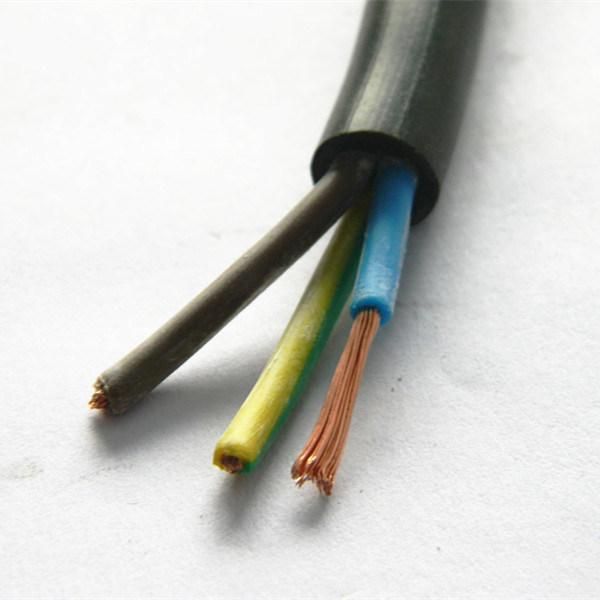

3 Core 4 Core 5 Core PVC Insulated and PVC Sheathed Flexible Cable

Structure:


Bare copper conductor---Stranding to BS6360 class 5 or IEC60288 Class 5
PVC insulation---PVC core insulatio to BS 7655
PVC sheath---PVC outer jacket TM2 to BS 7655

Core Identification:

2 cores: Blue, Brown
3 cores: Green/Yellow, Brown, Black, Grey
4 cores: Green/Yellow, Brown, Black, Grey
5 cores: Geen/Yellow, Brouwn, Black, Grey, Blue



Tehchnical Characteristics:



Working voltage:300/500 volts
Test voltage:2000 volts
Flexing bending radius:7.5*overall diameter
Stactic bending radius: 4*overall diameter
Flexing temperature: 5°C to + 70°C
Static temperature: -40°C to + 70°C
Short circuit temperature:+160°C
Flame retardant:IEC 60332.1
Insulation resistance: 20MΩxkm
Test:Pass ROHS and 50265-2-1 flame test
Application:Use for general electric equipment internal wiring
 Product Parameter

Section (mm2)	Core Structure No./dia(mm)	Max. outer dia(mm)	Conductor resistance at 20°C Ω/km	Min. Insulation resistance at 70°C Ω· km
2×0.75	24/0.20	7.6	26.0	0.011
2×1.0	32/0.20	7.8	19.5	0.010
2×1.5	30/0.25	8.8	13.3	0.010
2×2.5	49/0.25	11.0	7.98	0.0090
3×0.75	24/0.20	8.0	26.0	0.011
3×1.0	32/0.20	8.4	19.5	0.010
3×1.5	30/0.25	9.6	13.3	0.010
3×2.5	49/0.25	11.5	7.98	0.0090
4×0.75	24/0.20	8.6	26.0	0.011
4×1.0	32/0.20	9.2	19.5	0.010
4×1.5	30/0.25	11.0	13.3	0.010
4×2.5	49/0.25	12.5	7.98	0.0090
5×0.75	24/0.20	9.4	26.0	0.011
5×1.0	32/0.20	11.0	19.5	0.010
5×1.5	30/0.25	12.0	13.3	0.010
5×2.5	49/0.25	14.0	7.98	0.0090
