• Model NO.：RVOV-K
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE
• Model：Rvov-K
• Brand：Hongda
• Standard：IEC 60502, IEC60228
• Rated Voltage：0.6,1 Kv DC
• Transport Package：Drum or as Customer Require
• Specification：0.5mm2 to 35mm2
• Trademark：Hongda cable
• Origin：China
• HS Code：8544492100
• Production Capacity：900km,Month

Basic Info.

Model NO. RVOV-K Wire Core Material Bare Copper Wire Certification ISO, CCC, CE Model Rvov-K Brand Hongda Standard IEC 60502, IEC60228 Rated Voltage 0.6/1 Kv DC Transport Package Drum or as Customer Require Specification 0.5mm2 to 35mm2 Trademark Hongda cable Origin China HS Code 8544492100 Production Capacity 900km/Month

Product Description

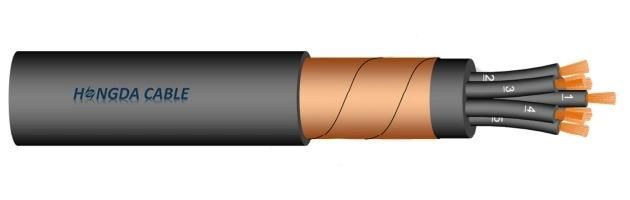

XTU/XLPE Insulation Copper tape Shield PVC sheath Electric cable RVOV-K

RVOV-K Cable

Applicable Standard:IEC-60502

DESCRIPTION

Electric cables for industrial use with rated voltage 0.6/1 kV, shielded with PVC sheath.

APPLICATION

Suitable for connecting industrial equipment.

Constructive characteristics:

• Conductor: Flexible bare copper, class 5 according to UNE-EN 60228
• Insulation: Cross linked polyethylene, type XLPE according to IEC 60502-1
• Formation: Cored stranded in layers
• Inner sheath: PVC type ST2, color black according to IEC 60502-1
• Shield: Copper tape of thickness 0.10 mm. Overlap ≥ 20%
• Outer sheath: PVC type ST2, color black according to IEC 60502-1



Technical characteristics:

• Rated voltage: 0.6 / 1 kV
• Test voltage: 3.500 V
• Operating temperature: -15ºC to +90ºC
• Maximum short-circuit temperature: 250ºC (max. 5 s)
• Bending radius: 10 Ø

Section sq.mm.	Resistance Ω/km to 20ºC	Insulation Thickness, mm	Sheath thickness, mm	Outer Ø mm.	Weight Kg/km
2×1.5	13.3	0.7	1.4	11.0	154
2×2.5	7.98	0.7	1.4	12.1	195
2×4	4.95	0.7	1.4	13.2	251
2×6	3.30	0.7	1.4	13.9	291
2×10	1.91	0.7	1.4	15.8	409
2×16	1.21	0.7	1.5	18.7	560
2×25	0.780	0.9	1.6	21.5	850
2×35	0.554	0.9	1.7	24.4	1.135
3×2.5	7.98	0.7	1.4	13.0	232
3×4	4.95	0.7	1.4	13.6	284
4×1.5	13.3	0.7	1.4	12.7	214
4×2.5	7.98	0.7	1.4	13.7	269
4×4	4.95	0.7	1.4	14.8	342
4×6	3.30	0.7	1.5	16.4	443
4×10	1.91	0.7	1.5	18.5	625
4×16	1.21	0.7	1.5	21.3	877
4×25	0.780	0.9	1.7	25.7	1.334
4×35	0.554	0.9	1.8	28.6	1.766
5×2.5	7.98	0.7	1.4	14.8	310
5×4	4.95	0.7	1.4	16.3	407
6×1.5	13.3	0.7	1.4	14.1	255
6×2.5	7.98	0.7	1.4	15.2	332
6×4	4.95	0.7	1.4	16.7	433
7×1.5	13.3	0.7	1.4	14.4	288
7×2.5	7.98	0.7	1.4	15.4	356
7×4	4.95	0.7	1.5	17.5	500
12×1.5	13.3	0.7	1.5	18.1	454
12×2.5	7.98	0.7	1.6	20.1	613
12×4	4.95	0.7	1.7	22.4	823
12×6	3.30	0.7	1.7	24.7	1.084
14×1.5	13.3	0.7	1.5	19.0	530
14×2.5	7.98	0.7	1.6	21.0	675

Packing & Shipping:

Packing:

Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.

Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

Shipping:
Port: Tianjin, Qingdao, or other ports as per your requireents.

Sea freight:
FOB/C&F/CIF quotation are all available.

*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Any needs or question, please contact me Mobile:  , we will be more pleasure to service you.
We are looking forward to your inquiry and nice cooperation.
