Overhead Conductor Sheathed Cable ABC Aluminum Stranded Wire 3X95 mm2
YIFANG ELECTRIC GROUP INC.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Aluminum
- Sheath Material：Crosslinking
- Insulation Material：XLPE
Base Info
- Model NO.：Overhead Conductor Sheathed Cable ABC
- Material Shape：Round Wire
- Range of Application：Overhead
- Certification：ISO9001, CE, UL, CCC
- Brand：Yifang

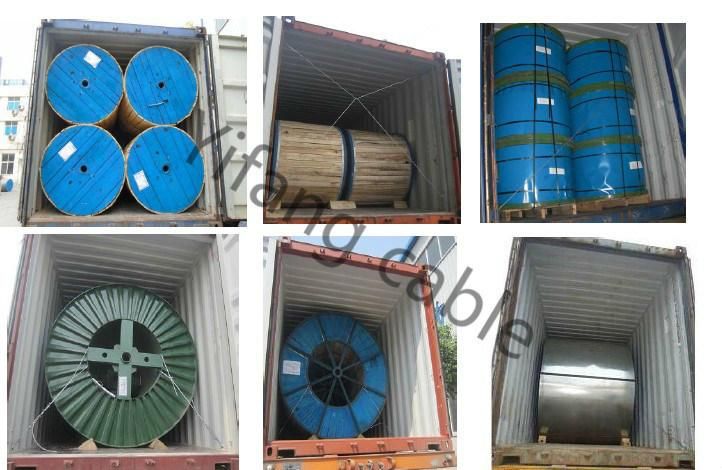

- Transport Package：Drums
- Specification：1000meter per drum
- Trademark：Yifang
- Origin：China
- HS Code：8544601200
- Production Capacity：500km Per Month
Description
Cross Section of Conductor
(mm2)
Min.Nos. of Wires for Conductor
(mm)
Insulation Thickness
(mm)
Average Max. O.D.per Single-core
(mm)
Max.Conductor Resistance at 20ºC
(Ω/km)
Min Insulated Resistance at Rated Working Temperature
(MΩ.km)
Cable Tensile Breaking Force
2x10
6
1.00
6.5x13.0
3.08
0.0067
0.67
1650
2x16
6
1.20
8.0x16.0
1.91
0.0065
0.65
2512
2x25
6
1.20
9.4x18.8
1.2
0.0054
0.54
3762
2x35
6
1.40
11.0x22.0
0.868
0.0054
0.54
5177
2x50
6
1.40
12.3x24.6
0.641
0.0046
0.46
7011
2x70
12
1.40
14.1x28.2
0.443
0.004
0.4
10354
2x95
15
1.60
16.5x33.0
0.32
0.0039
0.39
13727
2x120
15
1.60
18.1x36.2
0.252
0.0035
0.35
17339
2x150
15
1.80
20.2x40.4
0.206
0.0035
0.35
21033
2x185
30
2.00
22.5x45.0
0.164
0.0035
0.35
26732
2x240
30
2.20
25.6x51.2
0.125
0.0034
0.34
34679
4x10
6
1.00
6.5x26.0
3.08
0.0067
0.67
1650
4x16
6
1.20
8.0x32.0
1.91
0.0065
0.65
2512
4x25
6
1.20
9.4x37.6
1.2
0.0054
0.54
3762
4x35
6
1.40
11.0x44.0
0.868
0.0054
0.54
5177
4x50
6
1.40
12.3x49.2
0.641
0.0046
0.46
7011
4x70
12
1.40
14.1x56.4
0.443
0.004
0.4
10354
4x95
15
1.60
16.5x66.0
0.32
0.0039
0.39
13727
4x120
15
1.60
18.1x72.4
0.252
0.0035
0.35
17339
4x150
15
1.80
20.2x80.8
0.206
0.0035
0.35
21033
4x185
30
2.00
22.5x90.0
0.164
0.0035
0.35
26732
4x240
30
2.20
25.6x102.4
0.125
0.0034
0.34
34679
