Overhead Triplex Service Drop Aerial Bundle Cable
People's Cable Group Co., Ltd.- Application：Overhead, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：PVC,XLPE,PE
- Sheath Material：Bare
- Material Shape：Round Wire
Base Info
- Model NO.：ABC
- Wire Core Material：AAC,ACSR,AAAC
- Certification：ISO, CCC
- Model：ABC
- Brand：Rmjt
- Diameter：6-15mm
- Delivery：15days
- Standard：ASTM B-230,B-231,B-232 and B-399 IEC S-76-474
- Factory Area：300000square Meters
- Transport Package：Wooden Drum or Steel Wooden Drum
- Specification：3 cores
- Trademark：RMJT
- Origin：Henan, China
- HS Code：8544492100
- Production Capacity：50000km,Month
Description
Triplex service dropCode Name Phase conductor Bare Neutral Message Nominal Weight ( kg/km ) Allowable Ampacity Size & No.of wires Insulation Thick(mm) Nominal Diameter (mm) Size & No.of wires Rated Strength (kg) XLPE Aluminum Total ( A ) Bare OD AAAC Homarus 6-Solid 1.14 4.115 6.4 6-7 499 42 118 159 78 Minex 6-Solid 1.14 4.115 13.3 6-7 499 42 118 159 78 Cabera 6-7 1.14 4.65 6.9 6-7 499 48 118 165 78 Hippa 6-7 1.14 4.65 6.9 6-7 499 48 118 165 78 Artemia 4-Solid 1.14 5.182 7.5 6-7 499 52 162 214 103 Maria 4-7 1.14 5.89 8.2 6-7 499 60 188 247 103 Crab 4-7 1.14 5.89 8.2 6-7 499 60 162 222 103 Ludia 4-Solid 1.14 5.182 7.5 6-7 499 52 162 214 103 Prawn 4-Solid 1.14 5.182 7.5 4-7 798 52 188 240 103 Metalia 4-7 1.14 5.89 8.2 4-7 798 60 188 247 103 Bamacles 4-7 1.14 5.89 8.2 4-7 798 60 188 247 103 Solaster 2-7 1.14 7.42 9.7 4-7 798 76 258 333 136 Pagarus 2-7 1.52 7.42 10.5 4-7 798 100 258 357 136 Shrimp 2-7 1.14 7.42 9.7 2-7 1270 76 298 374 136 Lobster 2-7 1.52 7.42 10.5 2-7 1270 100 298 397 136 Encope 1-19 1.52 8.43 11.5 2-7 1270 115 347 461 158 Sanderab 1/0-7 1.52 9.35 12.4 2-7 1270 128 409 537 182 Echinus 1/0-19 1.52 9.47 12.5 2-7 1270 130 409 539 182 Gammarus 1/0-7 1.52 9.35 12.4 1/0-7 2023 128 473 601 182 Leda 1/0-19 1.52 9.47 12.5 1/0-7 2023 130 473 603 182 Crayfish 2/0-7 1.52 10.5 13.6 2-7 1270 146 487 631 210 Sipho 2/0-19 1.52 10.6 13.7 2-7 1270 147 487 634 210 Dungenese 2/0-7 1.52 10.5 13.6 2/0-7 2445 146 595 740 210 Cyclops 2/0-7 1.52 10.6 13.7 2/0-7 2445 147 595 743 210 Slug 3/0-7 1.52 11.8 14.8 1/0-7 2023 165 650 816 242 Fulgur 3/0-19 1.52 11.9 15.0 1/0-7 2023 168 650 819 242 Balanus 3/0-19 2.03 11.9 16.0 1/0-7 2023 216 650 868 242 Stonecrab 3/0-7 1.52 11.8 14.8 3/0-7 3080 165 752 917 242 Flustra 3/0-7 1.52 11.9 15.0 3/0-7 3080 168 752 920 242 Crisia 3/0-19 2.03 11.9 16.0 3/0-7 3080 216 752 969 242 Squid 4/0-7 1.52 13.3 16.3 2/0-7 2431 191 820 1011 279 Area 4/0-19 1.52 13.4 16.5 2/0-7 2431 192 820 1012 279 Bugula 4/0-19 2.03 13.4 17.5 2/0-7 2431 246 820 1066 279 Kingerab 4/0-7 1.52 13.3 16.3 4/0-7 3883 191 948 1137 279 Lepas 4/0-19 1.52 13.4 16.5 4/0-7 3883 192 948 1140 279 Cassi 4/0-19 2.03 13.4 17.5 4/0-7 3883 246 948 1194 279 ACSR Paludina 6-Solid 1.14 4.115 6.401 6-6/1 540 42 112 170 79 Voluta 6-7 1.14 4.67 6.960 6-6/1 540 48 112 176 79 Bolma 6-7 1.52 4.67 7.722 6-6/1 540 64 112 194 79 Scallop 6-Solid 1.14 5.182 7.468 6-6/1 540 52 155 225 138 Stombus 4-7 1.14 5.89 8.179 6-6/1 540 60 155 232 138 Carnea 4-7 1.52 5.89 8.941 6-6/1 540 80 155 253 138 Whelk 4-Solid 1.14 5.182 7.468 4-6/1 844 52 177 258 138 Periwinkle 4-7 1.14 5.89 8.179 4-6/1 844 60 177 263 138 Calma 4-7 1.52 5.89 8.941 4-6/1 844 80 177 284 138 Cockle 2-7 1.14 5.89 8.179 4-6/1 844 60 247 335 183 Gebia 2-7 1.52 5.89 8.941 4-6/1 844 80 247 354 183 Conch 2-7 1.14 5.89 8.179 2-6/1 1293 60 281 384 183 Uca 2-7 1.52 5.89 8.941 2-6/1 1293 80 281 405 183 Vemeths 1-7 1.52 8.33 11.379 1-6/1 1610 113 354 522 210 Atya 1-19 1.52 8.33 11.379 1-6/1 1610 113 430 524 210 Janthina 1/0-7 1.52 8.33 11.379 2-6/1 1293 113 393 549 242 Ranella 1/0-19 1.52 9.47 12.522 2-6/1 1293 130 393 566 242 Neritina 1/0-7 1.52 9.35 12.395 1/0-6/1 1987 128 448 644 242 Cenia 1/0-19 1.52 9.47 12.522 1/0-6/1 1987 130 448 646 242 Cavolinia 2/0-7 1.52 10.5 13.564 1-6/1 1610 146 496 697 279 AAC Halotis 6-Solid 1.14 4.115 6.4 6-7 255 42 110 152 78 Pike 6-7 0.76 4.67 6.2 6-7 255 31 112 143 78 Fusus 4-Solid 1.14 5.182 7.5 4-7 400 52 177 229 103 Oyster 4-7 1.14 5.89 8.2 4-7 400 76 177 237 103 Clam 2-7 1.14 7.42 9.7 2-7 612 100 281 359 136 Pyrula 1-7 1.52 8.33 11.4 1-7 744 113 356 467 158 Hyas 1-19 1.52 8.43 11.5 1-7 744 115 356 469 158 Murex 1/0-7 1.52 9.35 12.4 1/0-7 903 128 385 513 182 Purpura 1/0-19 1.52 9.47 12.5 1/0-7 903 130 385 515 182 Nasa 2/0-7 1.52 10.52 13.6 2/0-7 1139 146 566 710 210 Trophon 2/0-7 1.52 10.64 13.7 2/0-7 1139 147 566 713 210 Quahog 3/0-7 2.03 11.79 15.9 3/0-7 1379 214 713 926 242 Lone 2/0-19 2.03 11.94 16 3/0-7 1379 217 713 929 242 Melita 3/0-19 1.52 11.94 15 3/0-19 1501 168 713 881 242 Coquina 4/0-7 1.52 13.26 16.3 4/0-7 1737 191 899 1089 279 Tusk 4/0-7 2.03 13.26 17.3 4/0-7 1737 243 899 1141 279 Apus 4/0-19 2.03 13.41 17.5 4/0-7 1737 246 899 1144 279 Portunus 4/0-19 1.52 13.41 16.5 4/0-19 1823 194 899 1091 279 Chiton 266.8-19 2.03 14.88 18.9 266.8-19 2254 277 1133 1409 310 Nannynose 336.4-19 2.03 16.92 21 336.4-19 2790 321 1427 1749 330

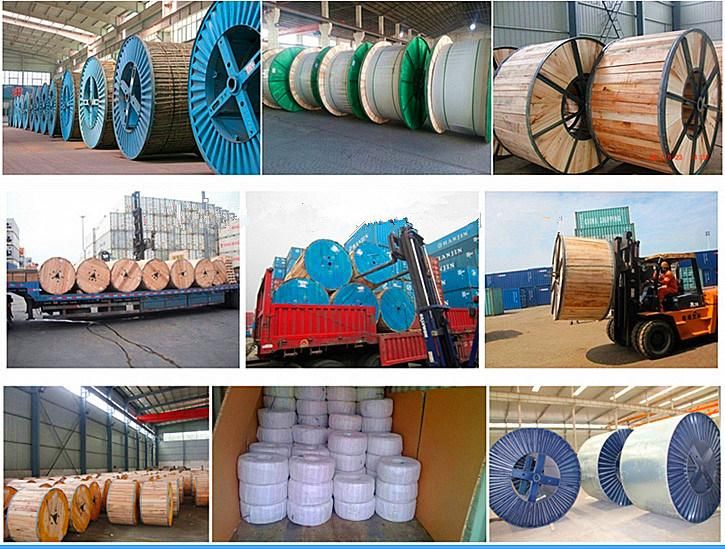

Packing in plastic reel, paper reel ,wooden drum or as customer's requirement.

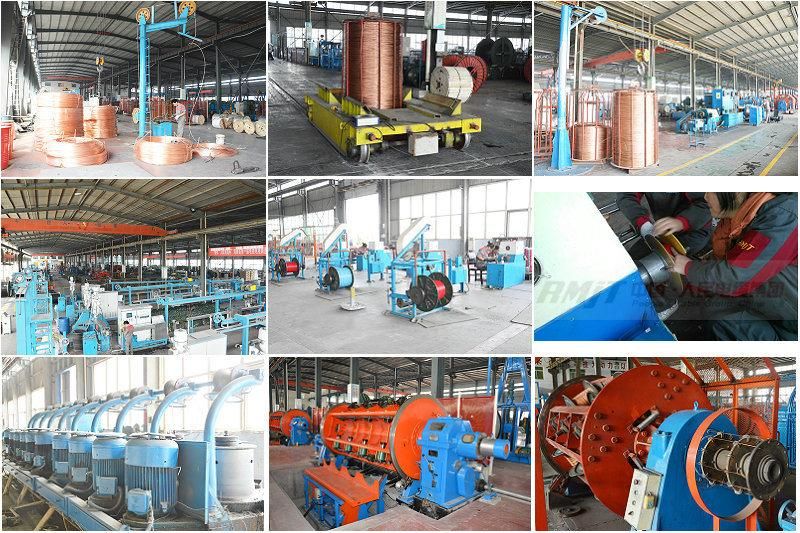

6.Our factory:
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
7.Certificate:
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
8.Customer Visit:
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
9.Contact:
Dear friends, welcome to our store. We will provide you with china wholesale market market products, excellent service and reasonable price.Please contact us if have any questions about the product. we will answer the questions carefully.At last,I wish you a pleasant purchase.
Factrory ADD:No.13th,YongDing Road, Goingyi,Zhengzhou city, Henan province, China.
